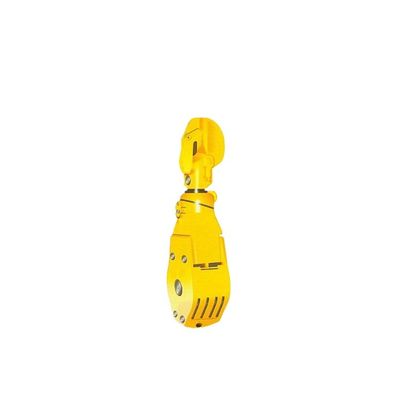

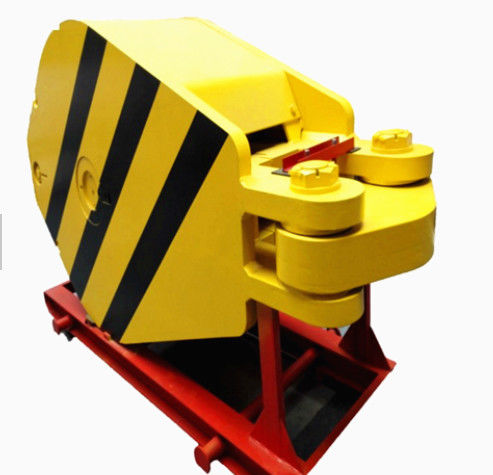

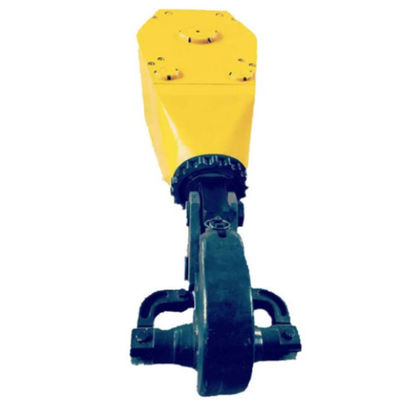

Oilfield Gas Drilling Rigs 890kN Traveling Hook Blocks

API YC450 Traveling Hook Blocks for Oil & Gas Drilling Rigs

Product Overview

Oilfield hook block is the high-capacity J-shaped equipment used to hang various other equipment, particularly the swivel and kelly, the elevator bails or topdrive units. The hook is attached to the bottom of the traveling block and provides a way to pick up heavy loads with the traveling block. The hook is either locked (the normal condition) or free to rotate, so that it may be mated or decoupled with items positioned around the rig floor, not limited to a single direction.

Travelling Block and Hook are effective devices of drilling rig for lifting. We could supply API 8C certified traveling block and hook with API monogram. Both integral structure of travelling block with hook, and sole travelling block or travelling hook are available.

Main Benefits of Our Oilfield Traveling Hook Block

• The primary-load-carrying parts of hook are subject to NDE test.
• The hook block assembly conforms to API 8A/8C.
• There is a reliable safety device at the hook.
• Joining traveling block and hook together reduces overall length and can help satisfy the requirements of top drive operation.
• The shafts of travelling block are forged with alloy steel and provided with a lubrication hole of bearing for one sheave.
• The grooves of sheave are intermediate frequency quenched so as to improve the surface hardness and prolong the service life.
• The sheaves are equipped with double-row conic roller bearings. Each bearing has its own lubrication channel.

Technical Data Sheet of Our Oilfield Hook Block

FAQ

1.How long is your delivery time?
It is according to the model and quantity. Generally it is 30 days if the machines are in stock.
2.What is terms of payment?
Normally we can accept T/T or L/C basis.
3. What is the Shipping way?
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. How about the Quality Control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
