| Outer Diameter: | 187mm~219mm | Processing Type: | Forging, Casting |
|---|---|---|---|
| Hardness: | 285-341 | Usage: | Oil Well Drilling |
| Color: | Blue, White Etc. | Type: | Top Drive Gooseneck |
| Product Name: | Varco Top Drive Parts Saver Sub | Material: | Carbon Steel |
| High Light: | REG Oilfield Saver Sub,7 5/8 Oilfield Saver Sub,Gooseneck Oilfield Saver Sub |
||

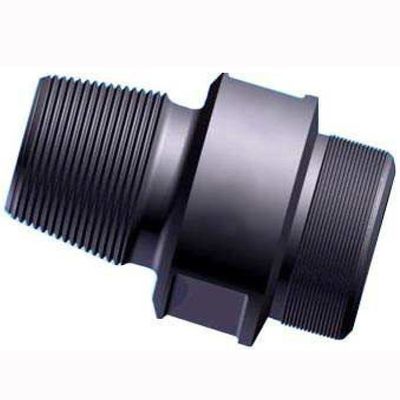

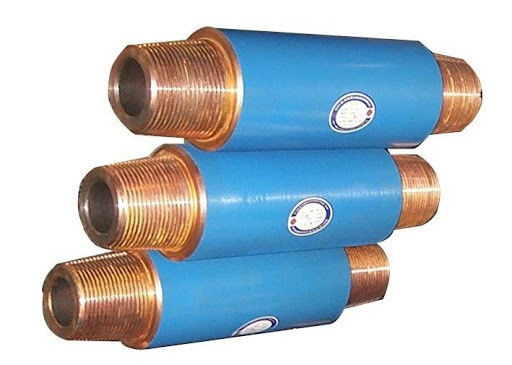

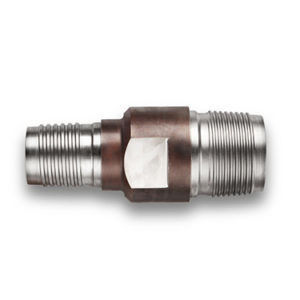

API 7-1 Oilfield Saver Sub 7 5/8 REG Pin X XT 54 Pin
Product Overview
Saver sub is short length of drill collar that has male threads on one end and female on the other. It is screwed onto the bottom of the kelly or topdrive and onto the rest of the drillstring. When the hole must be deepened, and pipe added to the drillstring, the threads are unscrewed between the saver sub and the rest of the drillstring, as opposed to between the kelly or topdrive and the saver sub. This means that the connection between the kelly or topdrive and the saver sub rarely is used, and suffers minimal wear and tear, whereas the lower connection is used in almost all cases and suffers the most wear and tear.
The Top Drive Saver Subs serves as a sacrificial element between the drill string and Top Drive or Kelly, reducing any unwanted repair and maintenance costs.
Packaging Type
We can supply China made interchangeable parts for above mentioned Top Drive Parts. If you need any related parts or tools, freely ask me.
Main Technical Information of Our Top Drive Save Sub
|
Item |
O.D. |
I.D. |
OAL |
Connection |
|
(mm/inch) |
(mm/inch) |
(mm/inch) |
API |
|
|
1 |
187(7-23/64) |
44.5(1-3/4) |
432(17) |
6 5/8REG PIN×NC31 PIN |
|
2 |
187(7-23/64) |
44.5(1-3/4) |
432(17) |
6 5/8REG PIN LH×NC31 PIN LH |
|
3 |
187(7-23/64) |
57.2(2-1/4) |
445(17-1/2) |
6 5/8REG PIN×NC38 PIN |
|
4 |
187(7-23/64) |
57.2(2-1/4) |
445(17-1/2) |
6 5/8REG PIN LH×NC38 PIN LH |
|
5 |
187(7-23/64) |
71.4(2-13/16) |
458(18) |
6 5/8REG PIN×NC50 PIN |
|
6 |
197(7-3/4) |
57.2(2-1/4) |
458(18) |
6 5/8REG PIN×NC38 PIN |
|
7 |
197(7-3/4) |
71.4(2-13/16) |
470(18-1/2) |
6 5/8REG PIN×NC50 PIN |
|
8 |
197(7-3/4) |
71.4(2-13/16) |
458(18) |
6 5/8REG PIN LH×6 5/8REG PIN LH |
|
Please specify the size if you have any special demand. |
||||
Our company has always focused on research, development and innovation. WE will initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
In general, we suggest to make delivery by sea for large order, and for small order, Courier, By Air both ok. Also we respect your views of other transportation as well.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
