Product Details:
Payment & Shipping Terms:
|
| Outer Diameter: | 187mm~219mm | Processing Type: | Forging, Casting |
|---|---|---|---|
| Product Name: | Top Drive And Kelly Saver Subs | Hardness: | 285-341 |
| Usage: | Oil Well Drilling | Color: | Blue, White Etc. |
| Material: | 4145H | Package: | Wooden Box |
| High Light: | OD 187mm Kelly Saver Sub,4145H Kelly Saver Sub,Oilfield Kelly Saver Sub |
||

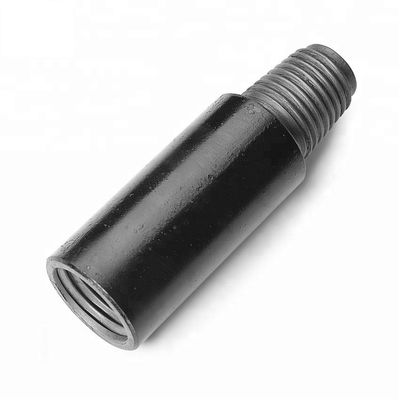

API 7-1 4145H Top Drive and Kelly Saver Sub for Oilfield
Product Introduction

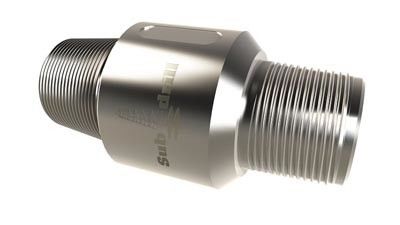

Top Drive Saver Sub is a kind of sub connected with Lower IBOP and drill pipe, mainly used in the top drive system. Not only acting as crossover sub, but also protecting lower IBOP. Top drive saver sub can be divided into general top drive saver sub and low temperature top drive saver sub.
Our company provides varied, complete series of subs and joints, they are: Crossover Sub, Bit Sub, Rotary Sub, Kelly Saver Sub, Integral Short Drill Rod, Short Drill Collar, Pup Joints etc.
To supplement our range of Top Drive and Kelly Saver Subs, we introduced a range of Top Drive Saver Subs with Splined Design to suit the latest Top Drives on the market.
Packaging Type
1. Normal packing: plywood case, wooden box or pallet
2. Suitable for ocean shipping and air shipping.
3. Max. weight for each package: 1500 Kg
4. Standard packing dimension: 1200 * 1100 * 1000 mm
5. Special packing requirements should be known in advance.
6. Custom packing is available.
Main Technical Data of Our Top Drive Save Sub
|
Item |
O.D. |
I.D. |
OAL |
Connection |
|
(mm/inch) |
(mm/inch) |
(mm/inch) |
API |
|
|
1 |
187(7-23/64) |
44.5(1-3/4) |
432(17) |
6 5/8REG PIN×NC31 PIN |
|
2 |
187(7-23/64) |
44.5(1-3/4) |
432(17) |
6 5/8REG PIN LH×NC31 PIN LH |
|
3 |
187(7-23/64) |
57.2(2-1/4) |
445(17-1/2) |
6 5/8REG PIN×NC38 PIN |
|
4 |
187(7-23/64) |
57.2(2-1/4) |
445(17-1/2) |
6 5/8REG PIN LH×NC38 PIN LH |
|
5 |
187(7-23/64) |
71.4(2-13/16) |
458(18) |
6 5/8REG PIN×NC50 PIN |
|
6 |
197(7-3/4) |
57.2(2-1/4) |
458(18) |
6 5/8REG PIN×NC38 PIN |
|
7 |
197(7-3/4) |
71.4(2-13/16) |
470(18-1/2) |
6 5/8REG PIN×NC50 PIN |
|
8 |
197(7-3/4) |
71.4(2-13/16) |
458(18) |
6 5/8REG PIN LH×6 5/8REG PIN LH |
|
Please specify the size if you have any special demand. |
||||
Xi'An TianRui Petroleum Machinery Equipment Company Limited is a professional supplier of various oilfield equipment, including solid control equipment, oil drilling and service equipment, oil production equipment, OCTG ,wellhead & downhole tools and spare parts with API certification.
And we have many years of history in the petroleum equipment industry. Our main products include solid control equipment, drilling equipment,oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipe, vavle & pipe fitting and oilfield tools. Currently, our products is already exported to America, Middle East, Australia, Africa and 20 other countries and regions.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
