Product Details:
Payment & Shipping Terms:
|
| Model Number: | Type A Or Type B | Outer Diameter: | 187mm~219mm |
|---|---|---|---|
| Processing Type: | Forging, Casting | Application: | Oil Field |
| Advantage: | High Performance | Material: | AISI4145, Etc |
| Product Name: | Top Drive And Kelly Saver Subs | Hardness: | 285-341 |
| High Light: | 6 5/8 REG Saver Sub,Forging Casting Saver Sub,OD 219mm Saver Sub |
||

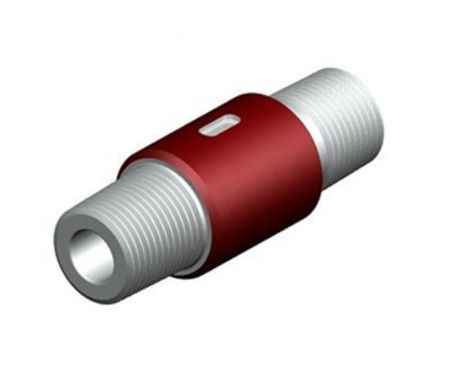

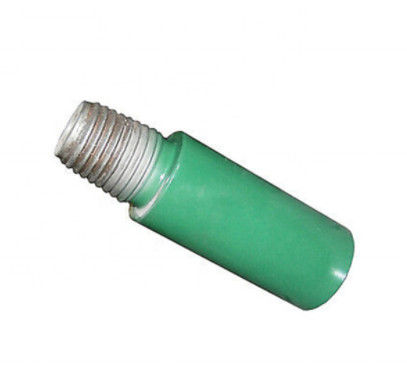

Black Color Varco Parts Top Drive Saver Sub 6 5/8 REG
Product Introduction
Saver Sub is used to extend the life of the Kelly by taking the connection wear each time it is make-up to a drill stem component. The saver sub connection is sacrificed because it can be easily repaired or inexpensively replaced. The saver sub can be equipped with a rubber protector to reduce BOP equipment and casing wear resulting from contact damage with a lower Kelly connection.
Saver Subs for Top Drive is a crossover sub which is connected between IBOP for Top Drive and lower drill pipe. The structure of the sub is whole, which is produced with modified alloy steel, and after the special heat treatment process to achieve the desired hardness and strength and impact resistance.
Company Service

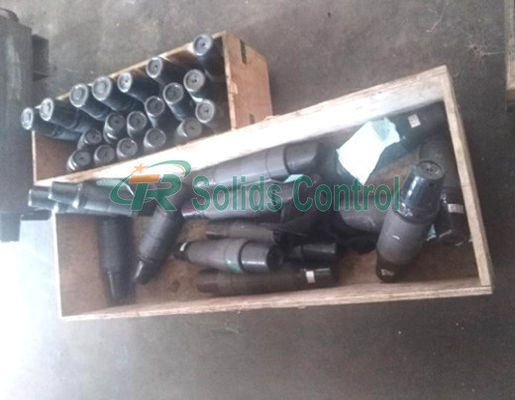

Top drive saver subs are stocked or manufactured to our customers request, based on API requirements.The top drive sub serves as the sacrificial element between the drill string and the tope drive, reducing any unwanted repair and maintenance costs.
To supplement our range of Top Drive and Kelly Saver Subs, we introduced a range of Top Drive Saver Subs with Splined Design to suit the latest Top Drives on the market.
Technical Parameters of Top Drive Save Sub
|
Item |
O.D. |
I.D. |
OAL |
Connection |
|
(mm/inch) |
(mm/inch) |
(mm/inch) |
API |
|
|
1 |
187(7-23/64) |
44.5(1-3/4) |
432(17) |
6 5/8REG PIN×NC31 PIN |
|
2 |
187(7-23/64) |
44.5(1-3/4) |
432(17) |
6 5/8REG PIN LH×NC31 PIN LH |
|
3 |
187(7-23/64) |
57.2(2-1/4) |
445(17-1/2) |
6 5/8REG PIN×NC38 PIN |
|
4 |
187(7-23/64) |
57.2(2-1/4) |
445(17-1/2) |
6 5/8REG PIN LH×NC38 PIN LH |
|
5 |
187(7-23/64) |
71.4(2-13/16) |
458(18) |
6 5/8REG PIN×NC50 PIN |
|
6 |
197(7-3/4) |
57.2(2-1/4) |
458(18) |
6 5/8REG PIN×NC38 PIN |
|
7 |
197(7-3/4) |
71.4(2-13/16) |
470(18-1/2) |
6 5/8REG PIN×NC50 PIN |
|
8 |
197(7-3/4) |
71.4(2-13/16) |
458(18) |
6 5/8REG PIN LH×6 5/8REG PIN LH |
|
Please specify the size if you have any special demand. |
||||
Xi'An TianRui Petroleum Machinery Equipment Company Limited is making great efforts in technology innovation, market innovation and management innovation to constantly enhance the comprehensive strength of company, in order to build it as one of the national R&D and production bases for petroleum tools. In addition, we will endeavor to provide better products and more excellent services and improve the strength of enterprise, so as to make greater contribution to the global petroleum tool induatry.
Our company has always focused on research, development and innovation. WE will initiate the second phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
