Product Details:
Payment & Shipping Terms:
|
| Model Number: | Type A Or Type B | Outer Diameter: | 187mm~219mm |
|---|---|---|---|
| Processing Type: | Forging | Package: | Wooden Box |
| Application: | Oil Field | Advantage: | High Performance |
| Warranty: | 1 Year | Material: | AISI4145, Etc |
| High Light: | Oilfield Drilling Tool Saver Sub,OD 187mm Saver Sub,API Drilling Tool Saver Sub |
||

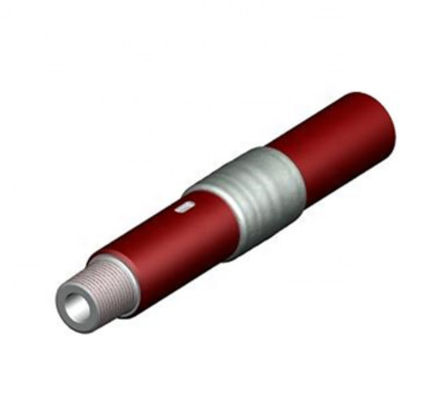

API 7-1 Oilfield Drilling Tool Saver Sub OD 187mm for Top Drive
Product Introduction
Saver sub is short length of drill collar that has male threads on one end and female on the other. It is screwed onto the bottom of the kelly or topdrive and onto the rest of the drillstring. When the hole must be deepened, and pipe added to the drillstring, the threads are unscrewed between the saver sub and the rest of the drillstring, as opposed to between the kelly or topdrive and the saver sub. This means that the connection between the kelly or topdrive and the saver sub rarely is used, and suffers minimal wear and tear, whereas the lower connection is used in almost all cases and suffers the most wear and tear. The saver sub is expendable and does not represent a major investment. However, the kelly or topdrive component threads are spared by use of a saver sub, and those components represent a significant capital cost and considerable downtime when replaced.
Company Service

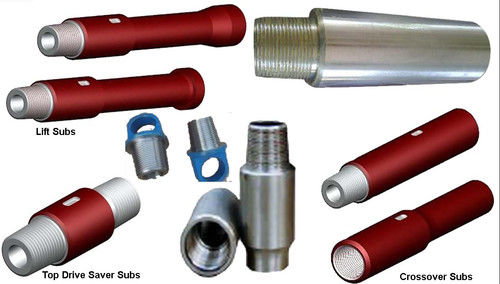

To supplement our range of Top Drive and Kelly Saver Subs, we introduced a range of Top Drive Saver Subs with Splined Design to suit the latest Top Drives on the market.
These subs and joints are all made from high quality grade, heat-treated alloy steel for maximum strength and durability, and threaded to customer specifications and API Spec 7-1 requirements.
Technical Information of Top Drive Save Sub
|
Item |
O.D. |
I.D. |
OAL |
Connection |
|
(mm/inch) |
(mm/inch) |
(mm/inch) |
API |
|
|
1 |
187(7-23/64) |
44.5(1-3/4) |
432(17) |
6 5/8REG PIN×NC31 PIN |
|
2 |
187(7-23/64) |
44.5(1-3/4) |
432(17) |
6 5/8REG PIN LH×NC31 PIN LH |
|
3 |
187(7-23/64) |
57.2(2-1/4) |
445(17-1/2) |
6 5/8REG PIN×NC38 PIN |
|
4 |
187(7-23/64) |
57.2(2-1/4) |
445(17-1/2) |
6 5/8REG PIN LH×NC38 PIN LH |
|
5 |
187(7-23/64) |
71.4(2-13/16) |
458(18) |
6 5/8REG PIN×NC50 PIN |
|
6 |
197(7-3/4) |
57.2(2-1/4) |
458(18) |
6 5/8REG PIN×NC38 PIN |
|
7 |
197(7-3/4) |
71.4(2-13/16) |
470(18-1/2) |
6 5/8REG PIN×NC50 PIN |
|
8 |
197(7-3/4) |
71.4(2-13/16) |
458(18) |
6 5/8REG PIN LH×6 5/8REG PIN LH |
|
Please specify the size if you have any special demand. |
||||
What's the order procedure?
First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 15-25days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
