Product Details:
Payment & Shipping Terms:
|
| OD: | 105-134mm | Connection Thread: | REG, EUE, VAM |
|---|---|---|---|
| Length: | 732-800 Mm | Material: | Carbon Steel |
| ID: | 44-62 Mm | Type: | Manual Tool |
| Usage: | Hole Drilling | Color: | Red, Blue, Green Etc |
| High Light: | Manual Tool Lower IBOP,OD 178mm Lower IBOP,Hole Drilling Lower IBOP |
||

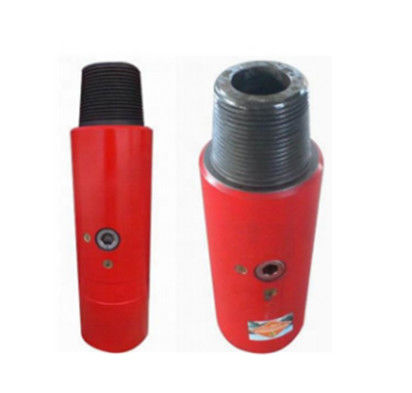

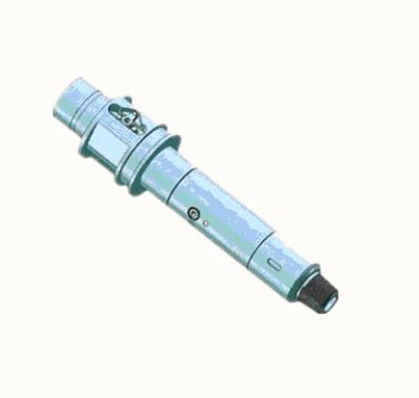

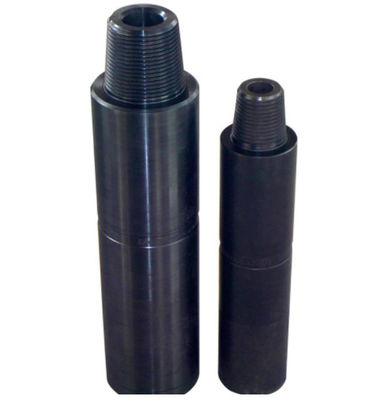

Manual Tool Lower IBOP OD 178mm for Varco Top Drive
Product Overview
Inside BOP is a device that can be installed in the drill string that acts as a check valve allowing drilling fluid to be circulated down the string but prevents back flow. The valve is opened and closed by spindle 90° rotation using the control key.
A special release tool allows the valve to be held open to permit sabbing into position against a backflow of fluid, this optional release tool can be installed on the float valve and the entire assembly kept ready on the rig floor for quick installation at the first signs of serious backflow when drill pipe is pulled from the well.
World famous brands of Top Drive including Varco, Canrig, NOV, BPM, JH, etc.
Top Drive Parts including Gooseneck, saver sub, IBOP, gear, stuffing box, washpipe, etc.
Tianrui can supply China made interchangeable parts for above mentioned Top Drive Parts.
If you need any related parts or tools, freely to ask us.
Main Features of Our IBOP
Parameters of Upper & Lower IBOP for Top Drive
| Model | XS105-T44 | XS110-T51 | XS124-T62 | XS127-T62 | XS133-T57 | XS133-T57 | XS134-T62 |
| O.D. | φ105 | φ110 | φ124 | φ127 | φ133 | φ133 | φ134 |
| I.D. | φ44 | φ51 | φ62 | φ62 | φ57 | φ57 | φ62 |
| Connection | 2A10X2A11 | 210X211 | 2 7/8 EUE | 2 7/8 EUE | XT39 | 4 1/2VAM | 310X311 |
| Length | 732 | 726 | 578 | 578 | 773 | 1173 | 800 |
| Model | XS134-T62 | XS146-T50.8 | XS152-T76 | XS152-T76 | XS178-T76 | XS178-T76.2 | XS190-T82.6 |
| O.D. | φ134 | φ146 | φ152 | φ152 | φ178 | φ178 | φ190 |
| I.D. | φ60 | φ50.8 | φ76 | φ76 | φ76 | φ76.2 | φ82.6 |
| Connection | 4 1/2NU | NC31 | 3 1/2NU | 3 1/2 EUE | 3 1/2EUE | 4A10X4A11 | 410X411 |
| Length | 580 | 832 | 640 | 617 | 675 | 885 | 895 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning,manufacturing and quality monitoring & traceability to ensure that our products match the highest quality & reliability Standards similar to any International major in this field.
And we have many years of history in the petroleum equipment industry. Our main products include solid control equipment, drilling equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipes, vavle & pipe fitting and oilfield tools. Currently, our products is already exported to America, Middle East, Australia,Africa and 20 other countries and regions.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
