Product Details:
Payment & Shipping Terms:
|
| Color: | Blue, Black Etc | Usage: | Energy & Mining, Oilfield |
|---|---|---|---|
| Machine Type: | Drilling Equipment, Varco TOP Drive | Warranty: | 12 Months |
| Power Source: | Hydraulic | After-sale Service: | Overseas Third-party Support Available |
| OD: | 105-134mm | Connection Thread: | REG, EUE, VAM |
| High Light: | IBOP Drill Spare Parts,API Hydraulic Drill Spare Parts,Upper Lower IBOP |
||

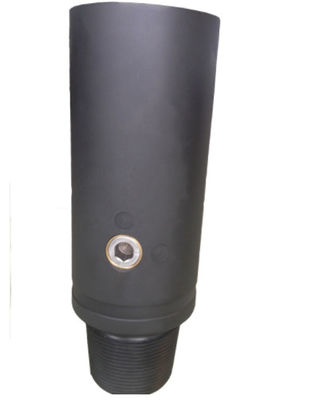

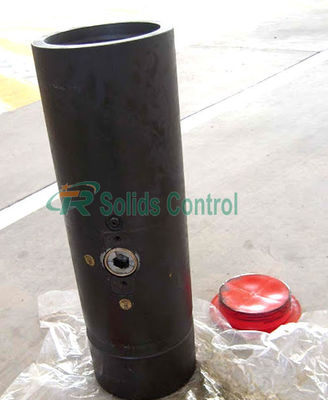

API Varco Top Drive Spare Parts IBOP Inside BOP
Product Overview

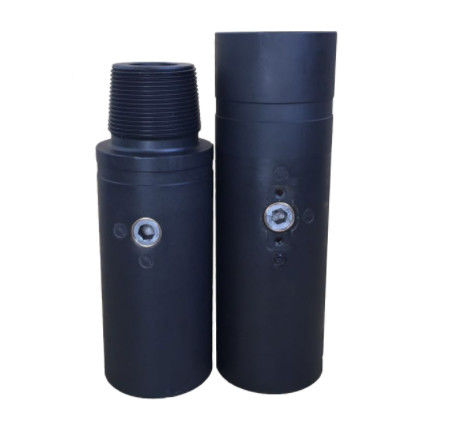

The Top Drive Valves or IBOPs can be separated into Upper IBOPs and Lower IBOPs. The upper IBOP is positioned between the power swivel and the top drive main shaft. The lower IBOP is positioned between the top drive main shaft and a crossover sub. They are used to shut off flow in the drill sting and to prevent mud loss during tripping operations. Due to the efficiency and potential savings that Top Drive or Power Swivel rigs offer, their usage has consistently increased throughout the last two decades.
The IBOP is a heavy-duty drop check valve with a conical plug to reduce the cutting action of the mud on the valve seat, ensuring positive closure whenever required. Installed in the drill string, it can protect the rotary swivel, rotary hose, stand pipe, and mud pumps from drill pipe kicks. It may be used along with high-pressure pumps to maintain well control by preventing high-pressure backflow.vice.
Specifications
1. Varco Top Drive Spare Parts.
2. Best Spare Parts.
3. Spare Parts High Quality.
4. Good Varco Top Drive.
5. Popular Drive Parts.
Technical Parameters of Upper & Lower IBOP for Top Drive
| Model | XS105-T44 | XS110-T51 | XS124-T62 | XS127-T62 | XS133-T57 | XS133-T57 | XS134-T62 |
| O.D. | φ105 | φ110 | φ124 | φ127 | φ133 | φ133 | φ134 |
| I.D. | φ44 | φ51 | φ62 | φ62 | φ57 | φ57 | φ62 |
| Connection | 2A10X2A11 | 210X211 | 2 7/8 EUE | 2 7/8 EUE | XT39 | 4 1/2VAM | 310X311 |
| Length | 732 | 726 | 578 | 578 | 773 | 1173 | 800 |
| Model | XS134-T62 | XS146-T50.8 | XS152-T76 | XS152-T76 | XS178-T76 | XS178-T76.2 | XS190-T82.6 |
| O.D. | φ134 | φ146 | φ152 | φ152 | φ178 | φ178 | φ190 |
| I.D. | φ60 | φ50.8 | φ76 | φ76 | φ76 | φ76.2 | φ82.6 |
| Connection | 4 1/2NU | NC31 | 3 1/2NU | 3 1/2 EUE | 3 1/2EUE | 4A10X4A11 | 410X411 |
| Length | 580 | 832 | 640 | 617 | 675 | 885 | 895 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited was founded in 2010, in Xi'an city, Shaanxi Province of China. It engages into the designing, developing, testing, manufacturing, repairing, and drilling service. Its business covers drilling rig, workover rig, solids control equipment, drilling rig supporting and drilling strings and other equipments related with petroleum. Strictly abide by ISO9001 quality system certification and API standard. Looking forward to cooperating with you!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
