Product Details:
Payment & Shipping Terms:
|
| Color: | Blue, Black, Green Etc | Connection: | REG |
|---|---|---|---|
| Usage: | Energy & Mining, Oilfield | Machine Type: | Drilling Equipment, Varco TOP Drive |
| Warranty: | 12 Months | Material: | Carbon Steel |
| Power Source: | Hydraulic | After-sale Service: | Overseas Third-party Support Available |
| High Light: | IBOP Drill Spare Parts,187mm Drill IBOP,Carbon Steel Drill Spare Parts |
||

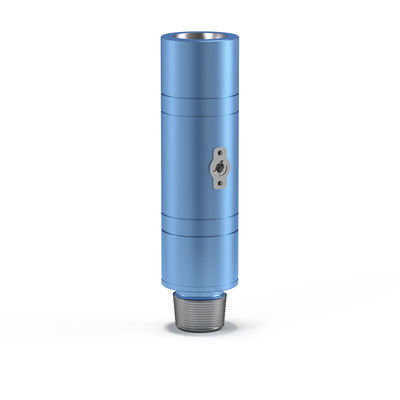

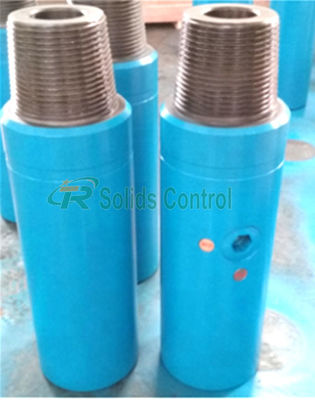

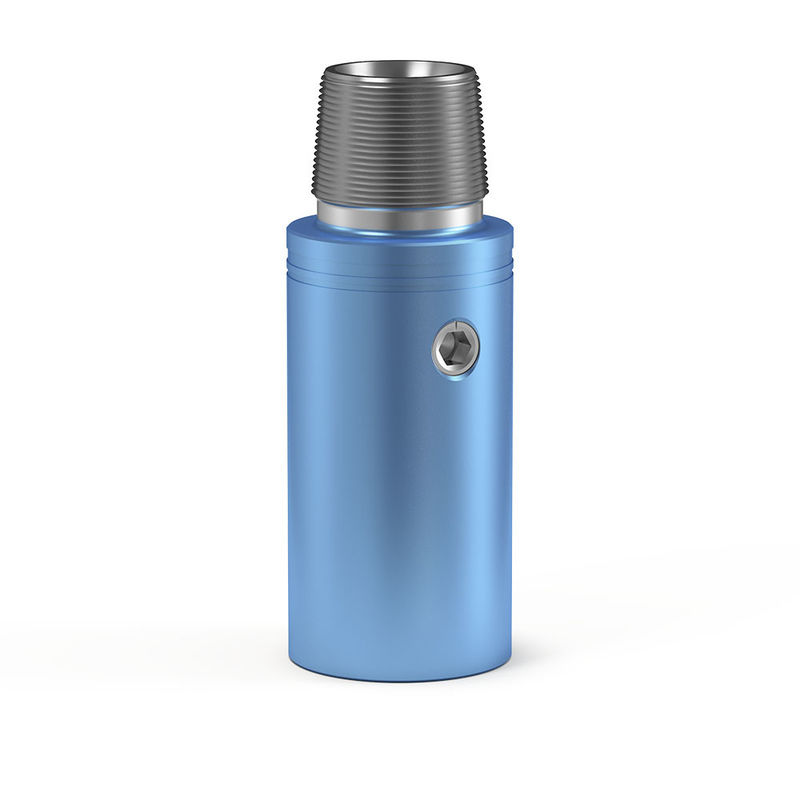

Oil Rig Drilling Equipment Effective IBOP Part for Top Drive
Product Overview
The IBOP is a heavy-duty drop check valve with a conical plug to reduce the cutting action of the mud on the valve seat, ensuring positive closure whenever required. Installed in the drill string, it can protect the rotary swivel, rotary hose, stand pipe, and mud pumps from drill pipe kicks. It may be used along with high-pressure pumps to maintain well control by preventing high-pressure backflow.vice.
IBOP for top drive can be divided into Upper IBOP and Lower IBOP, they are control valves which are used with the top drive system. Usually the two valves connected to the top drive drilling device. The IBOP adopts high reliable metal seal. So it can bear high pressure upward and downward.
Information of Top Drive Parts:
Top Drive Parts including Gooseneck, saver sub, IBOP, gear, stuffing box, washpipe, etc.
World famous brands of Top Drive including Varco, Canrig, NOV, BPM, JH, etc.
Tianrui can supply China made interchangeable parts for above mentioned Top Drive Parts.
If you need any related parts or tools, freely to ask us.
Technical Data of Our Upper & Lower IBOP for Top Drive
| Model | XS105-T44 | XS110-T51 | XS124-T62 | XS127-T62 | XS133-T57 | XS133-T57 | XS134-T62 |
| O.D. | φ105 | φ110 | φ124 | φ127 | φ133 | φ133 | φ134 |
| I.D. | φ44 | φ51 | φ62 | φ62 | φ57 | φ57 | φ62 |
| Connection | 2A10X2A11 | 210X211 | 2 7/8 EUE | 2 7/8 EUE | XT39 | 4 1/2VAM | 310X311 |
| Length | 732 | 726 | 578 | 578 | 773 | 1173 | 800 |
| Model | XS134-T62 | XS146-T50.8 | XS152-T76 | XS152-T76 | XS178-T76 | XS178-T76.2 | XS190-T82.6 |
| O.D. | φ134 | φ146 | φ152 | φ152 | φ178 | φ178 | φ190 |
| I.D. | φ60 | φ50.8 | φ76 | φ76 | φ76 | φ76.2 | φ82.6 |
| Connection | 4 1/2NU | NC31 | 3 1/2NU | 3 1/2 EUE | 3 1/2EUE | 4A10X4A11 | 410X411 |
| Length | 580 | 832 | 640 | 617 | 675 | 885 | 895 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited offers drilling rig and travelling system products for big oil fields over a long period of time. The company is 1st-class unit of China National Petroleum (Group) Equipment Corporation and Supplies and Assemblies Company of China Petroleum Corporation. Insisting on the development and innovation path with scientific progress as the core, company has been constanly absorbing advanced technology to quicken new product development. This company has established close technical cooperation relation with the oil field research institutes, designing institutes and various engineering technical departments throughout the country. For many years,we have achieved many scientific and thchnological achievements based on independent intellectual properties, filling up many blank both abroad and home.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
