Product Details:
Payment & Shipping Terms:
|
Color: | Blue, Black, Green Etc | Warranty: | 12 Months |
---|---|---|---|
Certificate: | ISO9001,ISO14000,ISO18000 | Material: | Stainless Steel, Alloy Steel |
Connection: | REG | Processing Type: | Forging |
Application: | Energy & Mining | Machine Type: | Varco TOP Drive |
High Light: | Lower IBOP Drill Spare Parts,Upper IBOP Drill Spare Parts,Energy Mining Drill Spare Parts |

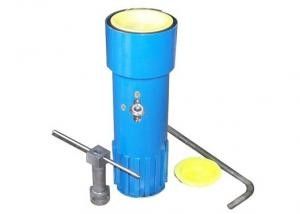

API Upper IBOP Lower IBOP for Varco 11SA Top Drive system
Product Overview
IBOP for top drive can be divided into Upper IBOP and Lower IBOP, they are control valves which are used with the top drive system. Usually the two valves connected to the top drive drilling device. The IBOP adopts high reliable metal seal. So it can bear high pressure upward and downward.
The seals for upward and downward pressure provide dependable high-pressure service. It has a pressure rating of 10, 000psi or 15, 000psi respectively at the factory. The bore of the valve body and all internal parts are special treated to prevent damage from corrosion and have a long life service.
Varco Top Drive Main Spare Parts
99498-2 REPAIR KIT,LOWER IBOP STD&NAM
110103-500 UPPER IBOP, PH50 ASSY, 6-5/8 X 6-5/8, C/W CERT
114859 REPAIR KIT,UPPER IBOP,PH-50 STD AND NAM
110103-502 ASSY,UPPER IBOP,6 5/8X 6 5/8,PH50,H2S, C/W CERT
114706-500 ASSY,LWR IBOP,65/8X65/8W/REL GRV-STD, C/W CERT
114706-502 ASSY,LWR,IBOP6 5/8X6 5/8W/RLFGRV,H2SW, C/W CERT
114706-503 ASSY,LWR IBOP 65/8X65/8 NAM POCKET, C/W CERT
Technical Specifications of Our Upper & Lower IBOP
Type
|
O.D.
|
I.D.
|
Connection(API)
|
OAL
|
DXS187 Upper IBOP |
187 7-23/64) |
77.8 (3-1/16) |
6-5/8REG |
572(22-1/2)
|
DSS187 Lower IBOP
|
523(20-19/32)
|
|||
DSS197 Upper IBOP
|
197 7-3/4) |
77.8 (3-1/16) |
6-5/8REG
|
572(22-1/2)
|
DXS197 Lower IBOP
|
523(20-19/32)
|
|||
DSS216 Upper IBOP
|
216 8-1/2) |
77.8 (3-1/16) |
6-5/8REG
|
600(25-5/8)
|
DXS216 Lower IBOP
|
512(20-5/32)
|
|||
DSS254 Upper IBOP
|
254 (10) |
102 (4) |
8-5/8REG
|
800(31-1/2) |
Xi'An TianRui Petroleum Machinery Equipment Company Limited offers drilling rig and travelling system products for big oil fields over a long period of time. The company is 1st-class unit of China National Petroleum (Group) Equipment Corporation and Supplies and Assemblies Company of China Petroleum Corporation. Insisting on the development and innovation path with scientific progress as the core, company has been constanly absorbing advanced technology to quicken new product development. This company has established close technical cooperation relation with the oil field research institutes, designing institutes and various engineering technical departments throughout the country. For many years,we have achieved many scientific and thchnological achievements based on independent intellectual properties, filling up many blank both abroad and home.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
