| Color: | Blue, Black, Green Etc | Warranty: | 12 Months |
|---|---|---|---|
| Certificate: | ISO9001,ISO14000,ISO18000 | Material: | Stainless Steel, Alloy Steel |
| Connection: | REG | Usage: | Well Drilling |
| Type: | BOP | Processing Type: | Forging |
| High Light: | Forging Upper IBOP,Top Drive Drilling Upper IBOP,API Upper IBOP |
||

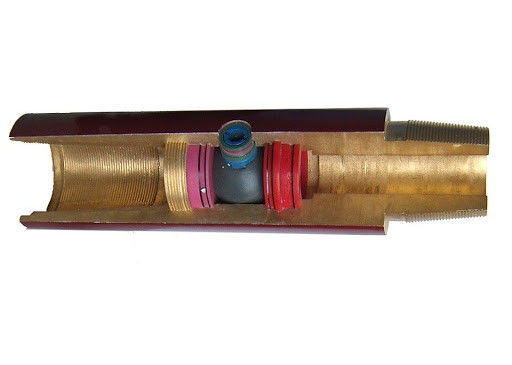

Standard 8-1/2" Upper IBOP for Top Drive Drilling System
Product Introduction

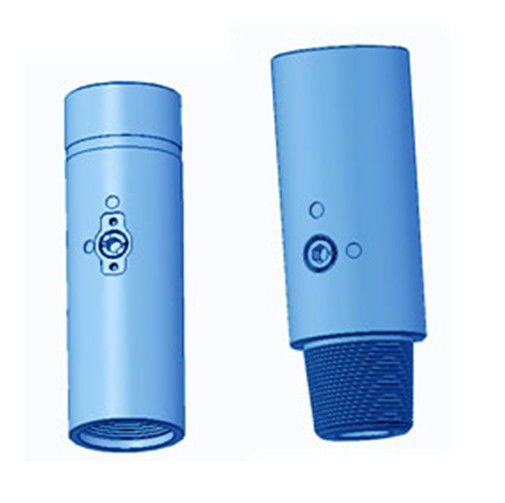

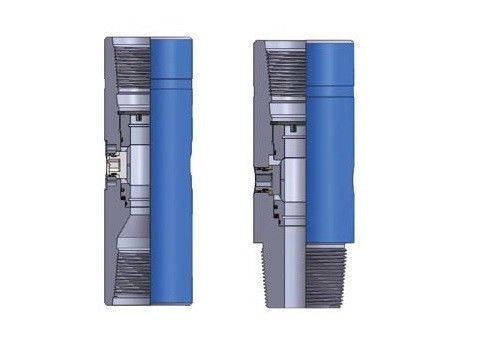

IBOP for Top Drive used for top drive. It includes Upper IBOP for Top Drive and Lower IBOP for Top Drive. They are used for top drive drilling system with joined one by one. It is hydraulically operated and manually operated control valves in top drive circulating system, and special use for drill stem inside blowout emergency. It has a pressure rating of 10,000psi or 15,000psi respectively at the factory. The bore of the valve body and all internal parts are special treated to prevent damage from corrosion and have a long life service.
The seals for upward and downward pressure provide dependable high-pressure service. It has a pressure rating of 10, 000psi or 15, 000psi respectively at the factory. The bore of the valve body and all internal parts are special treated to prevent damage from corrosion and have a long life service.
Varco Top Drive Spare Parts
110103-502 ASSY,UPPER IBOP,6 5/8X 6 5/8,PH50,H2S, C/W CERT
110103-500 UPPER IBOP, PH50 ASSY, 6-5/8 X 6-5/8, C/W CERT
114859 REPAIR KIT,UPPER IBOP,PH-50 STD AND NAM
114706-500 ASSY,LWR IBOP,65/8X65/8W/REL GRV-STD, C/W CERT
114706-502 ASSY,LWR,IBOP6 5/8X6 5/8W/RLFGRV,H2SW, C/W CERT
114706-503 ASSY,LWR IBOP 65/8X65/8 NAM POCKET, C/W CERT
99498-2 REPAIR KIT,LOWER IBOP STD&NAM
Technical Parameters of Our IBOP
|
Type
|
O.D.
|
I.D.
|
Connection(API)
|
OAL
|
| DXS187 Upper IBOP |
187 7-23/64) |
77.8 (3-1/16) |
6-5/8REG |
572(22-1/2)
|
|
DSS187 Lower IBOP
|
523(20-19/32)
|
|||
|
DSS197 Upper IBOP
|
197 7-3/4) |
77.8 (3-1/16) |
6-5/8REG
|
572(22-1/2)
|
|
DXS197 Lower IBOP
|
523(20-19/32)
|
|||
|
DSS216 Upper IBOP
|
216 8-1/2) |
77.8 (3-1/16) |
6-5/8REG
|
600(25-5/8)
|
|
DXS216 Lower IBOP
|
512(20-5/32)
|
|||
|
DSS254 Upper IBOP
|
254 (10) |
102 (4) |
8-5/8REG
|
800(31-1/2) |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is making great efforts in technology innovation, market innovation and management innovation to constantly enhance the comprehensive strength of company, in order to build it as one of the national R&D and production bases for petroleum tools. In addition, we will endeavor to provide better products and more excellent services and improve the strength of enterprise, so as to make greater contribution to the global petroleum tool induatry.
TR engages in oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
