Product Details:
Payment & Shipping Terms:
|
| Thickness: | 8.56-12.57 | Color: | Blue, Black |
|---|---|---|---|
| Warranty: | 12 Months | Size: | 4-1/2-103/4 |
| Certificate: | ISO9001,ISO14000,ISO18000 | Connectiong Threads: | FJWP |
| ID: | 97.18-247.91 | ||
| High Light: | 9 5/8" Washover Pipe,Oilfield Washover Pipe,20MPa Washover Pipe |
||

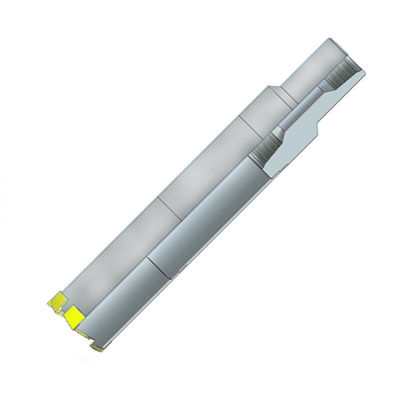

API 7-1 Oilfiled Washover Tool Size 9 5/8" Washover Pipe
Product Introduction

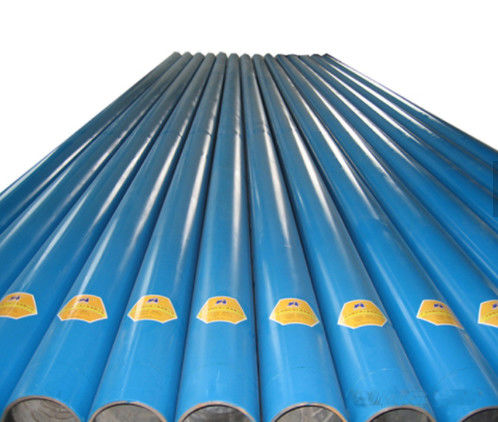

The washover pipe is a kind of tool for special purposed to solve sticking pipe. The wash over pipe adopt two-step thread(FJWP) as connect thread. It is hight tensile strength, non-interference threads, is made of high strength pipe and fast shackle, seal reliable.
In fishing operations, a large-diameter pipe fitted with an internal grappling device and tungsten carbide cutting surfaces on the bottom. The washover pipe can be lowered over a fish in the wellbore and to latch onto and retrieve the fish.
Washover proceed is the efficient way for freeing the stuck accidents during the downhole operation. It is almost suitable for various stuck accidents. When the stuck accidents happen in downhole, it can free the stuck tools in short time, releasing you anxiety.
Main Accessories of Our Washover Pipe
Drive Sub:
Drive Subs provide the crossover connection between fishing string and the washover pipe. Each is machined from high-grade alloy steel and heat treated to provide maximum strength and durability.
Lift Plug:
Lift Plug is designed to provide an economical method of handling washover strings. It is available in all thread types and size, has sufficient shoulder diameter to support handling the washover string.
Washover Safety Joint:
Washover safety joint is manufactured to provide safe and easy release and make-up whenever disengagement from the washover string becomes necessary. This dependable, field-tough tool is designed to transmit torque in either direction when placed in the washover string.
Technical Parameters of TR Washover Pipe
| TYPE |
O.D mm |
I.D mm |
Min O.D Of using mm |
Diameter of the fish To be Cut mm |
Max.Tensile Load kN |
Max. Working TorqueN•m |
Sealing Pressure MPa |
| TXG114.30-8.56 | 114.30 | 97.18 | 120.65 | 80.90 | 390 | 9490 | 20 |
| TXG127-9.19 | 127.00 | 108.62 | 146.05 | 101.60 | 440 | 12202 | 20 |
| TXG139.70-9.17 | 139.70 | 121.36 | 152.4 | 117.48 | 500 | 14914 | 20 |
| TXG146.05-7.92 | 146.05 | 130.21 | 161.93 | 127.00 | 500 | 14914 | 20 |
| TXG146.05-9.00 | 146.05 | 128.05 | 161.93 | 120.65 | 560 | 16269 | 20 |
| TXG168.28-8.94 | 168.28 | 150.39 | 187.33 | 142.88 | 600 | 21693 | 15 |
| TXG177.80-9.19 | 177.80 | 159.42 | 200.03 | 152.40 | 640 | 24404 | 15 |
| TXG193.68-9.53 | 193.68 | 174.63 | 212.73 | 168.28 | 700 | 31183 | 15 |
| TXG193.68-10.92 | 193.68 | 171.83 | 212.73 | 165.10 | 810 | 36607 | 15 |
| TXG193.68-12.70 | 193.68 | 168.28 | 212.73 | 161.93 | 1060 | 43386 | 15 |
| TXG203.20-9.53 | 203.20 | 184.15 | 215.90 | 177.00 | 820 | 32539 | 15 |
| TXG206.38-9.40 | 206.38 | 187.58 | 215.90 | 177.80 | 830 | 32539 | 15 |
| TXG219.07-11.43 | 219.07 | 196.21 | 244.48 | 187.33 | 1100 | 47453 | 15 |
| TXG219.07-12.70 | 219.07 | 193.67 | 244.48 | 184.15 | 1220 | 54232 | 15 |
| TXG228.60-10.80 | 228.60 | 207.01 | 250.83 | 200.03 | 1260 | 47453 | 15 |
| TXG244.48-11.99 | 244.48 | 220.50 | 266.70 | 212.73 | 1450 | 67791 | 15 |
| TXG244.48-13.84 | 244.48 | 216.80 | 266.70 | 206.37 | 1560 | 81349 | 15 |
| TXG273.05-11.43 | 273.05 | 250.19 | 290.45 | 238.13 | 1620 | 81349 | 15 |
| TXG273.05-12.57 | 273.05 | 247.91 | 298.45 | 234.95 | 1640 | 88128 | 15 |
| TXG298.44-12.42 | 298.44 | 273.60 | 323.85 | 263.53 | 1800 | 108465 | 10 |
| TXG339.72-13.06 | 339.72 | 313.60 | 365.13 | 301.62 | 2020 | 149140 | 10 |
| TXG406.40-16.66 | 406.40 | 373.08 | 444.50 | 355.60 | 2500 | 254894 | 7.0 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
TR engages in oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
