Product Details:
Payment & Shipping Terms:
|
| Thickness: | 8.56 - 16.66 Mm | Color: | Blue, Black |
|---|---|---|---|
| Advantage: | High Performance | Warranty: | 12 Months |
| Package: | Wooden Case | Size: | 4-1/2-103/4 |
| Certificate: | ISO9001,ISO14000,ISO18000 | Connectiong Threads: | FJWP |
| High Light: | Washover Pipe Drill Spare Parts,API Fishing Tools Washover Pipe,6 5/8" Washover Pipe |
||

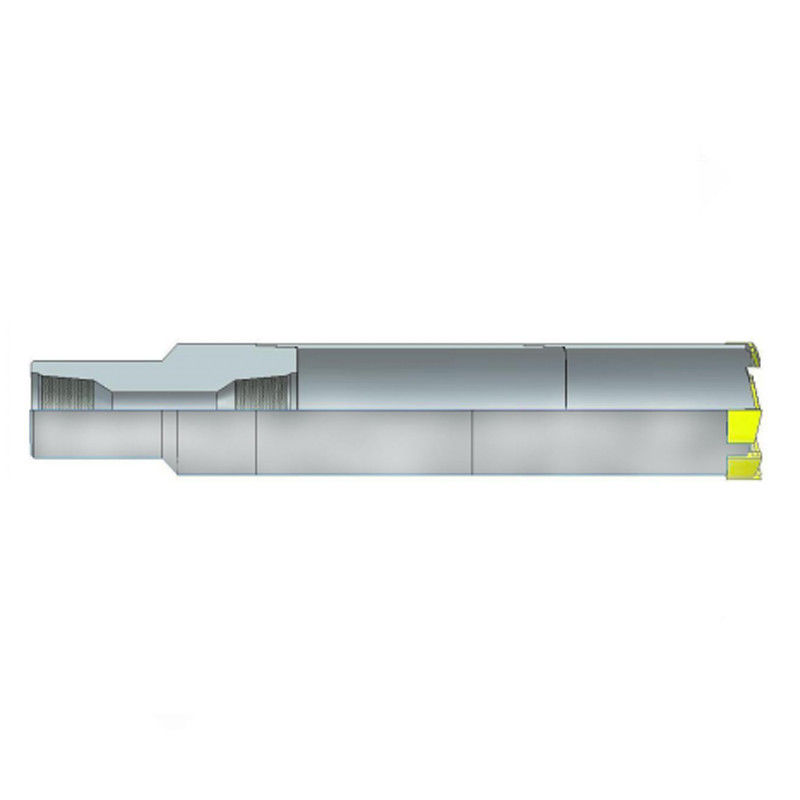

API Fishing Tools Washover Pipe with Size 6 5/8" for Oilfield
Product Overview
Things don’t always go as planned. In drilling operations, pipes can get stuck and a borehole can contain debris or even lost tools. The aim of a washover operation is to recover these items.

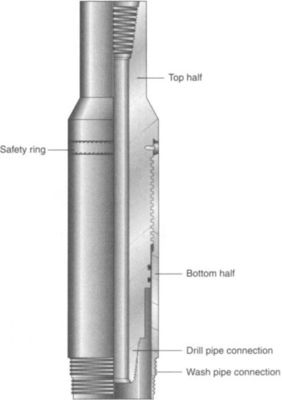

A washover pipe can be described as a fishing rod for drilling operations and may be fitted with any of a variety of special accouterments, which include screw-in subs and overshot tools. Some fittings are designed to recover undamaged pipe. It can also be extended with a drill string until it reaches the stuck pipe or other object.
A wide assortment of sizes is available ranging from 3 1/2" to 20".
Our Advantages:
1.Prompt Delivery.
2.Best after-sale service.
3.The product could be produce according to customer”s requirements.
4.Inquiries are typically replied within 24 hours.
Technical Data of TR Washover Pipe
| TYPE |
O.D mm |
I.D mm |
Min O.D Of using mm |
Diameter of the fish To be Cut mm |
Max.Tensile Load kN |
Max. Working TorqueN•m |
Sealing Pressure MPa |
| TXG114.30-8.56 | 114.30 | 97.18 | 120.65 | 80.90 | 390 | 9490 | 20 |
| TXG127-9.19 | 127.00 | 108.62 | 146.05 | 101.60 | 440 | 12202 | 20 |
| TXG139.70-9.17 | 139.70 | 121.36 | 152.4 | 117.48 | 500 | 14914 | 20 |
| TXG146.05-7.92 | 146.05 | 130.21 | 161.93 | 127.00 | 500 | 14914 | 20 |
| TXG146.05-9.00 | 146.05 | 128.05 | 161.93 | 120.65 | 560 | 16269 | 20 |
| TXG168.28-8.94 | 168.28 | 150.39 | 187.33 | 142.88 | 600 | 21693 | 15 |
| TXG177.80-9.19 | 177.80 | 159.42 | 200.03 | 152.40 | 640 | 24404 | 15 |
| TXG193.68-9.53 | 193.68 | 174.63 | 212.73 | 168.28 | 700 | 31183 | 15 |
| TXG193.68-10.92 | 193.68 | 171.83 | 212.73 | 165.10 | 810 | 36607 | 15 |
| TXG193.68-12.70 | 193.68 | 168.28 | 212.73 | 161.93 | 1060 | 43386 | 15 |
| TXG203.20-9.53 | 203.20 | 184.15 | 215.90 | 177.00 | 820 | 32539 | 15 |
| TXG206.38-9.40 | 206.38 | 187.58 | 215.90 | 177.80 | 830 | 32539 | 15 |
| TXG219.07-11.43 | 219.07 | 196.21 | 244.48 | 187.33 | 1100 | 47453 | 15 |
| TXG219.07-12.70 | 219.07 | 193.67 | 244.48 | 184.15 | 1220 | 54232 | 15 |
| TXG228.60-10.80 | 228.60 | 207.01 | 250.83 | 200.03 | 1260 | 47453 | 15 |
| TXG244.48-11.99 | 244.48 | 220.50 | 266.70 | 212.73 | 1450 | 67791 | 15 |
| TXG244.48-13.84 | 244.48 | 216.80 | 266.70 | 206.37 | 1560 | 81349 | 15 |
| TXG273.05-11.43 | 273.05 | 250.19 | 290.45 | 238.13 | 1620 | 81349 | 15 |
| TXG273.05-12.57 | 273.05 | 247.91 | 298.45 | 234.95 | 1640 | 88128 | 15 |
| TXG298.44-12.42 | 298.44 | 273.60 | 323.85 | 263.53 | 1800 | 108465 | 10 |
| TXG339.72-13.06 | 339.72 | 313.60 | 365.13 | 301.62 | 2020 | 149140 | 10 |
| TXG406.40-16.66 | 406.40 | 373.08 | 444.50 | 355.60 | 2500 | 254894 | 7.0 |
Our products Including below three series with full model types:
Solid control equipment: shale shaker, mud cleaner, mud agitator, centrifuge etc.
Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
Our staff are professional and experienced. By the hard efforts and united cooperation, we have established a wide sale network. Striving for excellent quality, better price and perfect service. Welcome new and old customers to order.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
