API 7-1 Oilfield Downhole Fishing Tools Washover Pipe
Product Overview

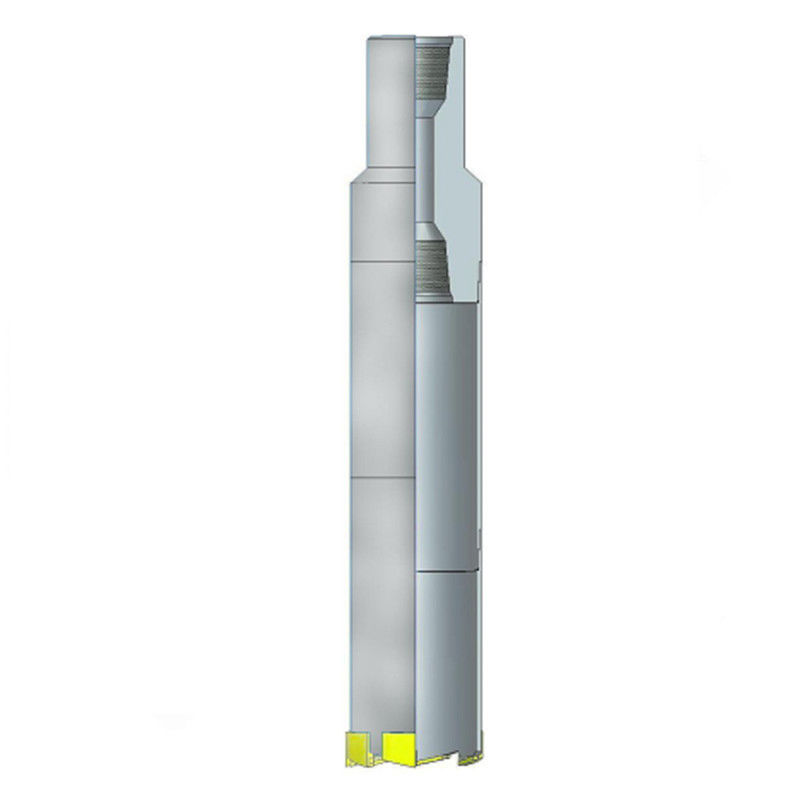

In fishing operations, a large-diameter pipe fitted with an internal grappling device and tungsten carbide cutting surfaces on the bottom. The washover pipe can be lowered over a fish in the wellbore and to latch onto and retrieve the fish.
Washover pipe is a special tool to release the stuck section of drill string in the well bore. ROBUST offers a complete range of washover pipe in the industry. ROBUST unique FJWP thread is a two-step double shoulder thread which assure quick make up and high torsion strength.
The two-stage thread used on the wash over pipe is a new-type connection, producing in the 80’s in America. Especially, the special wash over pipe is a serial product.
Our Service
We guarantee and uphold the highest standards in customer service, client satisfaction, and quality product delivery in the oilfield industry.
Let's join hands and work together to create a better future!
Xi'an TianRui Petroleum Machinery Equipment Company focus on steel pipe and tube for projec application for more than 10 years with good quality and reasonable price,has succeed to coopearated with Sheel,Lukoil and other famous oil&gas companies all over the world.
Key Technical Specifications of TR Washover Pipe
TYPE |
O.D mm |
I.D mm |
Min O.D Of using mm |
Diameter of the fish To be Cut mm |
Max.Tensile Load kN |
Max. Working TorqueN•m |
Sealing Pressure MPa |
TXG114.30-8.56 | 114.30 | 97.18 | 120.65 | 80.90 | 390 | 9490 | 20 |
TXG127-9.19 | 127.00 | 108.62 | 146.05 | 101.60 | 440 | 12202 | 20 |
TXG139.70-9.17 | 139.70 | 121.36 | 152.4 | 117.48 | 500 | 14914 | 20 |
TXG146.05-7.92 | 146.05 | 130.21 | 161.93 | 127.00 | 500 | 14914 | 20 |
TXG146.05-9.00 | 146.05 | 128.05 | 161.93 | 120.65 | 560 | 16269 | 20 |
TXG168.28-8.94 | 168.28 | 150.39 | 187.33 | 142.88 | 600 | 21693 | 15 |
TXG177.80-9.19 | 177.80 | 159.42 | 200.03 | 152.40 | 640 | 24404 | 15 |
TXG193.68-9.53 | 193.68 | 174.63 | 212.73 | 168.28 | 700 | 31183 | 15 |
TXG193.68-10.92 | 193.68 | 171.83 | 212.73 | 165.10 | 810 | 36607 | 15 |
TXG193.68-12.70 | 193.68 | 168.28 | 212.73 | 161.93 | 1060 | 43386 | 15 |
TXG203.20-9.53 | 203.20 | 184.15 | 215.90 | 177.00 | 820 | 32539 | 15 |
TXG206.38-9.40 | 206.38 | 187.58 | 215.90 | 177.80 | 830 | 32539 | 15 |
TXG219.07-11.43 | 219.07 | 196.21 | 244.48 | 187.33 | 1100 | 47453 | 15 |
TXG219.07-12.70 | 219.07 | 193.67 | 244.48 | 184.15 | 1220 | 54232 | 15 |
TXG228.60-10.80 | 228.60 | 207.01 | 250.83 | 200.03 | 1260 | 47453 | 15 |
TXG244.48-11.99 | 244.48 | 220.50 | 266.70 | 212.73 | 1450 | 67791 | 15 |
TXG244.48-13.84 | 244.48 | 216.80 | 266.70 | 206.37 | 1560 | 81349 | 15 |
TXG273.05-11.43 | 273.05 | 250.19 | 290.45 | 238.13 | 1620 | 81349 | 15 |
TXG273.05-12.57 | 273.05 | 247.91 | 298.45 | 234.95 | 1640 | 88128 | 15 |
TXG298.44-12.42 | 298.44 | 273.60 | 323.85 | 263.53 | 1800 | 108465 | 10 |
TXG339.72-13.06 | 339.72 | 313.60 | 365.13 | 301.62 | 2020 | 149140 | 10 |
TXG406.40-16.66 | 406.40 | 373.08 | 444.50 | 355.60 | 2500 | 254894 | 7.0 |
