Seamless Oilfield Downhole Fishing Tools Washover Pipe

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

Seamless Oilfield Downhole Fishing Tools Washover Pipe

Seamless Oilfield Downhole Fishing Tools Washover Pipe
Seamless Oilfield Downhole Fishing Tools Washover Pipe Seamless Oilfield Downhole Fishing Tools Washover Pipe Seamless Oilfield Downhole Fishing Tools Washover Pipe

Large Image :  Seamless Oilfield Downhole Fishing Tools Washover Pipe

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API, ISO
Model Number: TRTXG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000 Pcs Per Month
Detailed Product Description
Outer Diameter: 114.3 - 406.4 Mm Thickness: 8.56 - 16.66 Mm
Type: Seamless Steel Pipe Section Shape: Round
Processing Type: Forging Color: Blue
Advantage: High Performance Material: Iron, Alloy
High Light:

Fishing Tools Washover Pipe

,

Downhole Washover Pipe

,

Oilfield Washover Pipe

API 7-1 Oilfield Downhole Fishing Tools Washover Pipe



Product Overview


Washover pipe is a special tool to release the stuck section of drill string in the well bore. ROBUST offers a complete range of washover pipe in the industry. ROBUST unique FJWP thread is a two-step double shoulder thread which assure quick make up and high torsion strength.



Drive sub is a kit tool for washover work, which is used in connecting drill pipe and washover pipe.



Efficient washover shoes are special tools for milling falling objects under wll and repairing top of fish. Our company has various milling shoe with specification from φ73mm toφ273mm. We can also design according to customers requirements.



Technical Specifications of TR Washover Pipe



TYPE

O.D

mm

I.D

mm

Min O.D

Of using

mm

Diameter of the fish To be Cut

mm

Max.Tensile Load

kN

Max. Working TorqueN•m

Sealing Pressure

MPa

TXG114.30-8.56 114.30 97.18 120.65 80.90 390 9490 20
TXG127-9.19 127.00 108.62 146.05 101.60 440 12202 20
TXG139.70-9.17 139.70 121.36 152.4 117.48 500 14914 20
TXG146.05-7.92 146.05 130.21 161.93 127.00 500 14914 20
TXG146.05-9.00 146.05 128.05 161.93 120.65 560 16269 20
TXG168.28-8.94 168.28 150.39 187.33 142.88 600 21693 15
TXG177.80-9.19 177.80 159.42 200.03 152.40 640 24404 15
TXG193.68-9.53 193.68 174.63 212.73 168.28 700 31183 15
TXG193.68-10.92 193.68 171.83 212.73 165.10 810 36607 15
TXG193.68-12.70 193.68 168.28 212.73 161.93 1060 43386 15
TXG203.20-9.53 203.20 184.15 215.90 177.00 820 32539 15
TXG206.38-9.40 206.38 187.58 215.90 177.80 830 32539 15
TXG219.07-11.43 219.07 196.21 244.48 187.33 1100 47453 15
TXG219.07-12.70 219.07 193.67 244.48 184.15 1220 54232 15
TXG228.60-10.80 228.60 207.01 250.83 200.03 1260 47453 15
TXG244.48-11.99 244.48 220.50 266.70 212.73 1450 67791 15
TXG244.48-13.84 244.48 216.80 266.70 206.37 1560 81349 15
TXG273.05-11.43 273.05 250.19 290.45 238.13 1620 81349 15
TXG273.05-12.57 273.05 247.91 298.45 234.95 1640 88128 15
TXG298.44-12.42 298.44 273.60 323.85 263.53 1800 108465 10
TXG339.72-13.06 339.72 313.60 365.13 301.62 2020 149140 10
TXG406.40-16.66 406.40 373.08 444.50 355.60 2500 254894 7.0

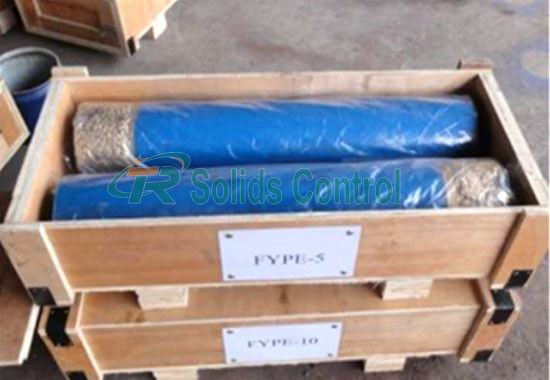

Package Details of Washover Pipe:

  • Normal packing: plywood case, wooden box or pallet
  • Suitable for ocean shipping and air shipping.
  • Max. weight for each package: 1500 Kg
  • Standard packing dimension: 1200 * 1100 * 1000 mm
  • Custom packing is available.
  • Special packing requirements should be known in advance.
