Product Details:
Payment & Shipping Terms:
|
| Outer Diameter: | 114.3 - 406.4 Mm | Thickness: | 8.56 - 16.66 Mm |
|---|---|---|---|
| Type: | Seamless Steel Pipe | Section Shape: | Round |
| Processing Type: | Forging | Color: | Blue |
| Advantage: | High Performance | Material: | Iron, Alloy |
| High Light: | Washover Seamless Steel Pipe,Forging 1/8" Seamless Steel Pipe,FJWP Thread Seamless Steel Pipe |
||

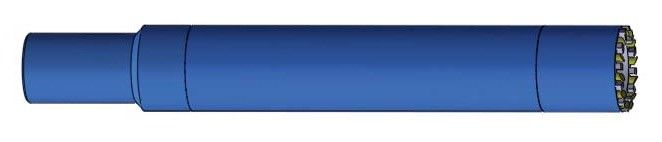

Tool Size (OD) 6-1/8" Washover Pipe BOX FJWP X PIN FJWP
Product Overview

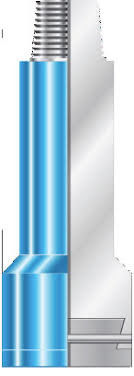

Washover pipe is a special tool to release the stuck section of drill string in the well bore. ROBUST offers a complete range of washover pipe in the industry. ROBUST unique FJWP thread is a two-step double shoulder thread which assure quick make up and high torsion strength.
The two-stage thread used on the wash over pipe is a new-type connection, producing in the 80’s in America. Especially, the special wash over pipe is a serial product.
Package Details:
1. Normal packing: plywood case, wooden box or pallet
2. Suitable for ocean shipping and air shipping.
3. Max. weight for each package: 1500 Kg
4. Standard packing dimension: 1200 * 1100 * 1000 mm
5. Special packing requirements should be known in advance.
6. Custom packing is available.
Technical Specifications of TR Washover Pipe
| TYPE |
O.D mm |
I.D mm |
Min O.D Of using mm |
Diameter of the fish To be Cut mm |
Max.Tensile Load kN |
Max. Working TorqueN•m |
Sealing Pressure MPa |
| TXG114.30-8.56 | 114.30 | 97.18 | 120.65 | 80.90 | 390 | 9490 | 20 |
| TXG127-9.19 | 127.00 | 108.62 | 146.05 | 101.60 | 440 | 12202 | 20 |
| TXG139.70-9.17 | 139.70 | 121.36 | 152.4 | 117.48 | 500 | 14914 | 20 |
| TXG146.05-7.92 | 146.05 | 130.21 | 161.93 | 127.00 | 500 | 14914 | 20 |
| TXG146.05-9.00 | 146.05 | 128.05 | 161.93 | 120.65 | 560 | 16269 | 20 |
| TXG168.28-8.94 | 168.28 | 150.39 | 187.33 | 142.88 | 600 | 21693 | 15 |
| TXG177.80-9.19 | 177.80 | 159.42 | 200.03 | 152.40 | 640 | 24404 | 15 |
| TXG193.68-9.53 | 193.68 | 174.63 | 212.73 | 168.28 | 700 | 31183 | 15 |
| TXG193.68-10.92 | 193.68 | 171.83 | 212.73 | 165.10 | 810 | 36607 | 15 |
| TXG193.68-12.70 | 193.68 | 168.28 | 212.73 | 161.93 | 1060 | 43386 | 15 |
| TXG203.20-9.53 | 203.20 | 184.15 | 215.90 | 177.00 | 820 | 32539 | 15 |
| TXG206.38-9.40 | 206.38 | 187.58 | 215.90 | 177.80 | 830 | 32539 | 15 |
| TXG219.07-11.43 | 219.07 | 196.21 | 244.48 | 187.33 | 1100 | 47453 | 15 |
| TXG219.07-12.70 | 219.07 | 193.67 | 244.48 | 184.15 | 1220 | 54232 | 15 |
| TXG228.60-10.80 | 228.60 | 207.01 | 250.83 | 200.03 | 1260 | 47453 | 15 |
| TXG244.48-11.99 | 244.48 | 220.50 | 266.70 | 212.73 | 1450 | 67791 | 15 |
| TXG244.48-13.84 | 244.48 | 216.80 | 266.70 | 206.37 | 1560 | 81349 | 15 |
| TXG273.05-11.43 | 273.05 | 250.19 | 290.45 | 238.13 | 1620 | 81349 | 15 |
| TXG273.05-12.57 | 273.05 | 247.91 | 298.45 | 234.95 | 1640 | 88128 | 15 |
| TXG298.44-12.42 | 298.44 | 273.60 | 323.85 | 263.53 | 1800 | 108465 | 10 |
| TXG339.72-13.06 | 339.72 | 313.60 | 365.13 | 301.62 | 2020 | 149140 | 10 |
| TXG406.40-16.66 | 406.40 | 373.08 | 444.50 | 355.60 | 2500 | 254894 | 7.0 |
Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer and supplier of all types of petroleum equipment. The company is located in Xi'an city, Shaan Xi Provice of China.
And we have many years of history in the petroleum equipment industry. Our main products include solid control equipment, drilling equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipes, vavle & pipe fitting and oilfield tools. Currently, our products is already exported to America, Middle East, Australia,Africa and 20 other countries and regions.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
