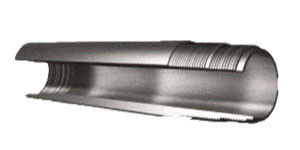

Oilfield OD 203mm Oil Fishing Tools Washover Pipe

OD 203mm Oil Fishing Tools Washover Pipe for Oilfield

Product Descrption

Washover pipe is the necessary tool for doing the washing operation. It adopts the connection of high strength pipe material and two-stage thread to assure the requirement of washing, avoiding some phenomenal such as the screw thread slipping, leaking, pipe breaking off, sticking pipe and so on which occurred by using common pipe. Therefore, it satisfies the need of the washing operation that the specifications of ordinary wash over cannot meet. For instance, washing the drill collar 8"in the 9 5/8"borehole and the drill collar 7"in the 8 1/2"borehole.

The two-stage thread used on the wash over pipe is a new-type connection, producing in the 80’s in America. Especially, the special wash over pipe is a serial product.

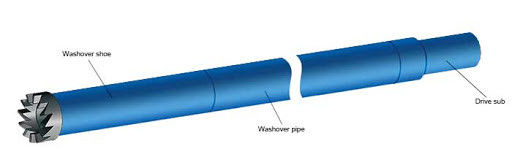

Washover Pipe Accessories

Drive Sub:
Drive Subs provide the crossover connection between fishing string and the washover pipe. Each is machined from high-grade alloy steel and heat treated to provide maximum strength and durability.

Lift Plug:
Lift Plug is designed to provide an economical method of handling washover strings. It is available in all thread types and size, has sufficient shoulder diameter to support handling the washover string.

Washover Safety Joint:
Washover safety joint is manufactured to provide safe and easy release and make-up whenever disengagement from the washover string becomes necessary. This dependable, field-tough tool is designed to transmit torque in either direction when placed in the washover string.

Parameters of TR Fishing Tool Washover Pipe
