Product Details:
Payment & Shipping Terms:
|
| Processing Type: | Forging | Size: | 5/8, 3/4, 7/8, 1, 1-1/8" |
|---|---|---|---|
| Grade: | C, K, D, KD, HL | Length: | 7518mm, 9042mm |
| Warranty: | 1 Year | Material: | Carbon Steel |
| High Light: | Oilfield Subsurface Tube Sucker Rod,API Tube Sucker Rod,7518mm Sucker Rod Pump |
||

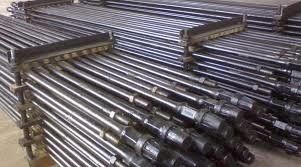

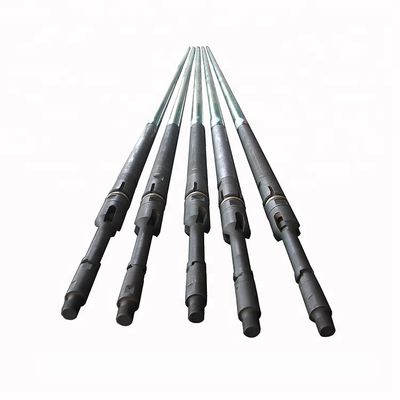

Oil Well Drilling API Oilfield Subsurface Tube Sucker Rod
Product Descrption
Sucker rod, as one of the key component of rod pumping equipment, serves to transmit surface power or motion to downhole sucker rod pumps.
The rods can be rigged with various centralizers, to protect rods, couplings, and oil well tubing from wear; rods can be additionally provided with mobile scrapers for removal of paraffin deposits. "D" class sucker rods (as per API specification) display enhanced strength and anticorrosion properties, and are highly competitive in terms of quality with the products of world famous manufacturers.
Main Advantages of Sucker Rod
Technical Parameters of Our Oilfield Sucker Rod
| Nominal Size | 1-1/8 (in) | 1-1/4 (in) | 1-1/2 (in) | ||||
| in. | mm | in. | mm | in. | mm | ||
| Outside Diameter | Dimension | 1.125 | 28.58 | 1.25 | 31.75 | 1.50 | 38.10 |
| Tolerances | +0.005 -0.010 |
+0.13 -0.25 |
+0.005 -0.010 |
+0.13 -0.25 |
+0.005 -0.010 |
+0.13 -0.25 |
|
| Nominal Diameterof Pin-thread | Dimension for referance | 0.938 | 23.83 | 1.188 | 30.18 | 1.375 | 34.93 |
| 1.063 | 27.00 | ||||||
| Note:sizes of sucker rods with which used | Nominal Dimension (for referance) | 5/8 | 7/8 | 1 | |||
| 3/4 | |||||||
| Note:Standard lengths | Dimension |
ft 22, 26,30,36, 40 |
m 4.9, 6.7,7.9, 9.1, 11.0,12.2 |
ft 22, 26,30,36, 40 |
m 4.9, 6.7,7.9, 9.1, 11.0,12.2 |
ft 22, 26,30,36, 40 |
m 4.9, 6.7,7.9, 9.1, 11.0,12.2 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is a leading manufacturer of solid control and drilling equipment and spare parts since 2010. Our products include the top solid control equipment, wellhead tools, downhole tools, hammer rock drilling tools , DTH drilling tools, construction tools, rock drill drifters& air jack hammers, coal mining tools, Oil drilling tools and so on.
Our quality control begins with the design stage and continues at every step of the manufacturing process. With high performance production line and inspection equipment, we will delivery qualified products to our customers. Our products with advanced international standards can meet the machinery of Altas Copco, Sandvik ,Furukawa etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
