Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Color: | Green Or Other |
|---|---|---|---|
| Warranty: | 12 Months | Pump Diameter: | 1 1/4-2 1/2" |
| Processing Type: | Casting | Length: | ≤7.5m |
| High Light: | API Sucker Rod Pump,Oilfield Subsurface Sucker Rod Pump,44mm Sucker Rod Pump |
||

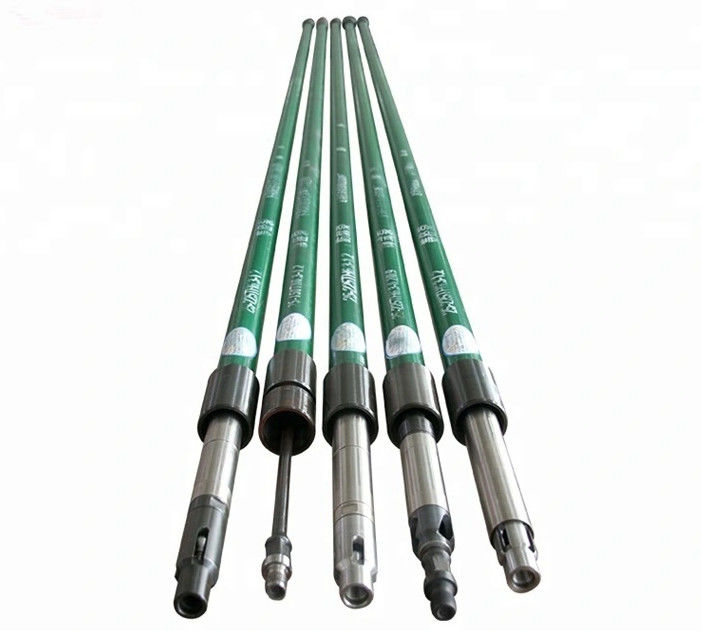

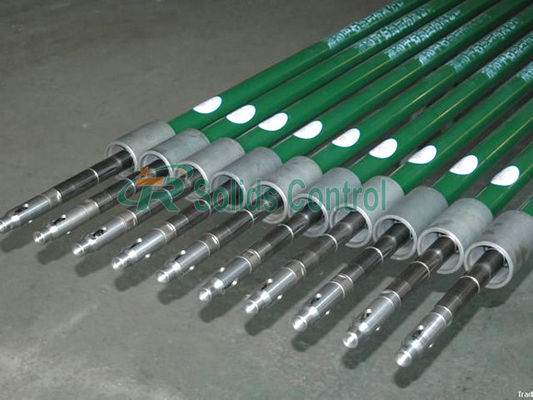

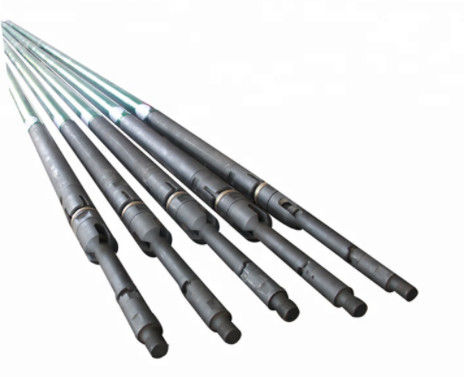

Oilfield Subsurface API Sucker Rod Pump with Diameter 44mm
Product Overview
Rod pump is applicable to the deep well and inclined well, with low liquid lever and small oil output. Meanwhile, the wells should have sufficient liquid supply and the sand and wax is not serious. The pumping depth is not above 3100 meters. During working, the maintain can be done by lifting sucker rod, instead of tubing. This method can reduce labor and improve the efficiency.
This is why our sucker rod pumps can be furnished with the components most suitable for your field of application and pumping operations can easily be extended to corrosive environments.
To achieve maximum performance, API subsurface pumps are machined with extra small clearance between the plunger and the inside wall of the barrel.
Working principle
Our rod pump is equipped with a cup seating nipple N11, cup seating nipple N11 connection on the tubing string, down to the bottom of the well with the tubing string. Plunger assembly connection on the sucker rod string and with the pump overall down to cup seating nipple N11 position together , pump with fixed inside the cup seating nipple N11, Plunger assembly with the sucker rod string up and down reciprocating movement to achieve pumping work.
Technical Performance & Characteristics of Rod Pump
Main Parameters of Our Sucker Rod Pump
| Type | Code | O.D (mm) | PlungerLength (m) | Barrel Length (m) | Outer Tube O.D (mm) | Sucker Rod O.D (mm) | Extended Joint Length (m) | ApplicableWell Conditions |
| Tubing Pump | 20/25-106TH | 28.5 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 15.9~ 19.1 | 0.6~0.9 | Oil wells contains salt, Sulfur, carbon dioxide, Bacteria, Other corrosive media and a small amount of sands. |
| 20/25-125TH | 31.8 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 15.9~ 19.1 | 0.6~0.9 | ||
| 20/25-150TH | 38.1 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 19.1 | 0.6~0.9 | ||
| 20/25-175TH | 44.5 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 19.1 | 0.6~0.9 | ||
| 25-200TH | 50.8 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-225TH | 57.2 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 30-275TH | 69.9 | 0.6~2.1 | 3.3~ 9.5 | 88.9 | 22.2 | 0.6~0.9 | ||
| 40-375TH | 95.3 | 0.6~2.1 | 3.3~ 9.5 | 114.3 | 25.4 | 0.6~0.9 | ||
| Sucker Rod Pump | 20-125RH | 31.8 | 0.6~2.1 | 3.3~ 9.5 | 60.3 | 19.1 | 0.6~0.9 | |
| 25-150RH | 38.1 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-175RH | 44.5 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-200RH | 50.8 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 30-225RH | 57.2 | 0.6~2.1 | 3.3~ 9.5 | 88.9 | 19.1 | 0.6~0.9 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited was established in 2010 at Xi'an city of China. We have obtained more than 150 national patents.The products have been exported to U.S.A, Canada, Peru, Ecuador, Venezuela, India, Saudi Arabia, Oman, Bahrain, Iran, Turkmenistan, Kazakhstan, Russia, Sudan,etc. We are Sinopec, CNPC, CNOOC, Shell, Chevron, GE, Schlumberger, Haliburton, Weatherford excellent supplier.
In recent years, company vigorously explores its international markets and expands external partnerships. Relying on high product quality, competitive price as well as efficient services, its products have been exported to America, Canada, Columbia, Venezuela, Mexico, UAE, Oman, Iran, India, Kazakhstan, Russia, Indonesia, etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
