Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Color: | Green, Blue Or Red |
|---|---|---|---|
| Barrel Surface: | Chrome Plate, Nickel-Phosphorous Plate | Warranty: | 12 Months |
| Pump Diameter: | 1 1/4-2 1/2" | ||
| High Light: | Sucker Rod Plunger Tubing Pump,Oilfield Plunger Tubing Pump,Sucker Rod Drill Spare Parts |
||

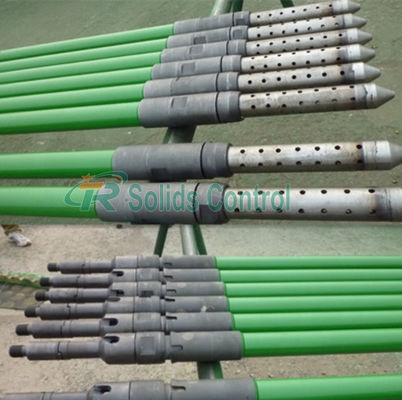

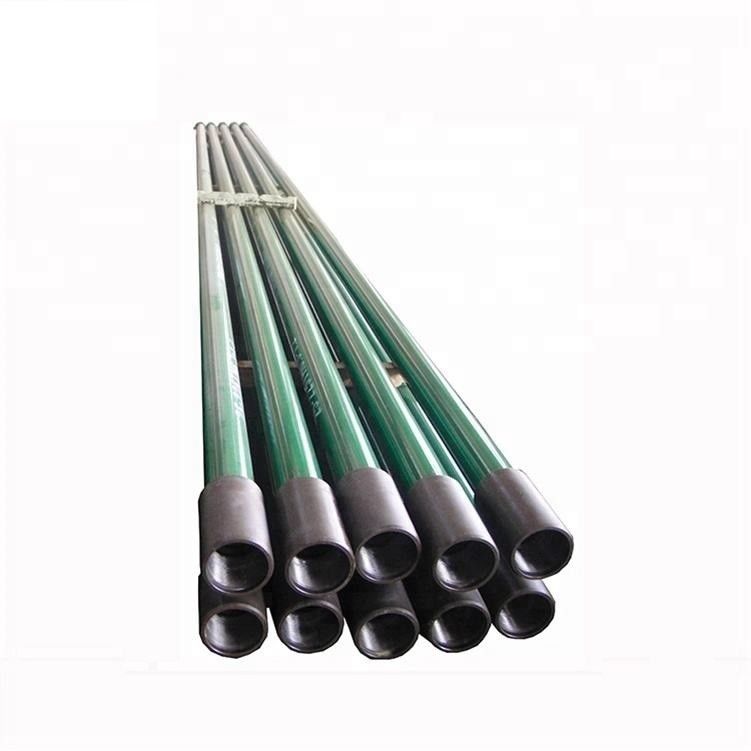

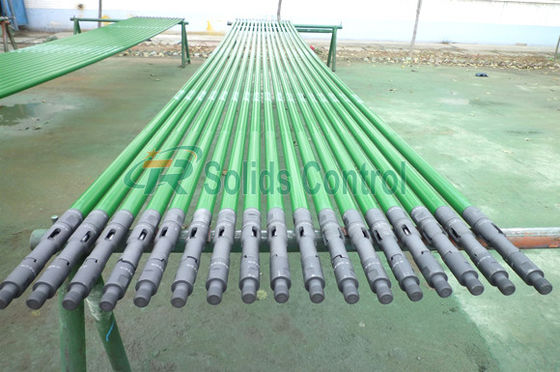

32 mm Metal Plunger Tubing Pump Sucker Rod Pump for Oilfield
Product Overview
Rod pump is also known as insert rod pump, it is one type of the conventional sucker rod pumps. The rod pump is connected to the sucker rod directly, it can be pulled out with sucker rod and does not influence the tubing, so the well inspection and workover is more convenient. It can save half times and reduce cost of the pumping test, thus the rod pump is suitable for the deeper well.
Depending on the wall thickness of the barrel, the rod pump can be classified as either a thin wall rod pump or a thick wall rod pump. At our company, we manufacture these insert rod pumps according to different requirements of customer’s.
Technical Performance & Characteristics
Working Principle of Sucker Rod Pump
In the upper stroke, the plunger is on the bottom of the tubing pump. Because the hydraulic pressure from the uper tubing, both up and traveling valves will close, When the plunger go up, the stationary valve open and oil will go through the pump, since the bottom pressure is higher than the uper pressure, then the fluid will be forced to go through the stationary valve and flow into the tubing.
In the down stroke,the traveling valve open and the presure drive the oil go into the plunger from the side holeof the extractor, then go into the tubing.
Technical Information of Our Sucker Rod Pump
| Type | Code | O.D (mm) | PlungerLength (m) | Barrel Length (m) | Outer Tube O.D (mm) | Sucker Rod O.D (mm) | Extended Joint Length (m) | ApplicableWell Conditions |
| Tubing Pump | 20/25-106TH | 28.5 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 15.9~ 19.1 | 0.6~0.9 | Oil wells contains salt, Sulfur, carbon dioxide, Bacteria, Other corrosive media and a small amount of sands. |
| 20/25-125TH | 31.8 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 15.9~ 19.1 | 0.6~0.9 | ||
| 20/25-150TH | 38.1 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 19.1 | 0.6~0.9 | ||
| 20/25-175TH | 44.5 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 19.1 | 0.6~0.9 | ||
| 25-200TH | 50.8 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-225TH | 57.2 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 30-275TH | 69.9 | 0.6~2.1 | 3.3~ 9.5 | 88.9 | 22.2 | 0.6~0.9 | ||
| 40-375TH | 95.3 | 0.6~2.1 | 3.3~ 9.5 | 114.3 | 25.4 | 0.6~0.9 | ||
| Sucker Rod Pump | 20-125RH | 31.8 | 0.6~2.1 | 3.3~ 9.5 | 60.3 | 19.1 | 0.6~0.9 | |
| 25-150RH | 38.1 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-175RH | 44.5 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-200RH | 50.8 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 30-225RH | 57.2 | 0.6~2.1 | 3.3~ 9.5 | 88.9 | 19.1 | 0.6~0.9 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is the first-grade network unit of Sinopec. Through years of efforts, it has gradually developed into a comprehensive company integrating the R&D, manufacturing of solid control equipment, oil drilling and workover equipment, oilfield special equipment, oil extraction equipment and well head and downhole tools, and the providing of petroleum engineering design and technical services.
Our products have been exported to 40 countries & areas around the world, 80% of our exsisting customers have done the business with us by more than 5 times, no one-off customer. We will continue to expand our range, and win more customers' trust with our better and better performance.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
