Product Details:
Payment & Shipping Terms:
|
| Diameter: | 28mm, 32mm,38mm,44mm,57mm | Barrel: | Carbon Steel |
|---|---|---|---|
| Usage: | Oil Extraction | Plunger Surface: | Nickel Spray, Chrome Plate |
| Package: | Iron Case Or Plywood Case | Color: | Green, Orange, Blue Or Customized |
| High Light: | Subsurface Insert Rod Pump,Oilfield Insert Rod Pump,Carbon Steel Drill Spare Parts |
||

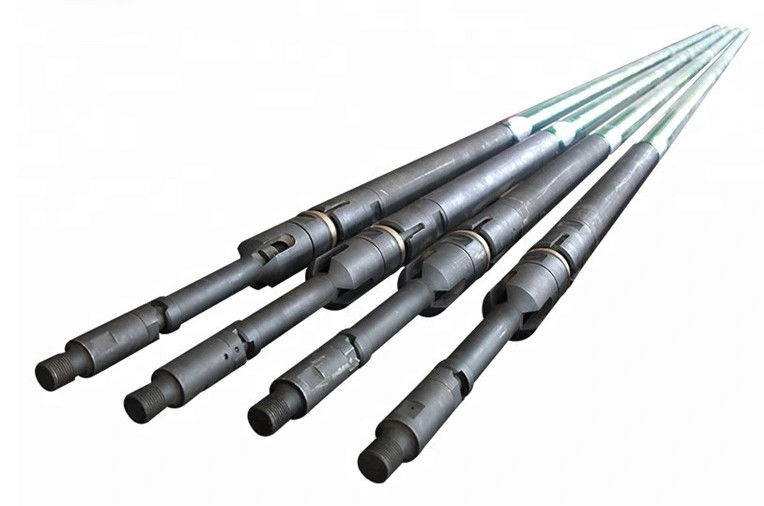

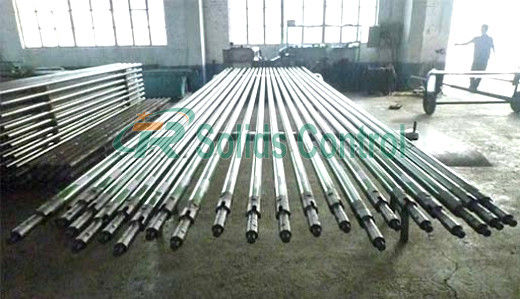

Oilfield Subsurface Insert Rod Pump / Sucker Rod Pump
Product Overview
We manufacture all subsurface pumps covered by API Spec 11AX, including all barrel and plunger materials and surface finishes.
This is why our sucker rod pumps can be furnished with the components most suitable for your field of application and pumping operations can easily be extended to corrosive environments.
To achieve maximum performance, API subsurface pumps are machined with extra small clearance between the plunger and the inside wall of the barrel.
How to Use Sucker Rod Pump?
Key Parameters of Our Sucker Rod Pump
| Type | Code | O.D (mm) | PlungerLength (m) | Barrel Length (m) | Outer Tube O.D (mm) | Sucker Rod O.D (mm) | Extended Joint Length (m) | ApplicableWell Conditions |
| Tubing Pump | 20/25-106TH | 28.5 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 15.9~ 19.1 | 0.6~0.9 | Oil wells contains salt, Sulfur, carbon dioxide, Bacteria, Other corrosive media and a small amount of sands. |
| 20/25-125TH | 31.8 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 15.9~ 19.1 | 0.6~0.9 | ||
| 20/25-150TH | 38.1 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 19.1 | 0.6~0.9 | ||
| 20/25-175TH | 44.5 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 19.1 | 0.6~0.9 | ||
| 25-200TH | 50.8 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-225TH | 57.2 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 30-275TH | 69.9 | 0.6~2.1 | 3.3~ 9.5 | 88.9 | 22.2 | 0.6~0.9 | ||
| 40-375TH | 95.3 | 0.6~2.1 | 3.3~ 9.5 | 114.3 | 25.4 | 0.6~0.9 | ||
| Sucker Rod Pump | 20-125RH | 31.8 | 0.6~2.1 | 3.3~ 9.5 | 60.3 | 19.1 | 0.6~0.9 | |
| 25-150RH | 38.1 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-175RH | 44.5 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-200RH | 50.8 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 30-225RH | 57.2 | 0.6~2.1 | 3.3~ 9.5 | 88.9 | 19.1 | 0.6~0.9 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited was established in Xi'an city, China. It is a professional manufacturer specializing in the research and development, design, manufacturing and sales of various series of petroleum equipment. The company attaches great importance to scientific research and development, perfects independent research and development, and has been equipped with experimental equipment and equipment. The company has developed dozens of high-efficiency special pumping equipment in accordance with the geological conditions of different oil fields in the past two decades. Requires products of various sizes, welcome OEM / ODM. The company has good after-sales service.
For years, Company always sticks to the “Customer-oriented" business philosophy and scientific management concept, and takes the providing of advanced products and quality services as its mission. By strictly following the international trade rules and adhering to the tenet of “Abiding by contracts & Keeping Promises” and the “win-win” purpose, it has established partnerships with internationally renowned enterprises, which provides a solid underpinning for company’s future development.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
