Product Details:
Payment & Shipping Terms:
|
| Diameter: | 28mm, 32mm,38mm,44mm,57mm | Barrel Surface: | Chrome Plate, Nickel-Phosphorous Plate |
|---|---|---|---|
| Warranty: | 12 Months | Barrel: | Carbon Steel |
| Usage: | Oil Extraction | Plunger Surface: | Nickel Spray, Chrome Plate |
| High Light: | Oil Extraction Sucker Rod Pump,Downhole Sucker Rod Pump,Carbon Steel Drill Spare Parts |
||

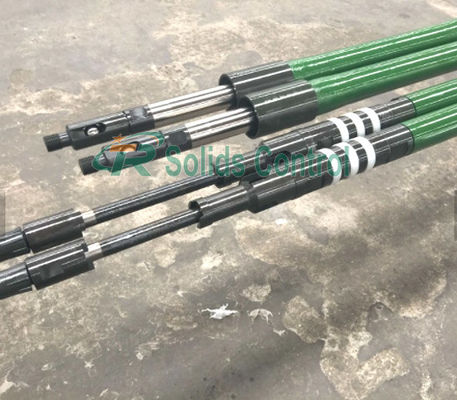

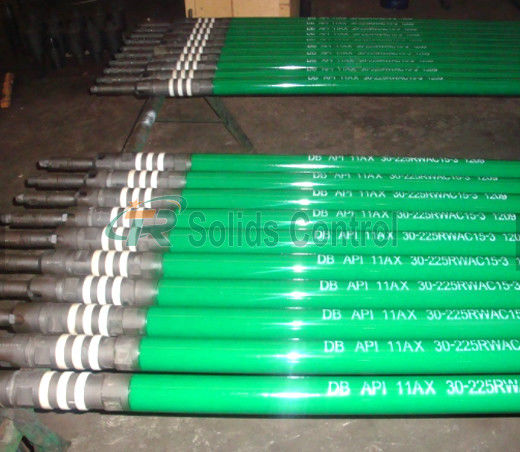

API 11AX Downhole Oil Extraction Tool Sucker Rod Pump
Product Overview
The subsurface sucker rod pump is an important equipment of rod extracting system that extracts the fluid in the oilwell powered by pumping units and sucker rod, which is also referred to as insert pump as its plunger is attached to, moves up and down with the sucker rod string. It is suitable for reducing the time of workover for deep well as it is not neccessary to pull all the tubing out of the well hole when checking the pump, which makes the operation quicker and the service life of tubing longer.The rod pump is in a state of free hanging, so it is suitable for deviated wells. According to seating mode ,the rod pump can be divided into two types: cup hold-down and mechanical hold-down. According to anchored position, the pump can be divided into top hold-down pumps and bottom hold-down pumps which include stationary barrel and traveling barrel types.
How to Use Sucker Rod Pump?
1. Before leaving the pump, you must check the factory mark and certificate on the pump. Confirm that it is the oil pump required for this oil well, and carefully check whether the pump barrel is bent, whether the exposed threads are damaged or corroded, and whether the connection parts of each thread are loose.
2. For the oil pump that has been in stock for more than one year, the plunger and pump barrel should be cleaned before going down the well, and the plunger should be pulled back and forth.
3. The well site where the pump is to be pumped must be kept clean and tidy to prevent sand or other things from falling into the well and affecting the normal pumping of the pump. A final inspection should be performed when lowering the pump. To ensure that the protective cap, plug and protective entanglement are all removed.
4. When the centralizer is used in the lower pump, the installation position of the lowermost centralizer should be as close as possible to the oil pump to ensure the alignment of the pump and the oil pipe, thereby reducing pump wear.
5. During the downhole work of the oil pump, periodic inspections must be carried out and the working conditions must be recorded.
6. In the case of lower rod pumps, you can first lower a supporting stub along the tubing to the specified lower pump depth; a complete set of rod pumps with (supporting the stub on the tubing string) supporting assembly with the sucker rod string Into the tubing, the depth of the pump must be sealed according to the position of the shorting of the lower support during the downhole process, and then the anti-impact distance of the pump is raised by 300mm, and the oil can be transferred into the pump.
Technical Parameters of Our Sucker Rod Pump
| Type | Code | O.D (mm) | PlungerLength (m) | Barrel Length (m) | Outer Tube O.D (mm) | Sucker Rod O.D (mm) | Extended Joint Length (m) | ApplicableWell Conditions |
| Tubing Pump | 20/25-106TH | 28.5 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 15.9~ 19.1 | 0.6~0.9 | Oil wells contains salt, Sulfur, carbon dioxide, Bacteria, Other corrosive media and a small amount of sands. |
| 20/25-125TH | 31.8 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 15.9~ 19.1 | 0.6~0.9 | ||
| 20/25-150TH | 38.1 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 19.1 | 0.6~0.9 | ||
| 20/25-175TH | 44.5 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 19.1 | 0.6~0.9 | ||
| 25-200TH | 50.8 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-225TH | 57.2 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 30-275TH | 69.9 | 0.6~2.1 | 3.3~ 9.5 | 88.9 | 22.2 | 0.6~0.9 | ||
| 40-375TH | 95.3 | 0.6~2.1 | 3.3~ 9.5 | 114.3 | 25.4 | 0.6~0.9 | ||
| Sucker Rod Pump | 20-125RH | 31.8 | 0.6~2.1 | 3.3~ 9.5 | 60.3 | 19.1 | 0.6~0.9 | |
| 25-150RH | 38.1 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-175RH | 44.5 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-200RH | 50.8 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 30-225RH | 57.2 | 0.6~2.1 | 3.3~ 9.5 | 88.9 | 19.1 | 0.6~0.9 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is the first-grade network unit of Sinopec. Through years of efforts, it has gradually developed into a comprehensive company integrating the R&D, manufacturing of solid control equipment, oil drilling and workover equipment, oilfield special equipment, oil extraction equipment and well head and downhole tools, and the providing of petroleum engineering design and technical services.
Our products have been exported to 40 countries & areas around the world, 80% of our exsisting customers have done the business with us by more than 5 times, no one-off customer. We will continue to expand our range, and win more customers' trust with our better and better performance.
We welcome the win-win cooperation relationship with the partners from any places in the world, each customer is our god and helper. Warmly welcome you to come to China and visit us!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
