Product Details:
Payment & Shipping Terms:
|
| Diameter: | 28mm, 32mm,38mm,44mm,57mm | Material: | Carbon Steel |
|---|---|---|---|
| Application: | Energy & Mining | Color: | Green, Blue Or Red |
| Barrel Surface: | Chrome Plate, Nickel-Phosphorous Plate | Warranty: | 12 Months |
| High Light: | Subsurface Sucker Tubing Pump,Oil Well Sucker Tubing Pump,32mm Sucker Tubing Pump |
||

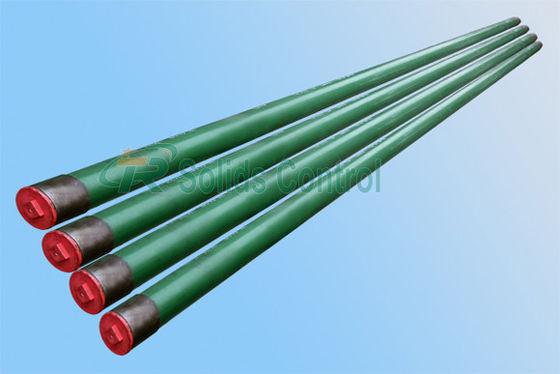

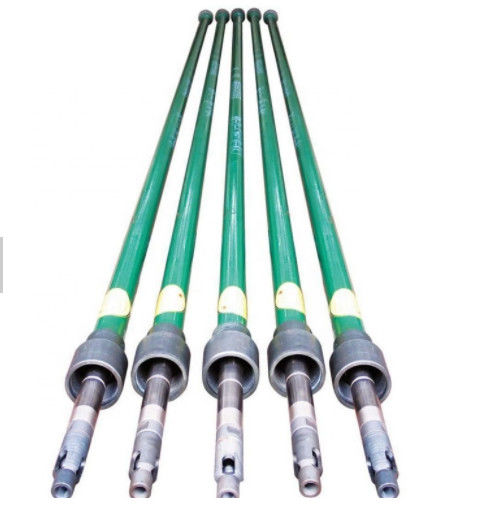

Green Color Oil Well Subsurface Sucker Rod Pump Tubing Pump
Product Overview
Rod pump is applicable to the deep well and inclined well, with low liquid lever and small oil output. Meanwhile, the wells should have sufficient liquid supply and the sand and wax is not serious. The pumping depth is not above 3100 meters. During working, the maintain can be done by lifting sucker rod, instead of tubing. This method can reduce labor and improve the efficiency.
Working Principle
In the upper stroke, the plunger is on the bottom of the tubing pump. Because the hydraulic pressure from the uper tubing, both up and traveling valves will close, When the plunger go up, the stationary valve open and oil will go through the pump, since the bottom pressure is higher than the uper pressure, then the fluid will be forced to go through the stationary valve and flow into the tubing.
In the down stroke,the traveling valve open and the presure drive the oil go into the plunger from the side holeof the extractor, then go into the tubing.
Technical Performance & Characteristics
Technical Data of Our Sucker Rod Pump
| Type | Code | O.D (mm) | PlungerLength (m) | Barrel Length (m) | Outer Tube O.D (mm) | Sucker Rod O.D (mm) | Extended Joint Length (m) | ApplicableWell Conditions |
| Tubing Pump | 20/25-106TH | 28.5 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 15.9~ 19.1 | 0.6~0.9 | Oil wells contains salt, Sulfur, carbon dioxide, Bacteria, Other corrosive media and a small amount of sands. |
| 20/25-125TH | 31.8 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 15.9~ 19.1 | 0.6~0.9 | ||
| 20/25-150TH | 38.1 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 19.1 | 0.6~0.9 | ||
| 20/25-175TH | 44.5 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 19.1 | 0.6~0.9 | ||
| 25-200TH | 50.8 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-225TH | 57.2 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 30-275TH | 69.9 | 0.6~2.1 | 3.3~ 9.5 | 88.9 | 22.2 | 0.6~0.9 | ||
| 40-375TH | 95.3 | 0.6~2.1 | 3.3~ 9.5 | 114.3 | 25.4 | 0.6~0.9 | ||
| Sucker Rod Pump | 20-125RH | 31.8 | 0.6~2.1 | 3.3~ 9.5 | 60.3 | 19.1 | 0.6~0.9 | |
| 25-150RH | 38.1 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-175RH | 44.5 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-200RH | 50.8 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 30-225RH | 57.2 | 0.6~2.1 | 3.3~ 9.5 | 88.9 | 19.1 | 0.6~0.9 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is the first-grade network unit of Sinopec. Through years of efforts, it has gradually developed into a comprehensive company integrating the R&D, manufacturing of solid control equipment, oil drilling and workover equipment, oilfield special equipment, oil extraction equipment and well head and downhole tools, and the providing of petroleum engineering design and technical services.
We are committed to build the company into an international first-class petroleum equipment supplier and warmly welcome business partners at home and abroad for joint operation in various fields to realize mutual benefits and common development.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
