Product Details:
Payment & Shipping Terms:
|
| Barrel Length: | 8-30 Feet | Tubing Connecting: | 2 3/8 UPTBG |
|---|---|---|---|
| Diameter: | 28mm, 32mm,38mm,44mm,57mm | Connecting Rod: | CYG19.1 |
| Processing Type: | Forging | Material: | Carbon Steel |
| High Light: | 57mm Tubing Sucker Rod Pump,API 11AX Sucker Rod Pump,Wear Resisting Drill Spare Parts |
||

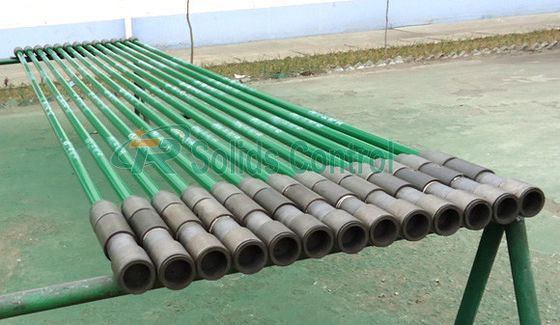

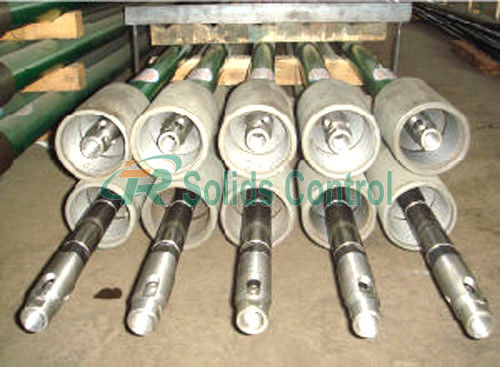

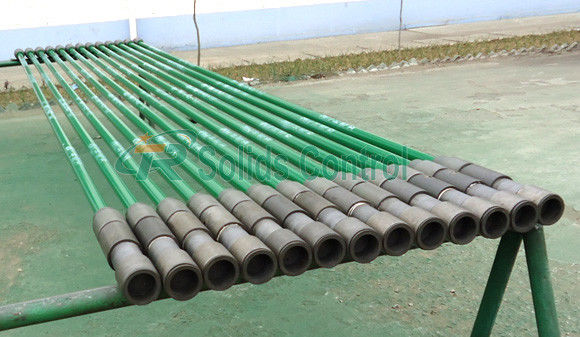

API 11AX Wear-Resisting Tubing Sucker Rod Pump for Heavy Oil
Product Descrption
The rod-type sucker pump is fixed and sealed with the sucker rod into the predetermined position in the tubing, so it is also called "insertion pump". It does not need to lift the tubing when checking the pump. It is convenient for operation and suitable for use in deep wells. ; Reduce the operation of the upper shackle of the oil pipe and extend the service life of the oil pipe; the pump body of the rod-type oil pump can swing around the fixing device, which is suitable for inclined wells.
TR could provide customers with a variety of subsurface sucker rod pump and accessories, such as tubing pump, rod pump and other special pumps, all the products are in line with API 11 AX standard. Pumps are made of high quality materials and by special technical production process, which improves the pump efficiency, prolongs lifetime, increases oil recovery rate, thus improve oil production, reduce cost and improve economic performance.
Technical Performance & Characteristics
1. The pump barrel is made of high-quality special tubes, and the internal surface is hardened through chrome or nickel-phosphorus plating, resulting high strength, rigidness and corrosion-resistant performance.
2. The surface of the plunger is subject to build-up welding with nickel-based alloy powder, thus the corrosion-resistant performance is enhanced.
3. The valve ball and seat are made of high carbon chromium stainless steel, tungsten carbide, titanium carbide or other materials, thus its service life is extended.
4. High pumping efficiency and long inspection cycle.
5. Compact structure and easy installation and maintenance.
Technical Parameters of Our Sucker Rod Pump
| ype | Code | O.D (mm) | PlungerLength (m) | Barrel Length (m) | Outer Tube O.D (mm) | Sucker Rod O.D (mm) | Extended Joint Length (m) | ApplicableWell Conditions |
| Tubing Pump | 20/25-106TH | 28.5 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 15.9~ 19.1 | 0.6~0.9 | Oil wells contains salt, Sulfur, carbon dioxide, Bacteria, Other corrosive media and a small amount of sands. |
| 20/25-125TH | 31.8 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 15.9~ 19.1 | 0.6~0.9 | ||
| 20/25-150TH | 38.1 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 19.1 | 0.6~0.9 | ||
| 20/25-175TH | 44.5 | 0.6~2.1 | 3.3~ 9.5 | 60.3~ 73.0 | 19.1 | 0.6~0.9 | ||
| 25-200TH | 50.8 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-225TH | 57.2 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 30-275TH | 69.9 | 0.6~2.1 | 3.3~ 9.5 | 88.9 | 22.2 | 0.6~0.9 | ||
| 40-375TH | 95.3 | 0.6~2.1 | 3.3~ 9.5 | 114.3 | 25.4 | 0.6~0.9 | ||
| Sucker Rod Pump | 20-125RH | 31.8 | 0.6~2.1 | 3.3~ 9.5 | 60.3 | 19.1 | 0.6~0.9 | |
| 25-150RH | 38.1 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-175RH | 44.5 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 25-200RH | 50.8 | 0.6~2.1 | 3.3~ 9.5 | 73.0 | 19.1 | 0.6~0.9 | ||
| 30-225RH | 57.2 | 0.6~2.1 | 3.3~ 9.5 | 88.9 | 19.1 | 0.6~0.9 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited was established in Xi'an city, China. It is a professional manufacturer specializing in the research and development, design, manufacturing and sales of various series of petroleum equipment. The company attaches great importance to scientific research and development, perfects independent research and development, and has been equipped with experimental equipment and equipment. The company has developed dozens of high-efficiency special pumping equipment in accordance with the geological conditions of different oil fields in the past two decades. Requires products of various sizes, welcome OEM / ODM. The company has good after-sales service.
Xi'An TianRui Petroleum Machinery Equipment Company Limited with perfect attitude, product and service, is going to make further development together with customers at home and abroad.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
