Product Details:
Payment & Shipping Terms:
|
| Steel Grade: | E75, G105, S135,X95 | Thread Type: | NC , REG |
|---|---|---|---|
| Processing Type: | Forging | Size: | 4 3/4" |
| High Light: | Oilfield DC Spiral Drill Collar,4 3/4" Spiral Drill Collar,4145H DC Spiral Drill Collar |
||

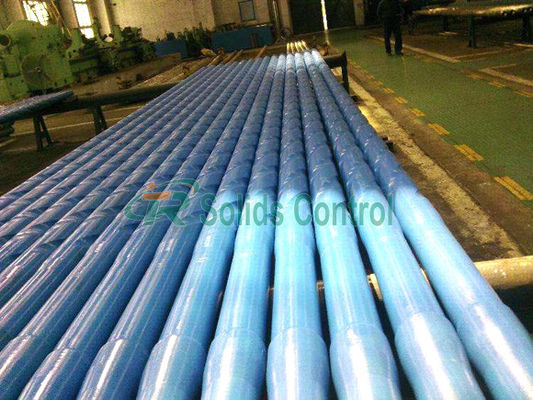

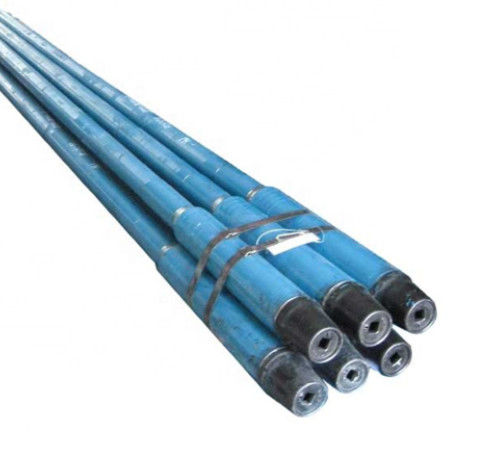

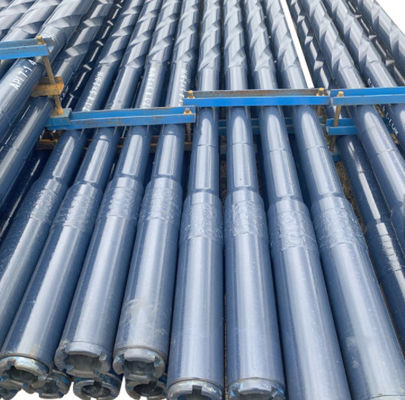

4 3/4 Inch DC Sprial Drill Collar API 7-1 for Oilfield
Product Descrption
Spiral drill collar is used to reduce contact area with hole so as to avoid efficiently bit sticking from diffirential pressure. The drill collars are manufactired strictly according to API Spec7-1 and Standard SY5144.
We supply slick drill collars, spiral drill collars and non-magnetic drill collars. Their sizes are from 3-1/8 to 11 inches. Besides the drill collars in the table below, we can supply other drill collars at customers' request.
Material: Our drill collars are manufactured from AISI 4145H modified steel, and are supplied in the "as rolled" surface finish condition. Alternative surface finishes are available.
Design Characterstics of Application of Our Drill Collar
Key Parameters of Our Oilfield Drill Collar
| Type | OD(mm) | ID(mm) | L(m) ±152.4mm d |
DF(mm) ±0.4 |
NC23-31 |
79.4 | 31.8 | 9.14 | 76.2 |
| NC26-35 | 88.9 | 38.1 | 9.14 | 82.9 |
| NC31-41 | 104.8 | 50.8 | 9.14or9.45 | 100.4 |
| NC35-47 | 120.6 | 50.8 | 9.14or9.45 | 114.7 |
| NC38-50 | 127 | 57.2 | 9.14or9.45 | 121 |
| NC44-60 | 152.4 | 57.2 | 9.14or9.45 | 144.5 |
| NC44-60 | 152.4 | 71.4 | 9.14or9.45 | 144.5 |
| NC46-62 | 158.8 | 57.2 | 9.14or9.45 | 149.2 |
| NC46-62 | 158.8 | 71.4 | 9.14or9.45 | 150 |
| NC46-65 | 165.1 | 57.2 | 9.14or9.45 | 154.8 |
| NC46-65 | 165.1 | 71.4 | 9.14or9.45 | 154.8 |
| NC46-67 | 171.4 | 57.2 | 9.14or9.45 | 159.5 |
| NC50-70 | 177.8 | 57.2 | 9.14or9.45 | 164.7 |
| NC50-70 | 177.8 | 71.4 | 9.14or9.45 | 164.7 |
| NC50-72 | 184.2 | 71.4 | 9.14or9.45 | 169.5 |
| NC56-77 | 196.8 | 71.4 | 9.14or9.45 | 185.3 |
| NC56-80 | 203.2 | 71.4 | 9.14or9.45 | 190.1 |
| 6-5/8REG | 209.6 | 71.4 | 9.14or9.45 | 195.6 |
| NC61-90 | 228.6 | 71.4 | 9.14or9.45 | 212.7 |
| 7-5/8REG | 241.3 | 76.2 | 9.14or9.45 | 223.8 |
| NC70-97 | 247.6 | 76.2 | 9.14or9.45 | 232.6 |
| NC70-100 | 254 | 76.2 | 9.14or9.45 | 237.3 |
| 8-5/8REG | 279.4 | 76.2 | 9.14or9.45 | 266.7 |
| NC50-67 | 171.5 | 71.4 | 9.14or9.45 | 159.5 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is an international comprehensive industrial group committed to making the extraction of oil and gas more efficient, providing customers one-stop solutions including R&D of high-end oil and gas equipment, oil and gas energy engineering and oil field integration services, industry + internet platform services, industry training and human resource services. Taking the full advantages of equipment, technology, services, talents and platforms, and multi-field business models development, We are upgrading from solutions providing to a win-win eco-industrial chain.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
