| Material: | Alloy Steel | OD: | 79.4-279.4 Mm |
|---|---|---|---|
| Steel Grade: | E75, G105, S135,X95 | Length: | 9150 Or 9450mm |
| High Light: | Slick Collar Drill Spare Parts,Oilfield Slick Drill Collar,Alloy Steel Drill Spare Parts |
||
Alloy Steel Oilfield Sprial and Slick Drill Collar API 7-1
Product Descrption

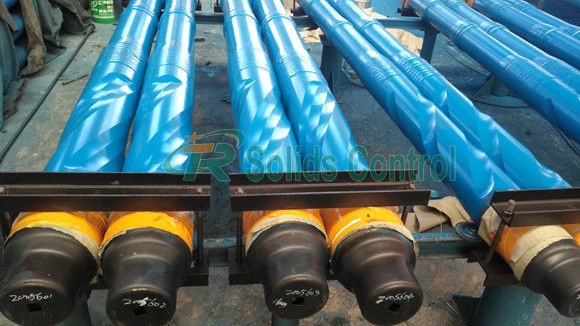

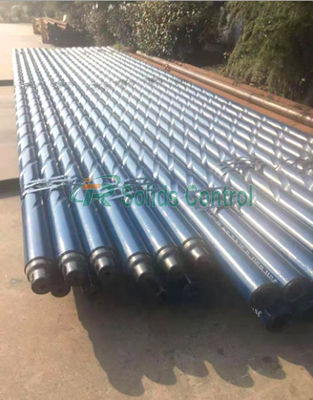

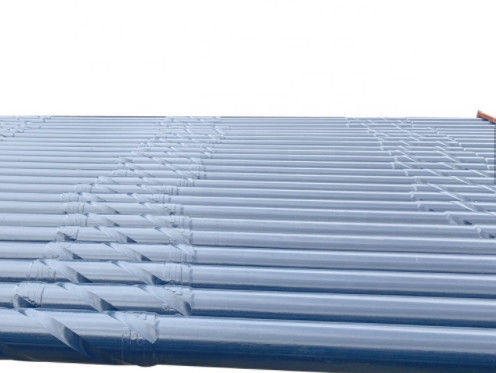

Our Spiral Drill Collar is made from AISI 4145H modified alloy steel, and completely meets the requirement of API Spec 7-1 and SY/T5144 Standard. It is a kind of drill collar which adds three dextrogyrate spiral groove on the outer circle of ordinary drill collar when processing, and the purpose is to reduce the area of contact and friction with the well wall, which can effectively prevent the pressure sticking. The single weight of the spiral drill collar is round about 4% lighter than the ordinary drill collar with the same specification, and the shape and thread of the both ends are the same with the drill collar.
Rigid Inspection Procedures: We inspect all our drill collars to ensure compliance with API SPEC 7-1 standards. These inspections include visual dimensional checks as well as ultrasonic inspections over the entire body of the drill collar.
Cold Rolling: Drill collar thread roots, as well as elevator recess upper radius, are cold-rolled. Cold rolling creates a compressive recess upper radius stress condition that increases fatigue life by minimizing crack initiation.
Phosphate-coated or Copper Plating: All connections are phosphate-coated or copper plated to improve resistance to corrosion.
Technical Specifications of Our Drill Collar
| Type | OD(mm) | ID(mm) | L(m) ±152.4mm d |
DF(mm) ±0.4 |
NC23-31 |
79.4 | 31.8 | 9.14 | 76.2 |
| NC26-35 | 88.9 | 38.1 | 9.14 | 82.9 |
| NC31-41 | 104.8 | 50.8 | 9.14or9.45 | 100.4 |
| NC35-47 | 120.6 | 50.8 | 9.14or9.45 | 114.7 |
| NC38-50 | 127 | 57.2 | 9.14or9.45 | 121 |
| NC44-60 | 152.4 | 57.2 | 9.14or9.45 | 144.5 |
| NC44-60 | 152.4 | 71.4 | 9.14or9.45 | 144.5 |
| NC46-62 | 158.8 | 57.2 | 9.14or9.45 | 149.2 |
| NC46-62 | 158.8 | 71.4 | 9.14or9.45 | 150 |
| NC46-65 | 165.1 | 57.2 | 9.14or9.45 | 154.8 |
| NC46-65 | 165.1 | 71.4 | 9.14or9.45 | 154.8 |
| NC46-67 | 171.4 | 57.2 | 9.14or9.45 | 159.5 |
| NC50-70 | 177.8 | 57.2 | 9.14or9.45 | 164.7 |
| NC50-70 | 177.8 | 71.4 | 9.14or9.45 | 164.7 |
| NC50-72 | 184.2 | 71.4 | 9.14or9.45 | 169.5 |
| NC56-77 | 196.8 | 71.4 | 9.14or9.45 | 185.3 |
| NC56-80 | 203.2 | 71.4 | 9.14or9.45 | 190.1 |
| 6-5/8REG | 209.6 | 71.4 | 9.14or9.45 | 195.6 |
| NC61-90 | 228.6 | 71.4 | 9.14or9.45 | 212.7 |
| 7-5/8REG | 241.3 | 76.2 | 9.14or9.45 | 223.8 |
| NC70-97 | 247.6 | 76.2 | 9.14or9.45 | 232.6 |
| NC70-100 | 254 | 76.2 | 9.14or9.45 | 237.3 |
| 8-5/8REG | 279.4 | 76.2 | 9.14or9.45 | 266.7 |
| NC50-67 | 171.5 | 71.4 | 9.14or9.45 | 159.5 |
Mechanical Property Of TR Drill Collar
OD Size |
Yield Strength σ0.2 Mpa(psi) |
Tensile Strength σb Mpa(psi) |
Elongation δ4% |
Reduction of area % |
Reduction of area % |
3-1/8~6-3/4 |
≥758 -110,000 |
≥827 -120,000 |
≥18 |
50 | ≥50 |
| 7~10 | ≥689 -100,000 |
≥758 -110,000 |
≥20 |
