Oil Gas NC Thread AISI 4145H Spiral Drill Collar

Oil Gas NC Thread AISI 4145H Spiral Drill Collar
Oil Gas NC Thread AISI 4145H Spiral Drill Collar Oil Gas NC Thread AISI 4145H Spiral Drill Collar Oil Gas NC Thread AISI 4145H Spiral Drill Collar

Large Image :  Oil Gas NC Thread AISI 4145H Spiral Drill Collar

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 7-1 Certificate, ISO Certificate
Model Number: TRDT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 8 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000 pcs per month
Detailed Product Description
Size: 4 1/8"~10" Steel Grade: 4145H
Application: Well Drilling Thread Type: NC , REG
High Light:

AISI 4145H Spiral Drill Collar

,

NC Thread Spiral Drill Collar

,

Spiral Collar Drill Spare Parts

Material AISI 4145H Sprial Drill Collar for Oil and Gas



Product Introduction


Spiral drill collar is used to reduce contact area with hole so as to avoid efficiently bit sticking from diffirential pressure. The drill collars are manufactired strictly according to API Spec7-1 and Standard SY5144. The drill collars are made of modified AISI 4145H chromium molybdenum alloy steel.

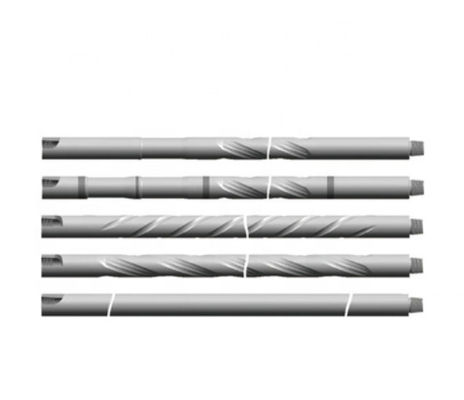

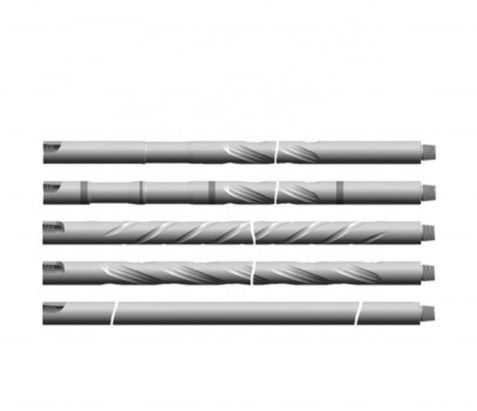

Our Spiral Drill Collar is made from AISI 4145H modified alloy steel, and completely meets the requirement of API Spec 7-1 and SY/T5144 Standard. It is a kind of drill collar which adds three dextrogyrate spiral groove on the outer circle of ordinary drill collar when processing, and the purpose is to reduce the area of contact and friction with the well wall, which can effectively prevent the pressure sticking. The single weight of the spiral drill collar is round about 4% lighter than the ordinary drill collar with the same specification, and the shape and thread of the both ends are the same with the drill collar.


Technical Parameters of Our Drill Collar



Type OD(mm) ID(mm)
L(m)
±152.4mm
d

DF(mm)
±0.4

NC23-31
79.4 31.8 9.14 76.2
NC26-35 88.9 38.1 9.14 82.9
NC31-41 104.8 50.8 9.14or9.45 100.4
NC35-47 120.6 50.8 9.14or9.45 114.7
NC38-50 127 57.2 9.14or9.45 121
NC44-60 152.4 57.2 9.14or9.45 144.5
NC44-60 152.4 71.4 9.14or9.45 144.5
NC46-62 158.8 57.2 9.14or9.45 149.2
NC46-62 158.8 71.4 9.14or9.45 150
NC46-65 165.1 57.2 9.14or9.45 154.8
NC46-65 165.1 71.4 9.14or9.45 154.8
NC46-67 171.4 57.2 9.14or9.45 159.5
NC50-70 177.8 57.2 9.14or9.45 164.7
NC50-70 177.8 71.4 9.14or9.45 164.7
NC50-72 184.2 71.4 9.14or9.45 169.5
NC56-77 196.8 71.4 9.14or9.45 185.3
NC56-80 203.2 71.4 9.14or9.45 190.1
6-5/8REG 209.6 71.4 9.14or9.45 195.6
NC61-90 228.6 71.4 9.14or9.45 212.7
7-5/8REG 241.3 76.2 9.14or9.45 223.8
NC70-97 247.6 76.2 9.14or9.45 232.6
NC70-100 254 76.2 9.14or9.45 237.3
8-5/8REG 279.4 76.2 9.14or9.45 266.7
NC50-67 171.5 71.4 9.14or9.45 159.5

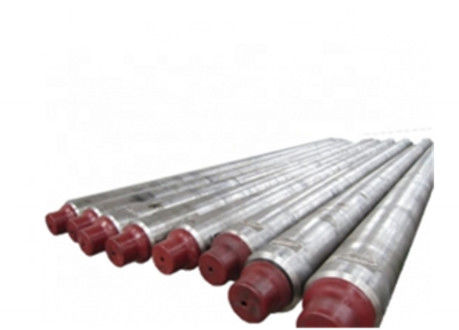

Oil Gas NC Thread AISI 4145H Spiral Drill Collar 0



Mechanical Property Of TR Drill Collar




OD Size

Yield Strength
σ0.2
Mpa(psi)

Tensile Strength σb
Mpa(psi)

Elongation
δ4%

Reduction of area
%

Reduction of area
%

3-1/8~6-3/4

≥758
-110,000

≥827
-120,000

≥18
50 ≥50
7~10
≥689
-100,000

≥758
-110,000

≥20
