Product Details:
Payment & Shipping Terms:
|
| Material: | Alloy Steel | Size: | 4 1/8"~10" |
|---|---|---|---|
| Length: | R2 | Steel Grade: | 4145H |
| Application: | Well Drilling | Color: | Red, Blue, Green |
| High Light: | Slick Spiral Drill Collar,Oilfield Spiral Drill Collar,4145H Spiral Drill Collar |
||

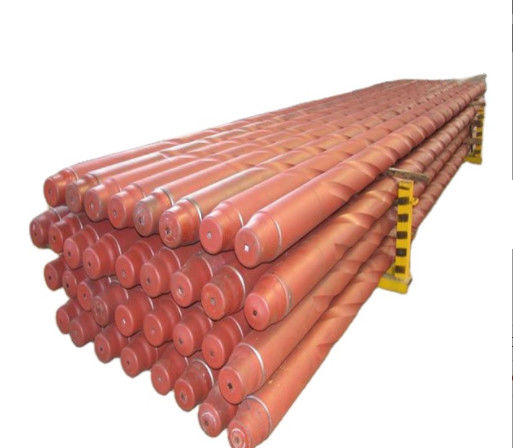

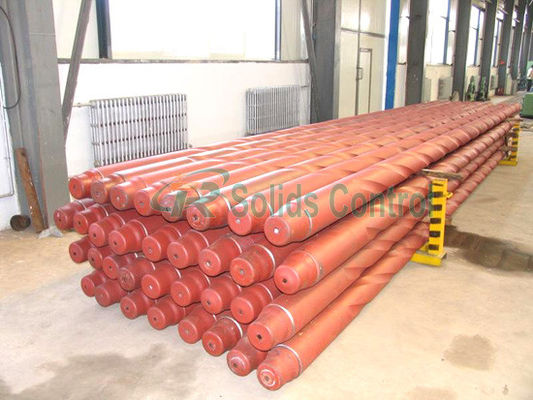

Oilfield Drilling API 7-1 Slick and Sprial Drill Collar
Product Introduction
The major function of spiral drill collar: It is to prevent drilling tools from pressure differential block during drilling, the spiral groove allows the mud flow freely around the drill collar to balance pressure preventing pressure block, so effectively avoid bit sticking from differential pressure. Spiral collar can also reduce the contact area between the wall and tubular body, so as to avoid from sticking phenomenon of drill string.
Our Spiral Drill Collar is made from AISI 4145H modified alloy steel, and completely meets the requirement of API Spec 7-1 and SY/T5144 Standard. It is a kind of drill collar which adds three dextrogyrate spiral groove on the outer circle of ordinary drill collar when processing, and the purpose is to reduce the area of contact and friction with the well wall, which can effectively prevent the pressure sticking. The single weight of the spiral drill collar is round about 4% lighter than the ordinary drill collar with the same specification, and the shape and thread of the both ends are the same with the drill collar.
Technical Data of Our Sprial Drill Collar
| Type | OD(mm) | ID(mm) | L(m) ±152.4mm d |
DF(mm) ±0.4 |
NC23-31 |
79.4 | 31.8 | 9.14 | 76.2 |
| NC26-35 | 88.9 | 38.1 | 9.14 | 82.9 |
| NC31-41 | 104.8 | 50.8 | 9.14or9.45 | 100.4 |
| NC35-47 | 120.6 | 50.8 | 9.14or9.45 | 114.7 |
| NC38-50 | 127 | 57.2 | 9.14or9.45 | 121 |
| NC44-60 | 152.4 | 57.2 | 9.14or9.45 | 144.5 |
| NC44-60 | 152.4 | 71.4 | 9.14or9.45 | 144.5 |
| NC46-62 | 158.8 | 57.2 | 9.14or9.45 | 149.2 |
| NC46-62 | 158.8 | 71.4 | 9.14or9.45 | 150 |
| NC46-65 | 165.1 | 57.2 | 9.14or9.45 | 154.8 |
| NC46-65 | 165.1 | 71.4 | 9.14or9.45 | 154.8 |
| NC46-67 | 171.4 | 57.2 | 9.14or9.45 | 159.5 |
| NC50-70 | 177.8 | 57.2 | 9.14or9.45 | 164.7 |
| NC50-70 | 177.8 | 71.4 | 9.14or9.45 | 164.7 |
| NC50-72 | 184.2 | 71.4 | 9.14or9.45 | 169.5 |
| NC56-77 | 196.8 | 71.4 | 9.14or9.45 | 185.3 |
| NC56-80 | 203.2 | 71.4 | 9.14or9.45 | 190.1 |
| 6-5/8REG | 209.6 | 71.4 | 9.14or9.45 | 195.6 |
| NC61-90 | 228.6 | 71.4 | 9.14or9.45 | 212.7 |
| 7-5/8REG | 241.3 | 76.2 | 9.14or9.45 | 223.8 |
| NC70-97 | 247.6 | 76.2 | 9.14or9.45 | 232.6 |
| NC70-100 | 254 | 76.2 | 9.14or9.45 | 237.3 |
| 8-5/8REG | 279.4 | 76.2 | 9.14or9.45 | 266.7 |
| NC50-67 | 171.5 | 71.4 | 9.14or9.45 | 159.5 |
Mechanical Property Of Our Drill Collar
OD Size |
Yield Strength σ0.2 Mpa(psi) |
Tensile Strength σb Mpa(psi) |
Elongation δ4% |
Reduction of area % |
Reduction of area % |
3-1/8~6-3/4 |
≥758 -110,000 |
≥827 -120,000 |
≥18 |
50 | ≥50 |
| 7~10 | ≥689 -100,000 |
≥758 -110,000 |
≥20 |
Xi'An TianRui Petroleum Machinery Equipment Company Limited is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning,manufacturing and quality monitoring & traceability to ensure that our products match the highest quality & reliability Standards similar to any International major in this field.
Xi'An TianRui Petroleum Machinery Equipment Company Limited with perfect attitude, product and service, is going to make further development together with customers at home and abroad.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
