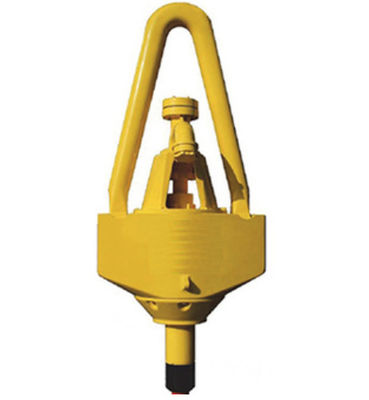

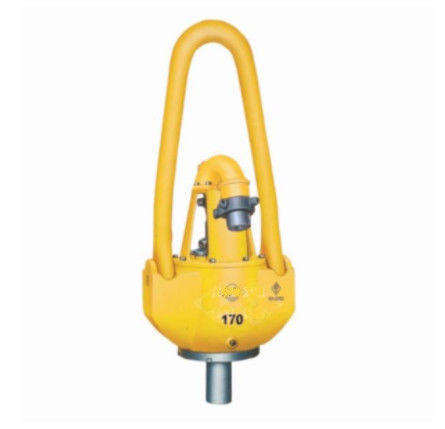

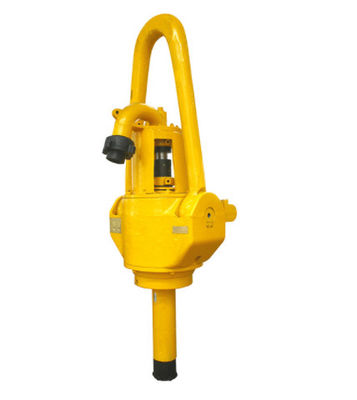

Double Pin 360KN SL160 PSL1 Drilling Rig Rotary Swivel

Double Pin 360KN SL160 PSL1 Drilling Rig Rotary Swivel
Double Pin 360KN SL160 PSL1 Drilling Rig Rotary Swivel Double Pin 360KN SL160 PSL1 Drilling Rig Rotary Swivel Double Pin 360KN SL160 PSL1 Drilling Rig Rotary Swivel

Large Image :  Double Pin 360KN SL160 PSL1 Drilling Rig Rotary Swivel

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 8A/8C
Model Number: TRSL
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pcs Per Month
Detailed Product Description
Rating Capacity: 360KN-1350KN Type: Hook Blocks
Standard: API 8C PSL1 Color: Yellow, Red
High Light:

PSL1 Drilling Rig Rotary Swivel

,

SL160 Drilling Rig Rotary Swivel

,

360KN Drilling Rig Rotary Swivel

Drilling Rig Rotary Swivel Model SL160 API Spec 8C



Product Overview



Power Swivel is the device installing on the of servicing rig, to provide rotating power. Except the use for such workover jobs as casing milling, milling, drilling cement plug and bridge plug and fishing, it is also used for sidetracking drilling, drilling open hole and coring. The product is designed and manufactured according to API 8C specifications.



Our Drilling Swivel has two categories, common swivel and double duty swivel. Double duty swivel is common swivel combined with spinner. With standard bails and double pin alloy steel sub. The gooseneck of the drilling rig swivel is provided with an outlet for wire line logging. With standard gooseneck joints, threads are in compliance with API Spec. 5B. Wash pipe packing set assembly adopts cassette structure. It can be exchanged quickly without disassemble rotary hose and gooseneck.



Specialities of Our Oilfield Swivel



  • Double pin threaded alloy steel sub is optional.
  • Low temperature resistant Swivels for use in alpine regions can also be provided according to customer requirements.
  • Optional 3LP and 4LP inner and outer spiral water hose joint threads.
  • Ordinary Swivels are mainly composed of lifting ring, gooseneck tube, packing device, shell, central tube main bearing and joints. The lower joint is connected to the kelly rod through the standard thread, and the upper lifting ring is hooked. The neck tube and the hose can be connected by a standard threaded joint union as required.
  • The flushing pipe packing assembly adopts a box structure, which can be quickly replaced on the drill floor without removing the hose and gooseneck.
  • The Swive lcomplies with the American Petroleum Institute APLSpec 8c PSL1 product specification.



Technical Specifications of Our Oilfield Swivel



MODEL
SL70
SL110
SL135
SL160
SL225
XSL225
XSL450
Max. static load (Ibf)
151740
25290
303492
35969
505820
505820
1011640
Working load of main bearing (Ibf)
67440
101164
224808
269770
337213
377213
562022
Gooseneck pipe thread
2 3/8" TBG
4 1/2" NPT
4 1/2" TBG
4 1/2" TBG
4 1/2" TBG
4" NPT
4"NPT
Bottom thread of central pipe joint
2 7/8" UP DP
4 1/2" REG LH
5 1/2" REG LH
5 1/2" REG LH
6 5/8 REG LH
6 5/8 REG LH
6 5/8"REG LH
Max. working pressure (psi)
2143
3000
5000
5000
5000
5000
5000
Opening diameter of central pipe (in)
1.96
2.5
2.99
2.99
2.99
2.99
2.99
Overall dimension (ft)
5.57×1.49×0.98
5.53×0.93×1.67
7.41×2.21×2.44
7.87×2.33×2.47
8.53×2.56×2.60
9.45x3.37x3.49
9.89×3.59×3.49
Mass (Ib)
606
741
1711
2176
2925
5666
6746
