| Size: | 2-1/2" ~ 6" | Material: | 4145H |
|---|---|---|---|
| Application: | Oil And Gas Well Drilling | Length: | R1~R3 |
| High Light: | AISI 4145H Drill Kelly,Oilfield Drill Kelly,R3 Drill Kelly |
||

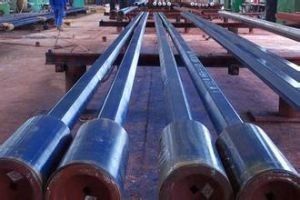

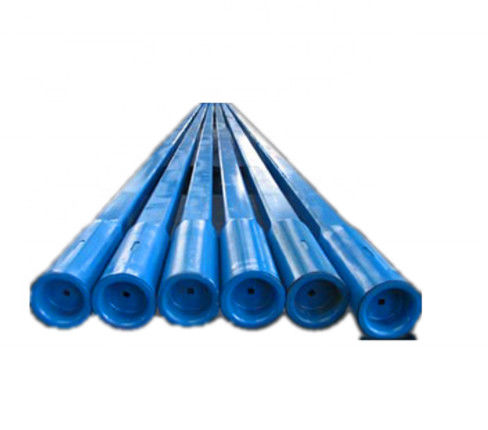

API 7-1 Square or Hexagonal Kelly for Oilfield Drilling
Product Introduction
Kelly is on the top of the drill stem. Kelly is main driver of the whole drill string. It transmits drill stem weight and torsional energy from the rotary table through the drill string to the bit at the bottom of the hole. When assembled with down hole motor and Turbodrill tools, Kelly should bare the stem weight and Reverse torque,it will Measure the depth of a well and provide a circulation channel. Our Kelly consists of a driving part (square or hexagonal), upper joint (LH connection) and lower joint (RH connection).
Square drill kelly are made from AISI 4145H alloy bars that are quenched and tempered full length. A hardness range of 285 to 341 BHM and a minimum impact value of 54 Joules as per ASTM A 370 are maintained one inch bellow the surface at room temperature. To improve resistance to galling, all connections are phosphate-coated with an API thread compond. Each bar used to manufacture kellys has been examined with magnetic partice inspections and ultrsonic inspections.
When ordering please specify:
Features of Our Square or Hexagonal Kelly
Technical Data. of Our Square or Hexagonal Kelly
| Kelly size | 63.5 | 76.2 | 88.9 | 108 | 108 | 133.4 | 133.4 | ||
| 2 1/2 | 3 | 3 1/2 | 4 1/4 | 4 1/4 | 5 1/4 | 5 1/4 | |||
| Lengthdrive Section | LD Standard | 11280 | 11280 | 11280 | 11280 | 11280 | 11280 | 11280 | |
| LD optional | 15540 | 15540 | 15540 | 15540 | |||||
| Lengthoverall | L Standard | 12190 | 12190 | 12190 | 12190 | 12190 | 12190 | 12190 | |
| L optional | 16460 | 16460 | 16460 | 16460 | |||||
| Length Drive Section | DFL Across flate | 63.5 | 76.2 | 88.9 | 108 | 108 | 133.4 | 133.4 | |
| DC Across cornere | 83.3 | 100 | 115.1 | 141.3 | 141.3 | 175.4 | 175.4 | ||
| DCC Across flate | 82.55 | 98.43 | 122.7 | 139.7 | 139.7 | 171.45 | 171.45 | ||
| RC Radlue | 7.9 | 9.5 | 12.7 | 12.7 | 12.7 | 15.9 | 15.9 | ||
| RCC Radlue | 41.3 | 49.2 | 56.4 | 69.9 | 69.9 | 85.7 | 85.7 | ||
| Wall thickness eccentric bore | 11.43 | 11.43 | 11.43 | 12.07 | 12.07 | 15.88 | 15.88 | ||
| Upper box connection | Thread size and style LF | Standard | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG | 6 5/8 REG |
| Optional | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | 4 1/2 REG | ||||
| OD | Du Standard | 196.9 | 196.9 | 196.9 | 196.9 | 196.9 | 196.9 | 196.9 | |
| Du Optional | 146.1 | 146.1 | 146.1 | 146.1 | 146.1 | ||||
| Bevel diameter | Lu | 406.4 | 406.4 | 406.4 | 406.4 | 406.4 | 406.4 | 406.4 | |
| DF Standard | 186.1 | 186.1 | 186.1 | 186.1 | 186.1 | 186.1 | 186.1 | ||
| DF Optional | 134.5 | 134.5 | 134.5 | 134.5 | 134.5 | ||||
| Lower pin connection | Label | NC26 | NC31 | NC38 | NC46 | NC50 | 5 1/2 FH | NC56 | |
| Outsize diameter | 85.7 | 104.8 | 120.7 | 158.8 | 161.9 | 177.8 | 177.8 | ||
| LL | 508 | 508 | 508 | 508 | 508 | 508 | 508 | ||
| DF Bevel diameter | 82.9 | 100.4 | 116.3 | 145.3 | 154 | 170.7 | 171.1 | ||
| Inside diameter | 31.8 | 44.5 | 57.2 | 71.4 | 71.4 | 82.6 | 82.6 | ||
