Single Row Tapered 20mm Split Crossed Roller Bearing

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

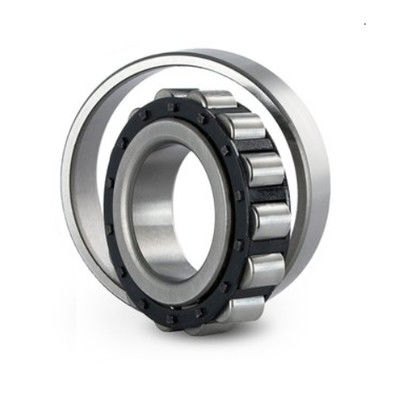

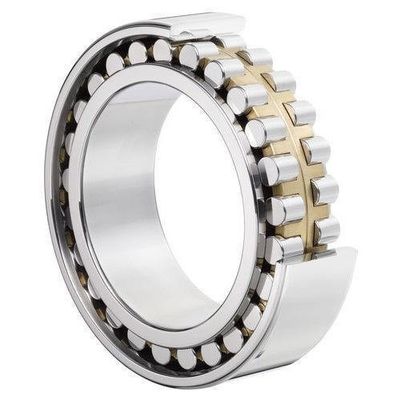

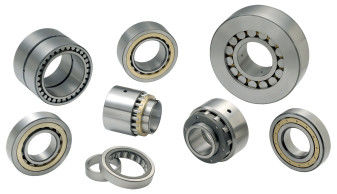

Single Row Tapered 20mm Split Crossed Roller Bearing

Single Row Tapered 20mm Split Crossed Roller Bearing
Single Row Tapered 20mm Split Crossed Roller Bearing Single Row Tapered 20mm Split Crossed Roller Bearing Single Row Tapered 20mm Split Crossed Roller Bearing

Large Image :  Single Row Tapered 20mm Split Crossed Roller Bearing

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: ISO9001 Certificate
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: In stock
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000 pcs per month
Detailed Product Description
Model Number: RN336 Precision Rating: C3P4
Hardness: Quenching Seal Type: No Seal
High Light:

20mm Split Crossed Roller Bearing

,

800mm Split Crossed Roller Bearing

,

ISO9001 Tapered Roller Bearing

RN336 Single Row Split Cylindrical Crossed Roller Bearing

Product Introduction

The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.



In applications where heavy axial loads have to be supported, cylindrical roller thrust bearings are the most suitable. This is because they are designed to contain shock loads, are stiff and the axial space required is little. They only support axial loads that are acting in a single direction.


Characterstics of Our Cylindrical Roller Bearing


  • Less coefficient of friction, High limiting speed, Large size range, Variations of structure.
  • Large size range:inner diameter from 20mm-800mm.
  • Variations of structure: NU,N,NJ,NF,NUP,NH,NCL...V,NB,NU...V,NNU,NNCF,NNCL,NNCS,FC,FCD,FCDP.
  • Tapered Roller Bearings are designed such like cup. Cone and rollers have tapered surfaces whose apexes converge at a common point on the bearing axis.
  • Single-row tapered roller bearing is able to carry radial and axial load in one directions simultaneously because an axial component of produced when this type of bearings loaded radically, two bearings are used together facing one another, or two or more bearings are matched and used.



Technical Info. of Our Cylidrical Roller Bearing

Bearing For Mud Pump F-500
  Old PN New PN Weight d*D*B
Pinion Shaft Bearing 32828 NU3228X2M 18.7 140*250*82.55
Main Bearing 3053738H 23138CA/W33 34.4 190*320*104
Eccentric Wheel Bearing 92984QU NUP464779Q4/C9YA4 55.8 419.1*558.8*76.2
Cross Head Bearing 354920Q NNAL6/101.6Q4/W33XYA2 13.5 101.6*171.45*133.35



Bearing For Mud Pump F-800
  Old PN New PN Weight d*D*B
Pinion Shaft Bearing 32828 NU3228X2M 18.7 180*280*82.6
Main Bearing 3053738H 23138CA/W33 34.4 240*400*128
Eccentric Wheel Bearing 92984QU NUP464779Q4/C9YA4 55.8 419.1*558.8*76.2
Cross Head Bearing 254735Q NNAL6/177.8-1Q4/W33XYA2 13.5 177.8*244.475*161.925



Bearing For Mud Pump F-1000
  Old PN New PN Weight d*D*B
Pinion Shaft Bearing 4G32840H NU3040X2M/C4 38.4 220*320*88.9
Main Bearing 453156H 24056CA/W33 69.2 280*420*104
Eccentric Wheel Bearing 929/558.8QU NUP464744Q4/C9 83.4 558.8*685.8*100
Cross Head Bearing 254936Q NNAL6/177.8-Q4/W33XYA 34.2 177.8*257.175*196.85



Bearing For Mud Pump F-1300
  Old PN New PN Weight d*D*B
Pinion Shaft Bearing 32844 NU3040X3M 38.4 220*350*98.4
Main Bearing 4053160H 24060CA/W33 97.6 300*460*160
Eccentric Wheel Bearing

928/660.4QU

NUP464776Q4/C9/YA4 129 660.4*812.8*107.95
Cross Head Bearing 254941QU NNAL6/206.375Q4/W33XYA2 44.9 206.375*285.7*222.25



Bearing For Mud Pump F-1600
  Old PN New PN Weight d*D*B
Pinion Shaft Bearing 32844 NU3040X3M 38.4 220*350*98.4
Main Bearing 3003760Y 23160/W33 127 300*500*160
Eccentric Wheel Bearing 928/660.4QU NUP464776Q4/C9/YA4 129 660.4*86.36*107.95
Cross Head Bearing 254941QU NNAL6/206.375Q4/W33XYA2 44.9 206.375*285.75*222.25



Single Row Tapered 20mm Split Crossed Roller Bearing 0


We are professional bearing supplier and manufacturer, not only the trade company, we are engaged in bearing industry more than 10 years. And we have a wide variety of bearings in huge stocks.



Our Advantages


*Have been professional in researching, developing, producing & marketing high precision bearings since the year 2004;
* Many YRT & ZKLDF series bearings are on stock; Factory directly provide, most competitive price;
* Advanced CNC equipment, guarantee product accuracy & stability;
* One stop purchasing, product include cross roller bearing, rotary table bearing, robotic bearing, slewing bearing, angular contact ball bearing, large and extra large custom made bearing, diameter from 20~9800mm;
* Excellent pre-sale & after sale service. We can go to customers’ project site if needed.
* Professional technical & exporting team ensure excellent product design, quotation, delivering documentation & custom clearance.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
