Oilfield Superior Performance Steel Pipe Rubber Stabbing Guide

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

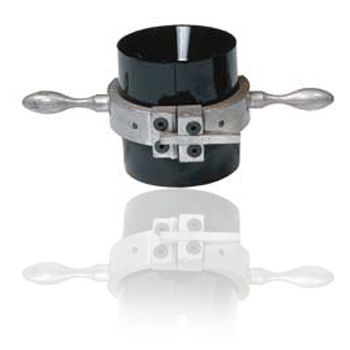

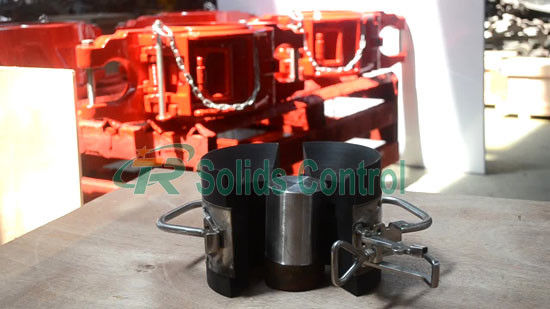

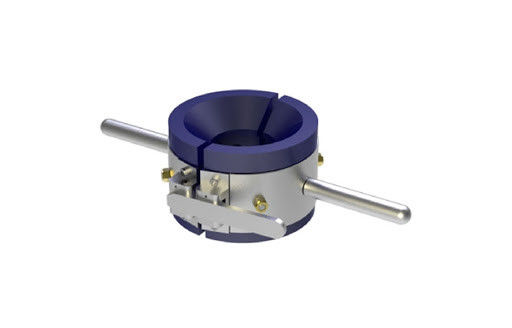

Oilfield Superior Performance Steel Pipe Rubber Stabbing Guide

Oilfield Superior Performance Steel Pipe Rubber Stabbing Guide
Oilfield Superior Performance Steel Pipe Rubber Stabbing Guide Oilfield Superior Performance Steel Pipe Rubber Stabbing Guide Oilfield Superior Performance Steel Pipe Rubber Stabbing Guide

Large Image :  Oilfield Superior Performance Steel Pipe Rubber Stabbing Guide

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 5CT, ISO 9001
Model Number: TRSG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 mts Per Month
Detailed Product Description
Size: 2 3/8"-20" Market: USA Middle Esat Asia Australia
Application Industry: Energy & Mining Color: Black,Red
Package: Wooden Case Material: Carbon Steel

Oilfield Superior Performance Steel Pipe Rubber Stabbing Guide



Product Descrption


When stabbing joints of pipe, the geometry of the stabbing guide ensures the two joints are perfectly concentric, allowing them to be screwed together and torqued properly.



The casing Stabbing Guide is a chucking tool in connection quick, it not only a guiding role, as well as protect the thread for pipe connections. This SG stabbing guide is simple in structure, safe and reliable, and easy for operation. Applies to tubing, casing fast on the buckle, easy to operate, can effectively prevent the deduction process to string thread damage. The tool is spring loaded to closed position by a torsion spring and provided with a pair of hand grip levers to facilitate opening, placement, and removal.



Stabbing guides model SG is mainly used for protecting pipe connections when the male and female connectors for tubing and casing are stabbed during oil or nature gas well drilling and well repairing operations. This stabbing guide is simple in structure safe and reliable, and easy to operation.



Technical Data. of Our Casing Stabbing Guide



Model Applicable diameter of tubulars ( in )
SG 2 3 / 8 T 2 3 / 8 Tubing
SG 2 7 / 8 T 2 7 / 8 Tubing
SG 3 1 / 2 T 3 1 / 2 Tubing
SG 4 T 4 Tubing
SG 4 1 / 2 T 4 1 / 2 Tubing
SG 4 1 / 2 C 4 1 / 2 Casing
SG 5 C 5 Casing
SG 5 1 / 2 C 5 1 / 2 Casing
SG 6C 6 Casing
SG 6 5 / 8 C 6 5 / 8 Casing
SG 7C 7 Casing
SG 7 5 / 8 C 7 5 / 8 Casing
SG 8 5 / 8 C 8 5 / 8 Casing
SG 9 5 / 8 C 9 5 / 8 Casing
SG 10 3 / 4 C 10 3 / 4 Casing
SG 11 3 / 4 C 11 3 / 4 Casing
SG 13 3 / 8 C 13 3 / 8 Casing
SG 13 5 / 8 C 13 5 / 8 Casing
SG 14C 14 Casing
SG 16C 16 Casing
SG 18 5 / 8 C 18 5 / 8 Casing
SG 20C 20 Casing



Design Features of Our Stabbing Guide



  1. Screw thread and coupling are not damaged with composite material used.
  2. The operation of latch lock is flexible and convenient.
  3. It has a relatively large guiding conical surface.
  4. Nitrile rubber material or Nylon material is better material for long-life operation.
  5. Stabbing guide is adaptable to the outside diameter of the new or worn coupling, through adjusting the length of latch screw.

Oilfield Superior Performance Steel Pipe Rubber Stabbing Guide 0



Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. is a professional manufacturer of drilling equipments and tools which is located in Xi'an City, Shaanxi Province, enjoying convenient transportation.



Our products Including below three series with full model types:
Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
