Product Details:
Payment & Shipping Terms:
|
| Size: | 2 3/8"-20" | Market: | USA Middle Esat Asia Australia |
|---|---|---|---|
| Condition: | Brand New | Application Industry: | Energy & Mining |
| High Light: | API Casing Tubing Stabbing Guide,2 3/8" Stabbing Guide,Nitrile Rubber Tubing Stabbing Guide |
||

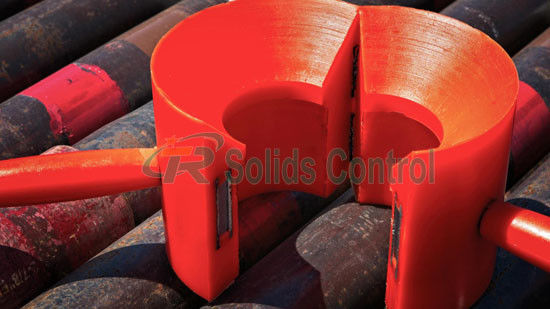

API Casing and Tubing Handing Tools Stabbing Guide
Product Descrption
Stabbing guides are designed to prevent damage during make up. It manufactured from high -grade steel and nitrile rubber material or Nylon material, it is easy to operate and can protect the screw thread of the pipes effectively. The guides are used available for tubing, casing and drill pipe.
The casing Stabbing Guide is a chucking tool in connection quick, it not only a guiding role, as well as protect the thread for pipe connections. This SG stabbing guide is simple in structure, safe and reliable, and easy for operation. Applies to tubing, casing fast on the buckle, easy to operate, can effectively prevent the deduction process to string thread damage. The tool is spring loaded to closed position by a torsion spring and provided with a pair of hand grip levers to facilitate opening, placement, and removal.
Stabbing Guide are available from 2-3/8" to 20".
Technical Specifications of Our Casing Stabbing Guide
| Model | Applicable diameter of tubulars ( in ) |
| SG 2 3 / 8 T | 2 3 / 8 Tubing |
| SG 2 7 / 8 T | 2 7 / 8 Tubing |
| SG 3 1 / 2 T | 3 1 / 2 Tubing |
| SG 4 T | 4 Tubing |
| SG 4 1 / 2 T | 4 1 / 2 Tubing |
| SG 4 1 / 2 C | 4 1 / 2 Casing |
| SG 5 C | 5 Casing |
| SG 5 1 / 2 C | 5 1 / 2 Casing |
| SG 6C | 6 Casing |
| SG 6 5 / 8 C | 6 5 / 8 Casing |
| SG 7C | 7 Casing |
| SG 7 5 / 8 C | 7 5 / 8 Casing |
| SG 8 5 / 8 C | 8 5 / 8 Casing |
| SG 9 5 / 8 C | 9 5 / 8 Casing |
| SG 10 3 / 4 C | 10 3 / 4 Casing |
| SG 11 3 / 4 C | 11 3 / 4 Casing |
| SG 13 3 / 8 C | 13 3 / 8 Casing |
| SG 13 5 / 8 C | 13 5 / 8 Casing |
| SG 14C | 14 Casing |
| SG 16C | 16 Casing |
| SG 18 5 / 8 C | 18 5 / 8 Casing |
| SG 20C | 20 Casing |
Key Advantages of Our Stabbing Guide
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. has obtained the ISO9001 Quality System Certification and Certificate of Authority to Use the Official API Monogram issued by the American Petroleum Institute since 2000. It has also passed the annual review to date tiger rig has been dedicated to the design and manufacturing of oilfield equipment. High levels of expertise have been attained in the fields of forging, heat treatment and mechanical processing.
They are exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia , African, Australia,Europe etc.Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
