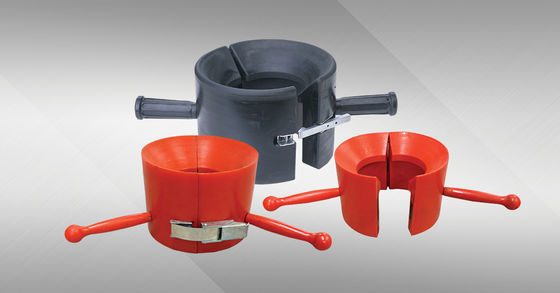

Solids Control Drilling API 5CT Casing Stabbing Guide

Solids Control Drilling API 5CT Casing Stabbing Guide
Solids Control Drilling API 5CT Casing Stabbing Guide Solids Control Drilling API 5CT Casing Stabbing Guide Solids Control Drilling API 5CT Casing Stabbing Guide

Large Image :  Solids Control Drilling API 5CT Casing Stabbing Guide

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 5CT, ISO 9001
Model Number: TRSG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60000 mts Per Month
Detailed Product Description
Size: 2 3/8"-20" Market: USA Middle Esat Asia Australia
Advantage: High Performance Condition: Brand New
High Light:

API 5CT Casing Stabbing Guide

,

Oilfield Drilling Casing Stabbing Guide

,

Solids Control Casing Stabbing Guide

Stabbing Guide (2-3/8"-20") for API 5CT Casing and Tubing Pipe



Product Overview


Stabbing guide model SG is easy to operate and can protect the screw thread of pipes effectively. Our Stabbing Guide is designed to protect pipe connectors when coupling tubing or casing, stabbing guide is simple in structure, safe and reliable, and easy for operation. Our stabbing Guide are available from 2-3/8" to 20".



There are always two main features when referring to stabbing guide geometry: the thru-bore (top) and the counterbore (bottom). The counterbore slides over and rests on the box end of the pipe (female), while the thru-bore guides the pin threads (male) to align with the box threads. It is common practice to make the thru-bore and counterbore out of a strong, durable material that is somewhat elastic. These types of materials vary widely; care should be taken to select one that will stand up to all working conditions it may encounter including extreme temperatures, drilling fluids, corrosive chemicals, water, impact, fatigue, etc.



Technical Parameters of Our Casing Stabbing Guide



Model Applicable diameter of tubulars ( in )
SG 2 3 / 8 T 2 3 / 8 Tubing
SG 2 7 / 8 T 2 7 / 8 Tubing
SG 3 1 / 2 T 3 1 / 2 Tubing
SG 4 T 4 Tubing
SG 4 1 / 2 T 4 1 / 2 Tubing
SG 4 1 / 2 C 4 1 / 2 Casing
SG 5 C 5 Casing
SG 5 1 / 2 C 5 1 / 2 Casing
SG 6C 6 Casing
SG 6 5 / 8 C 6 5 / 8 Casing
SG 7C 7 Casing
SG 7 5 / 8 C 7 5 / 8 Casing
SG 8 5 / 8 C 8 5 / 8 Casing
SG 9 5 / 8 C 9 5 / 8 Casing
SG 10 3 / 4 C 10 3 / 4 Casing
SG 11 3 / 4 C 11 3 / 4 Casing
SG 13 3 / 8 C 13 3 / 8 Casing
SG 13 5 / 8 C 13 5 / 8 Casing
SG 14C 14 Casing
SG 16C 16 Casing
SG 18 5 / 8 C 18 5 / 8 Casing
SG 20C 20 Casing



Specialities of Our Oilfield Stabbing Guide



  1. Screw thread and coupling are not damaged with composite material used.
  2. Nitrile rubber material or Nylon material is better material for long-life operation.
  3. It has a relatively large guiding conical surface.
  4. The operation of latch lock is flexible and convenient.
  5. Stabbing guide is adaptable to the outside diameter of the new or worn coupling, through adjusting the length of latch screw.

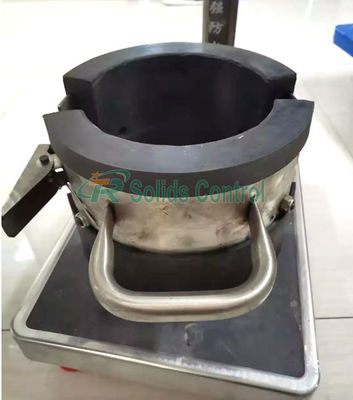

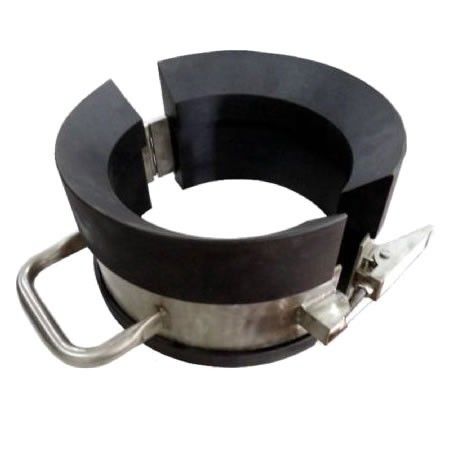

Solids Control Drilling API 5CT Casing Stabbing Guide 0



FAQ


1)Why choose us?
We can provide you best quality with reasonable price.
2)How can I know the material is correct and acceptable?
Material certificate (inspection certificate) is available on Request.
3)I cannot find the products I want on your site. Are you able to help me to locate it?
Yes, we will try our best to give you the product you want.
4) What products you are specialized in?
We are specialized in all kinds of tubing protectors.





Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
