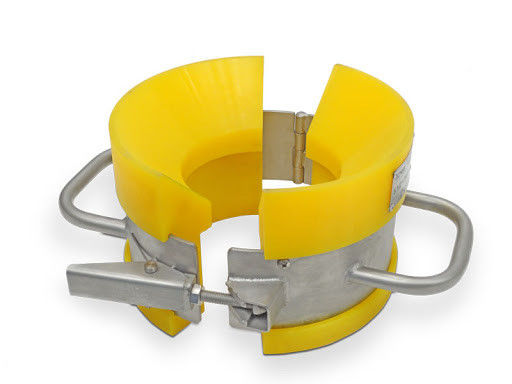

Casing API 5CT 2 3/8" Well Drilling Stabbing Guide

Casing API 5CT 2 3/8" Well Drilling Stabbing Guide
Casing API 5CT 2 3/8" Well Drilling Stabbing Guide Casing API 5CT 2 3/8" Well Drilling Stabbing Guide Casing API 5CT 2 3/8" Well Drilling Stabbing Guide

Large Image :  Casing API 5CT 2 3/8" Well Drilling Stabbing Guide

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 5CT, ISO 9001
Model Number: TRSG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 60000 mts Per Month
Detailed Product Description
Size: 2 3/8"-20" Market: USA Middle Esat Asia Australia
Advantage: High Performance Condition: Brand New
High Light:

2 3/8" Well Drilling Stabbing Guide

,

API 5CT Drilling Stabbing Guide

,

Casing Well Drilling Stabbing Guide

Well Drilling Protection Tool Stubbing Guide with API 5CT



Product Overview



The casing Stabbing Guide is a chucking tool in connection quick, it not only a guiding role, as well as protect the thread for pipe connections. This SG stabbing guide is simple in structure, safe and reliable, and easy for operation. Applies to tubing, casing fast on the buckle, easy to operate, can effectively prevent the deduction process to string thread damage. The tool is spring loaded to closed position by a torsion spring and provided with a pair of hand grip levers to facilitate opening, placement, and removal.



There are always two main features when referring to stabbing guide geometry: the thru-bore (top) and the counterbore (bottom). The counterbore slides over and rests on the box end of the pipe (female), while the thru-bore guides the pin threads (male) to align with the box threads. It is common practice to make the thru-bore and counterbore out of a strong, durable material that is somewhat elastic. These types of materials vary widely; care should be taken to select one that will stand up to all working conditions it may encounter including extreme temperatures, drilling fluids, corrosive chemicals, water, impact, fatigue, etc.



Main Parameters of Our Casing Stabbing Guide



Model Applicable diameter of tubulars ( in )
SG 2 3 / 8 T 2 3 / 8 Tubing
SG 2 7 / 8 T 2 7 / 8 Tubing
SG 3 1 / 2 T 3 1 / 2 Tubing
SG 4 T 4 Tubing
SG 4 1 / 2 T 4 1 / 2 Tubing
SG 4 1 / 2 C 4 1 / 2 Casing
SG 5 C 5 Casing
SG 5 1 / 2 C 5 1 / 2 Casing
SG 6C 6 Casing
SG 6 5 / 8 C 6 5 / 8 Casing
SG 7C 7 Casing
SG 7 5 / 8 C 7 5 / 8 Casing
SG 8 5 / 8 C 8 5 / 8 Casing
SG 9 5 / 8 C 9 5 / 8 Casing
SG 10 3 / 4 C 10 3 / 4 Casing
SG 11 3 / 4 C 11 3 / 4 Casing
SG 13 3 / 8 C 13 3 / 8 Casing
SG 13 5 / 8 C 13 5 / 8 Casing
SG 14C 14 Casing
SG 16C 16 Casing
SG 18 5 / 8 C 18 5 / 8 Casing
SG 20C 20 Casing



Main Specialities of Our Casing Stabbing Guide



  1. Nitrile rubber material or Nylon material is better material for long-life operation.
  2. Screw thread and coupling are not damaged with composite material used.
  3. It has a relatively large guiding conical surface.
  4. The operation of latch lock is flexible and convenient.
  5. Stabbing guide is adaptable to the outside diameter of the new or worn coupling, through adjusting the length of latch screw.



Casing API 5CT 2 3/8" Well Drilling Stabbing Guide 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of cementing tools and other petroleum equipment in China. We are the first-class supplier of resources market of SINOPEC and CNPC. Our products include solid control equipment, cement tools, PDC drilling bits, Wellheading tools, Mud pumps and their acceossries.



Company Service



1. We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.
2. Our promise: Any equipment sold by Sino at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, Sino will bear the direct cost of the damaged parts.
3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one which comes to an end as the calculation standard).



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
