Product Details:
Payment & Shipping Terms:
|
| Usage: | Energy & Mining | Size: | 2 3/8"-20" |
|---|---|---|---|
| Market: | USA Middle Esat Asia Australia | Advantage: | High Performance |
| High Light: | Oilfield Drill Pipe Stabbing Guide,13 3/8" Drill Pipe Stabbing Guide,Chucking Drill Pipe Stabbing Guide |
||

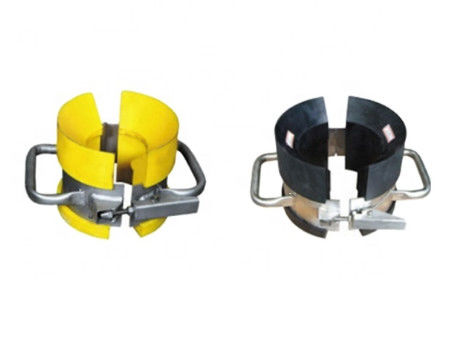

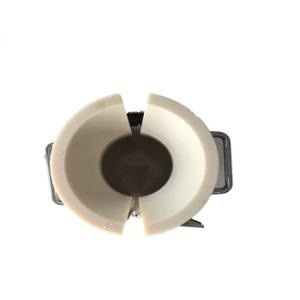

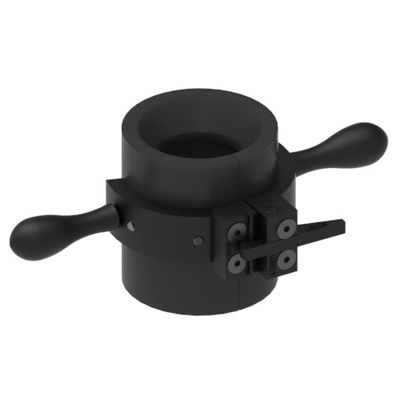

13 3/8" Oilfield Stabbing Guides Chucking Tool for Drill Pipe
Product Overview
Stabbing guides model SG is mainly used for protecting pipe connections when the male and female connectors for tubing and casing are stabbed during oil or nature gas well drilling and well repairing operations. This stabbing guide is simple in structure safe and reliable, and easy to operation.
Stabbing guides allow for quicker, easier stabbing and adds protection from stabbing damage to threaded connections.
The self-adjusting latch holds the stabbing guide in place on both new and worn box ODs, and the spring loaded-lever, when triggered, releases the guide for quick removal after stabbing.
Key benefits of Our Oilfield Stabbing Guide
Technical Parameters of Our Casing Stabbing Guide
| Model | Applicable diameter of tubulars ( in ) |
| SG 2 3 / 8 T | 2 3 / 8 Tubing |
| SG 2 7 / 8 T | 2 7 / 8 Tubing |
| SG 3 1 / 2 T | 3 1 / 2 Tubing |
| SG 4 T | 4 Tubing |
| SG 4 1 / 2 T | 4 1 / 2 Tubing |
| SG 4 1 / 2 C | 4 1 / 2 Casing |
| SG 5 C | 5 Casing |
| SG 5 1 / 2 C | 5 1 / 2 Casing |
| SG 6C | 6 Casing |
| SG 6 5 / 8 C | 6 5 / 8 Casing |
| SG 7C | 7 Casing |
| SG 7 5 / 8 C | 7 5 / 8 Casing |
| SG 8 5 / 8 C | 8 5 / 8 Casing |
| SG 9 5 / 8 C | 9 5 / 8 Casing |
| SG 10 3 / 4 C | 10 3 / 4 Casing |
| SG 11 3 / 4 C | 11 3 / 4 Casing |
| SG 13 3 / 8 C | 13 3 / 8 Casing |
| SG 13 5 / 8 C | 13 5 / 8 Casing |
| SG 14C | 14 Casing |
| SG 16C | 16 Casing |
| SG 18 5 / 8 C | 18 5 / 8 Casing |
| SG 20C | 20 Casing |
Our Service
1.We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. And the products have a long warranty period.
2.Our sales team will response for your question within 24 hours (Holidays Excluded)
3.Free replacement will provide once the failure confirmed caused by our product quality.
Packing & Shipping
Packaging Details: International Sea Transportation Packing ,Standard export packaging.
Delivery Time: Based on order quantity, normally it takes 25 days for production, Only 3 or 10 days if we have stock on your request size.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
