SG Series Casting Oilfield Drill Pipe Stabbing Guide

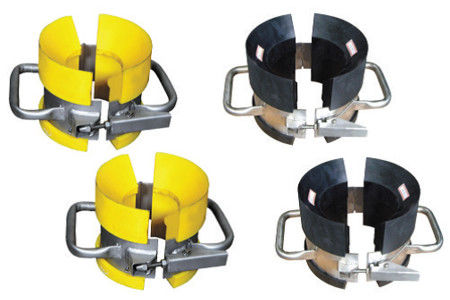

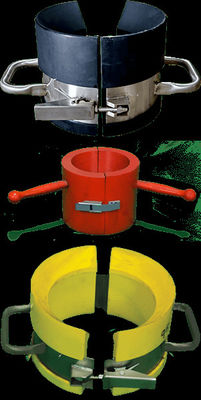

SG Series Stabbing Guide for Drilling Pipe / Tubing / Casing

Product Overview

Stabbing guides are designed to prevent damage during make up and are manufactured from high-grade steel and durable urethane material, then molded to a profile designed to act as a funnel guide. Models are available for tubing, casing and drill pipe, and in your choice of heavy-duty, standard-duty, or mag-latch configurations.

There are always two main features when referring to stabbing guide geometry: the thru-bore (top) and the counterbore (bottom). The counterbore slides over and rests on the box end of the pipe (female), while the thru-bore guides the pin threads (male) to align with the box threads. It is common practice to make the thru-bore and counterbore out of a strong, durable material that is somewhat elastic. These types of materials vary widely; care should be taken to select one that will stand up to all working conditions it may encounter including extreme temperatures, drilling fluids, corrosive chemicals, water, impact, fatigue, etc.

Design Features of Our Oilfield Stabbing Guide

1. Stabbing guide is adaptable to the outside diameter of the new or worn coupling, through adjusting the length of latch screw.
2. It has a relatively large guiding conical surface.
3. Screw thread and coupling are not damaged with composite material used.
4. The operation of latch lock is flexible and convenient.
5. Nitrile rubber material or Nylon material is better material for long-life operation.

Technical Specifications of Our Stabbing Guide

Xi'An TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city. We have specialized technicians, senior engineers and professional marketing team. Our company is committed to develop, manufacture and supply a variety of oilfield equipments. Main products include : Petroleum equipments & tools such as drilling equipments, oil production equipments, oil pipes, wellhead equipments, downhole tools, well control equipments, cementing tools ,and petrochemicals etc.

We devoted itself to be a total solution provider on drilling equipment manufacturing and engineering services. We are providing the high quality drilling rigs, work-over rigs, production equipment and offshore equipments with state-of-the –art technology for customers. "Higher quality and better service”is our eternal pursuit.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
