Oilfield Equipment API 9A Drilling Line Steel Wire Rope
Product Overview
Galvanized steel wire rope is divided into two types: cold galvanized steel wire rope and hot galvanized steel wire rope. The essential difference of the two types is that hot galvanized steel wire rope has zinc-iron alloy layer, so it is more corrosion-resistant. The galvanized steel wire rope can be used in the fields of shipping, offshore oil exploration, aircraft control, marine fishing, trawling, etc

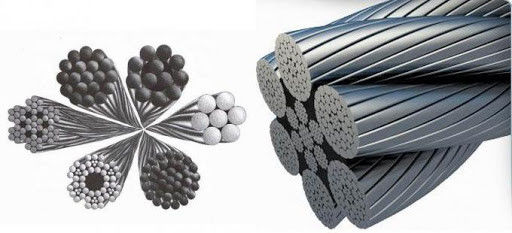

The rope can be laid up in different ways, usually left or right hand lay. This has some implications for how the wire line should be handled and possibly some other considerations. In Figure 3, you can see several different styles of laid up wire rope. Right hand lay is much more common.
A wide range of gas & oilfield wire ropes can be supplied for different applications as shown below:
Common Steel Wire Rope Construction
1×7,1×19, 6×7+FC, 7×7, 6×12+7FC, 6×15+7FC, 6×24+7FC
6×19+FC,6×19+IWRC, 6×19+IWS(7×19), 6×37+FC, 6×37+IWRC
6×19S+FC, 6×19S+IWRC, 6×19W+FC 6×19W+IWRC,
6×25Fi+FC, 6×25Fi+IWRC, 6×26SW+FC, 6×26SW+IWRC
6×29Fi+FC, 6×29Fi+IWRC, 6×31SW+FC, 6×31SW+IWRC,
6×36SW+FC 6×36SW+IWRC, 6×61+FC
18×7+FC, 19×7, 18×19+FC, 34×7+FC, 35W×7
8×19+FC, 8×19S+FC,8×19S+IWR and so on.
Our in stock, ready-to-ship products are available for fabricators and distributors serving the energy sector in Middle East, Europe, North America, South America, Asia, Australia and Africa. Our product offering include solutions for lifting and drilling operations, E&P activities, offshore and onshore, such as Mast Raising Lines, Drill Lines and Sandlines. Contact us today for a quote.
Key Technical Data of Our Oilfield Wire Rope
| 1.Steel Grade: | Bao steel , Sha steel , 45#,55#, 60# ,65# ,70# ,75# |
| 2.Construction: | 6x19W+FC |
| 3.Diameter Range: | 5.0mm-50.0mm |
| 4.Lay: | Right regular lay, Left regular lay, right lang lay, left lang lay |
| 5.Coating | Bright(ungalvanized), Galvanized, stainless, PVC or Grease |
| 6.Tensile of strength: | 1470MPa/ 1570MPa/ 1670MPa/1770MPa/1870MPa |
| 7.Main Application: | Various equipment for hoisting,ing,lifting,towing,portload and unload,blast furnace hoisting and oil well drilling.The rope with wire core can be used under the shock load,heated and squeezed conditions. |
| 8.Packaging Details: | In plywood reel/plastic reel/wooden reel/coil packing , and then can be palletized or put into a crate. |
| 9. Standard: | GB/T, DIN, BS, ASTM, JIS,ISO |
| 10.Certification: | BV,ISO9001:2008, ISO14001 |
| 11. MOQ: | 5 tons/ style or 5000m/ style |
Can you give warranty of your products?
Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. For the overseas orders, we guarantee most accessories. Provided emails with details including pictures or short video, we will send guide manual or replacements at our cost to repair.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level manufacturer and supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
