| Model Number: | 6X12 | Wire Gauge: | 0.05-20mm |
|---|---|---|---|
| Tensile Strength: | 1770mpa, 1960mpa, Etc | Shape: | Round |
| High Light: | 6X12 Galvanized Steel Wire Rope,40mm Steel Wire Rope,1770mpa Steel Wire Rope |
||

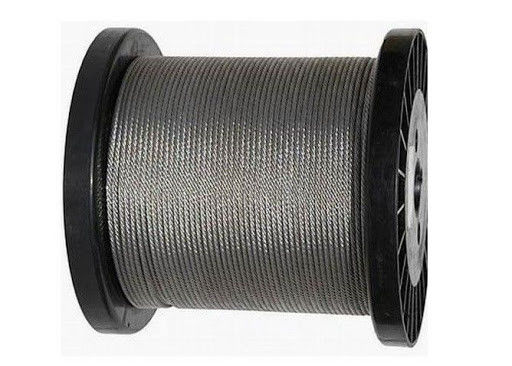

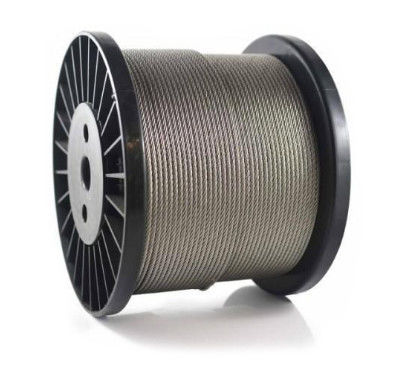

Wear Resistant 6X12 Oilfield Galvanized Steel Wire Rope 2~40mm
Product Overview
6x12 construction is a wire rope construction with superb breaking load characteristics and is used in a wide range of applications, available with both FC (fibre core) and IWRC (independent wire rope core). The construction has proved particularly popular for applications where the additional resistance to wear and abrasion provided by the larger outer wires is superior to the other 6x12 constructions.
Galvanized steel wire rope is divided into two types: cold galvanized steel wire rope and hot galvanized steel wire rope. The essential difference of the two types is that hot galvanized steel wire rope has zinc-iron alloy layer, so it is more corrosion-resistant. The galvanized steel wire rope can be used in the fields of shipping, offshore oil exploration, aircraft control, marine fishing, trawling, etc
It’s important to measure rope using the correct method, so that you can identify the correct tool and equipment size to use with that wire. Always measure the rope across it’s widest dimension, as it’s the total diameter of the rope that’s important.
Common Steel Wire Rope Construction
1×7,1×19, 6×7+FC, 7×7, 6×12+7FC, 6×15+7FC, 6×24+7FC
6×19+FC,6×19+IWRC, 6×19+IWS(7×19), 6×37+FC, 6×37+IWRC
6×19S+FC, 6×19S+IWRC, 6×19W+FC 6×19W+IWRC,
6×25Fi+FC, 6×25Fi+IWRC, 6×26SW+FC, 6×26SW+IWRC
6×29Fi+FC, 6×29Fi+IWRC, 6×31SW+FC, 6×31SW+IWRC,
6×36SW+FC 6×36SW+IWRC, 6×61+FC

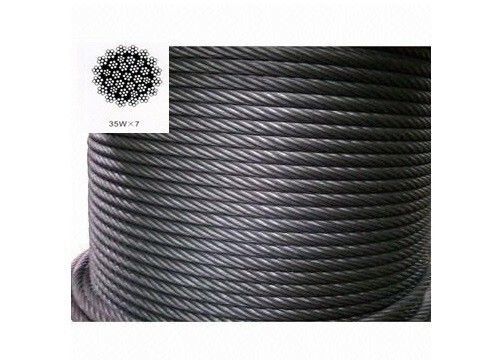

18×7+FC, 19×7, 18×19+FC, 34×7+FC, 35W×7
8×19+FC, 8×19S+FC,8×19S+IWR and so on.
Product Details of Our Steel Wire Rope:
Technical Specifications of Our Oilfield Wire Rope
| 1.Steel Grade: | Bao steel , Sha steel , 45#,55#, 60# ,65# ,70# ,75# |
| 2.Construction: | 6x19W+FC |
| 3.Diameter Range: | 5.0mm-50.0mm |
| 4.Lay: | Right regular lay, Left regular lay, right lang lay, left lang lay |
| 5.Coating | Bright(ungalvanized), Galvanized, stainless, PVC or Grease |
| 6.Tensile of strength: | 1470MPa/ 1570MPa/ 1670MPa/1770MPa/1870MPa |
| 7.Main Application: | Various equipment for hoisting,ing,lifting,towing,portload and unload,blast furnace hoisting and oil well drilling.The rope with wire core can be used under the shock load,heated and squeezed conditions. |
| 8.Packaging Details: | In plywood reel/plastic reel/wooden reel/coil packing , and then can be palletized or put into a crate. |
| 9. Standard: | GB/T, DIN, BS, ASTM, JIS,ISO |
| 10.Certification: | BV,ISO9001:2008, ISO14001 |
| 11. MOQ: | 5 tons/ style or 5000m/ style |
Can you give warranty of your products?
Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. For the overseas orders, we guarantee most accessories. Provided emails with details including pictures or short video, we will send guide manual or replacements at our cost to repair.
Xi'An TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city. We have specialized technicians, senior engineers and professional marketing team. Our company is committed to develop, manufacture and supply a variety of oilfield equipments. Main products include : Petroleum equipments & tools such as drilling equipments, oil production equipments, oil pipes, wellhead equipments, downhole tools, well control equipments, cementing tools ,and petrochemicals etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
