Product Details:
Payment & Shipping Terms:
|
| Wire Gauge: | 0.05-20mm | Content (%): | 1.0% |
|---|---|---|---|
| Usage: | Oilfield Hoisting, Lifting, Etc. | Tensile Strength: | 1770mpa, 1960mpa, Etc |
| High Light: | API 9A Steel Wire Rope,Galvanized Oilfield Steel Wire Rope,1770mpa Steel Wire Rope |
||

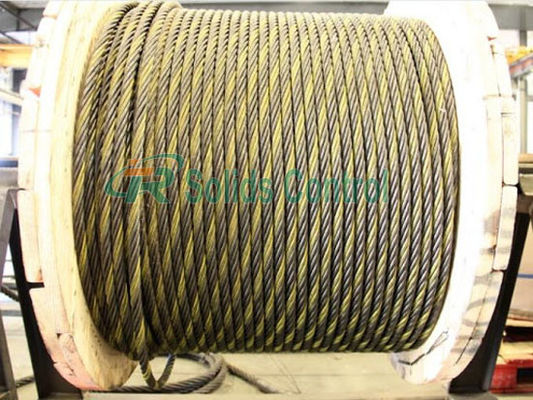

API 9A Galvanized Oilfield Drilling Line Steel Wire Rope
Product Overview
Gas & oilfield wire ropes with higher breaking strength, excellent flexibility, better rotation resistance and extended lifespan are urgently needed with the development of gas and oil industry. These steel wire ropes are designed to increase the productivity on rigs and minimize downtime.
Stainless steel wire rope, listed in order of frequency of use, are mode of AISI types 302/304, 316, and 305. Contrary to general belief, hard-drawn stainless type 302/304 is magnetic. Type 316 is less magnetic, and type 305 has a permeability low enough to qualify as non-magnetic.
Common Steel Wire Rope Construction
1×7,1×19, 6×7+FC, 7×7, 6×12+7FC, 6×15+7FC, 6×24+7FC
6×19+FC,6×19+IWRC, 6×19+IWS(7×19), 6×37+FC, 6×37+IWRC
6×19S+FC, 6×19S+IWRC, 6×19W+FC 6×19W+IWRC,
6×25Fi+FC, 6×25Fi+IWRC, 6×26SW+FC, 6×26SW+IWRC
6×29Fi+FC, 6×29Fi+IWRC, 6×31SW+FC, 6×31SW+IWRC,
6×36SW+FC 6×36SW+IWRC, 6×61+FC
18×7+FC, 19×7, 18×19+FC, 34×7+FC, 35W×7
8×19+FC, 8×19S+FC,8×19S+IWR and so on.
Common Tensile Strength
1570Mpa, 1670Mpa, 1770Mpa, 1870Mpa, 1960Mpa, 2160Mpa
Quality Assurance
1. We are equiped with world advanced computer driving production lines.
2. Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices.
3. Manufactured in Class 100,000 Cleanroom.
Technical Specifications of Our Oilfield Wire Rope
| 1.Steel Grade: | Bao steel , Sha steel , 45#,55#, 60# ,65# ,70# ,75# |
| 2.Construction: | 6x19W+FC |
| 3.Diameter Range: | 5.0mm-50.0mm |
| 4.Lay: | Right regular lay, Left regular lay, right lang lay, left lang lay |
| 5.Coating | Bright(ungalvanized), Galvanized, stainless, PVC or Grease |
| 6.Tensile of strength: | 1470MPa/ 1570MPa/ 1670MPa/1770MPa/1870MPa |
| 7.Main Application: | Various equipment for hoisting,ing,lifting,towing,portload and unload,blast furnace hoisting and oil well drilling.The rope with wire core can be used under the shock load,heated and squeezed conditions. |
| 8.Packaging Details: | In plywood reel/plastic reel/wooden reel/coil packing , and then can be palletized or put into a crate. |
| 9. Standard: | GB/T, DIN, BS, ASTM, JIS,ISO |
| 10.Certification: | BV,ISO9001:2008, ISO14001 |
| 11. MOQ: | 5 tons/ style or 5000m/ style |
Xi'an TianRui Petroleum Machinery Equipment Company Limited had explored the international market and enlarged international cooperation 10 years .Due to the competitive price ,good quality and excellent service ,our products are sold to America,Canada, Brazil, Columbia, Venezuela,India,Iran,UAE,Russia ,Kazakhastan,Italy,Hungary ,Australia,Syria,Egypt ,etc. We have get good reputation from our oversea clients.
Service
1) Packed and labeled according to the regulations and customer's requests.
2) 15days in common, time can be less if common grade 201, 304/L, 316/L, 409L, 410, 420, 439.
3) Our factory is in Shaanxi province, and cargo are always loaded in Tianjin or Shanghai port, so EXW, FOB Tianjin or Shanghai or CIF can be as your request.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
