Product Details:
Payment & Shipping Terms:
|
| Wire Gauge: | 0.16mm-6.0mm | Tensile Strength: | 290-1200mpa |
|---|---|---|---|
| Special Use: | Cold Heading Steel | Processing Service: | Bending |
| Applicatio: | Oilfield | Alloy Or Not: | Non-alloy |
| Highlight: | Oilfield Galvanized Wire Rope,6X37 Galvanized Wire Rope,Anti Corrosion Oilfield Wire Rope |
||

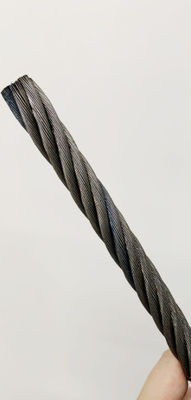

6X37 Galvanized Steel Wire Rope Used for Oilfield
Product Introduction

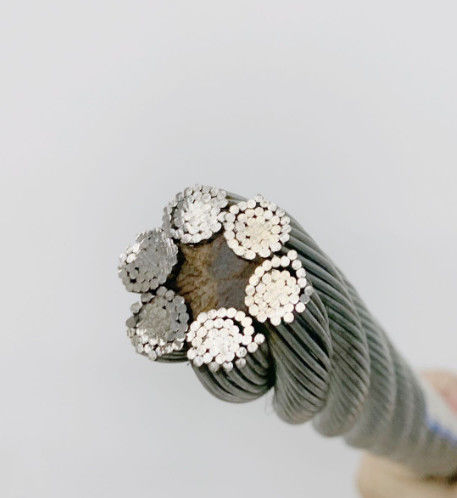

Wire rope consists of three basic components; while few in number, these vary in both complexity and configuration to produce ropes for specific purposes or characteristics. The three basic components of a standard wire rope design are: 1) wires that form the strand, 2) multi-wire strands laid helically around a core, and 3) the core.
Stainless steel wire rope, listed in order of frequency of use, are mode of AISI types 302/304, 316, and 305. Contrary to general belief, hard-drawn stainless type 302/304 is magnetic. Type 316 is less magnetic, and type 305 has a permeability low enough to qualify as non-magnetic.

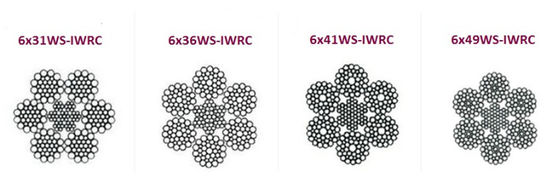

Strands consists of two or more wires, laid in any one of many specific geometric arrangements, or in a combination of steel wires with some other materials such as natural or synthetic fibers. It is conceivable that a strand can be made up of any number of wires, or that a rope can have ay number of strands.
Product Details of Our Oilfield Wire Rope:
Parameters of Our Oilfield Wire Rope
| 1.Steel Grade: | Bao steel , Sha steel , 45#,55#, 60# ,65# ,70# ,75# |
| 2.Construction: | 6x19W+FC |
| 3.Diameter Range: | 5.0mm-50.0mm |
| 4.Lay: | Right regular lay, Left regular lay, right lang lay, left lang lay |
| 5.Coating | Bright(ungalvanized), Galvanized, stainless, PVC or Grease |
| 6.Tensile of strength: | 1470MPa/ 1570MPa/ 1670MPa/1770MPa/1870MPa |
| 7.Main Application: | Various equipment for hoisting,ing,lifting,towing,portload and unload,blast furnace hoisting and oil well drilling.The rope with wire core can be used under the shock load,heated and squeezed conditions. |
| 8.Packaging Details: | In plywood reel/plastic reel/wooden reel/coil packing , and then can be palletized or put into a crate. |
| 9. Standard: | GB/T, DIN, BS, ASTM, JIS,ISO |
| 10.Certification: | BV,ISO9001:2008, ISO14001 |
| 11. MOQ: | 5 tons/ style or 5000m/ style |
Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
Our in stock, ready-to-ship products are available for fabricators and distributors serving the energy sector in Middle East, Europe, North America, South America, Asia, Australia and Africa. Our product offering include solutions for lifting and drilling operations, E&P activities, offshore and onshore, such as Mast Raising Lines, Drill Lines and Sandlines. Contact us today for a quote.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
