Rotary Drilling 1570Mpa 60mm 6x19S Steel Wire Rope

Rotary Drilling 1570Mpa 60mm 6x19S Steel Wire Rope
Rotary Drilling 1570Mpa 60mm 6x19S Steel Wire Rope Rotary Drilling 1570Mpa 60mm 6x19S Steel Wire Rope Rotary Drilling 1570Mpa 60mm 6x19S Steel Wire Rope

Large Image :  Rotary Drilling 1570Mpa 60mm 6x19S Steel Wire Rope

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 9A, ISO 9001
Model Number: TRYGT

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 mts Per Month
Detailed Product Description
Wire Gauge: 0.16mm-6.0mm Tensile Strength: 290-1200mpa
Rope Construction: 6*19s+ FC; 6*19s+ IWR; 6*19W+ FC; 6*19W+ IWR Steel Grade: Steel Or Stainless Steel
Surface: Galvanised Zinc Standard: AISI, ASTM, BS, DIN, GB, JIS
High Light:

6x19S Steel Wire Rope


60mm Steel Wire Rope


1570Mpa Oilfield Steel Wire Rope

Steel Wire Rope for Rotary Drilling Line 6x19s Gas & Oilfield Wire Ropes


Product Introduction

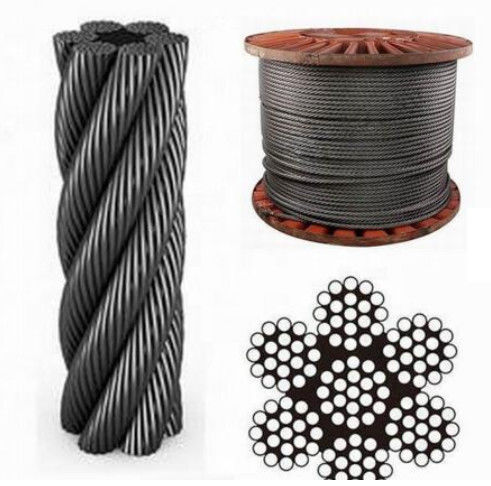

6x19S construction is a wire rope construction with superb breaking load characteristics and is used in a wide range of applications, available with both FC (fibre core) and IWRC (independent wire rope core). The construction has proved particularly popular for applications where the additional resistance to wear and abrasion provided by the larger outer wires is superior to the other 6x19 constructions.


It’s important to measure rope using the correct method, so that you can identify the correct tool and equipment size to use with that wire. Always measure the rope across it’s widest dimension, as it’s the total diameter of the rope that’s important.


Drilling line for oilfield usage is manufactured according to API 9A specification. Xi'an TianRui Petroleum Machinery Equipment Company Limited can providfe you steel wire rope drilling line with high strength, long time service life, galvanized or non-galvanized, etc.


Product Details of Oilfield Wire Rope:


  1. Diameter: 1.5mm to 60mm
  2. HS Code, 7312100000
  3. Both GB/T 20116-2008 , DIN are available.
  4. Available Construction: 6x7, 6x19, 6x37, 6x12+7FC, 6x24+7FC, 6x36WS, 19x7, 8x19S, 35Wx7
  5. Core: fiber core and steel core (FC, IWS & IWRC)
  6. Main applications: for various kinds of lifting, hoisting and pulling etc.
  7. In-time shipment, high quality and good after-sale service will be guaranteed.
  8. Nominal l tensile strength: 1570 Mpa, 1770 Mpa, 1960 Mpa etc.


Technical Parameters of Our Oilfield Wire Rope


Product name galvanized steel wire
specifications As customer's requirements
Wire diameter 0.5-5mm
tensile strength 350 - 550 n / square meter
Material low carbon steel
Surface treatment hot dipped galvanized, Electro galvanized
Zinc coating 60-270G
color customized
weight 0.5-100kg/roll
feature anti-corrosion,high strength ,bright color
application fence, Wire crafts

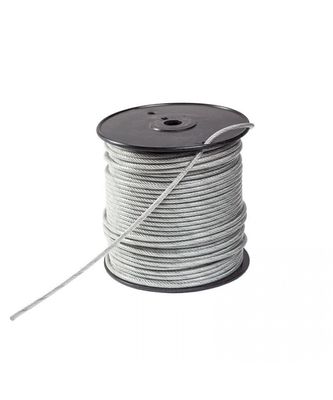

Rotary Drilling 1570Mpa 60mm 6x19S Steel Wire Rope 0

We are a professional manufacturer of wire ropes. We can supply many types of wire ropes. If you need any standard of wire rope or special wire rope in colour and thickness. Please contact us.
~~ We can offer all types steel wire rope and accessories for you.
~~ We have best quality and competitive price!


The target of TR Solids Control: To establish an international first-class enterprise, and become a professional petroleum equipment supplier,supply chain company and oilfield engineering services company.; "providing the most qualified products, most competitive prices and most professional service for every customer " as its mission and Provide consistent after-sales service.


Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
