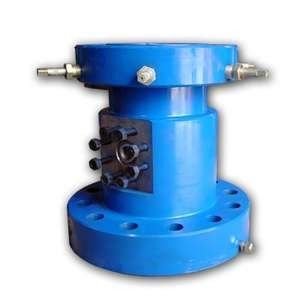

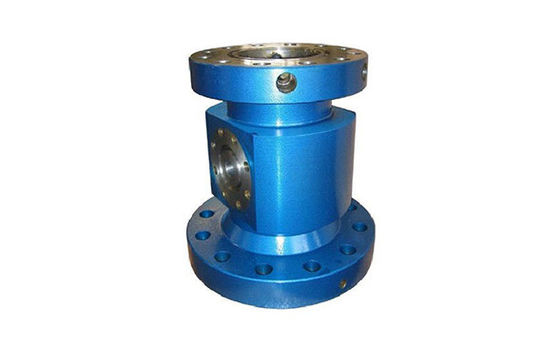

26" Plug In API 6A Wellhead Oilfield Tubing Adapter

API 6A Tubing Head Tubing Adapter for Oilfield Wellhead

Product Introduction

Our tubing heads operate in working pressures of 2,000, 3,000 and 5,000 psi and test pressures of 4,000, 6,000 and 7,500 psi. Maximum slip flange load is rated to 85,000 pounds.

The top spool on a wellhead assembly contains the highest pressure in the wellhead, and contains a load shoulder to hang the tubing hanger and tubing string. When the well is completed, the tree is installed on top of the head with a tubing head adapter. Providing a means to support and test the BOPs while completing the well, the tubing head is a necessary component when drilling and completing a well.

TUBING HEAD FUNCTIONS

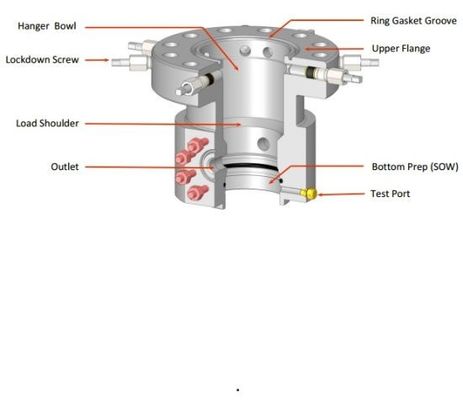

Attaches above the Casing Head or Spool and seals off the production casing. Supports the blowout preventer while the well is being completed. Allows for testing of the blowout preventer while drilling. Housing for tubing hanger and seal assembly and suspends the production tubing stringIntegral lock screws hold down tubing hanger.Side outlets for annular access.

MODELS AVAILABLE:
TC (single completions only)TC-60 (three alignment pins for either single or dual completions)

SIDE OUTLET OPTIONS AVAILABLE:
Line Pipe OutletsStudded Side Outlets

Design Features of TR Wellhead Tubing Head

• 2,000 psi, 3,000 psi and 5,000 psi working pressure ratings available.
• 4,000 psi, 6,000 psi and 7,500 psi test pressure ratings.
• Slip flange available with 85,000 lb. maximum slip load.
• High temperature elastomers available on request.
• Unique V-Style rubber packing ring which energizes under pressure to provide superior seal in slip flange style.

Technical Parameters of TR Wellhead Tubing Head

Xi'an TianRui Petroleum Machinery Equipment Company Limited designs, manufactures and supplies conventional wellheads and X-mas trees of all sizes, working pressures and temperatures. The sealing performance is reliable and the service life span is long.

We design and manufacture products and services that meet and exceed the challenges faced by the global energy industry. As a trusted partner, we support customers through the total life of their assets and aim to extend the life of equipment through our comprehensive engineered aftermarket services.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
