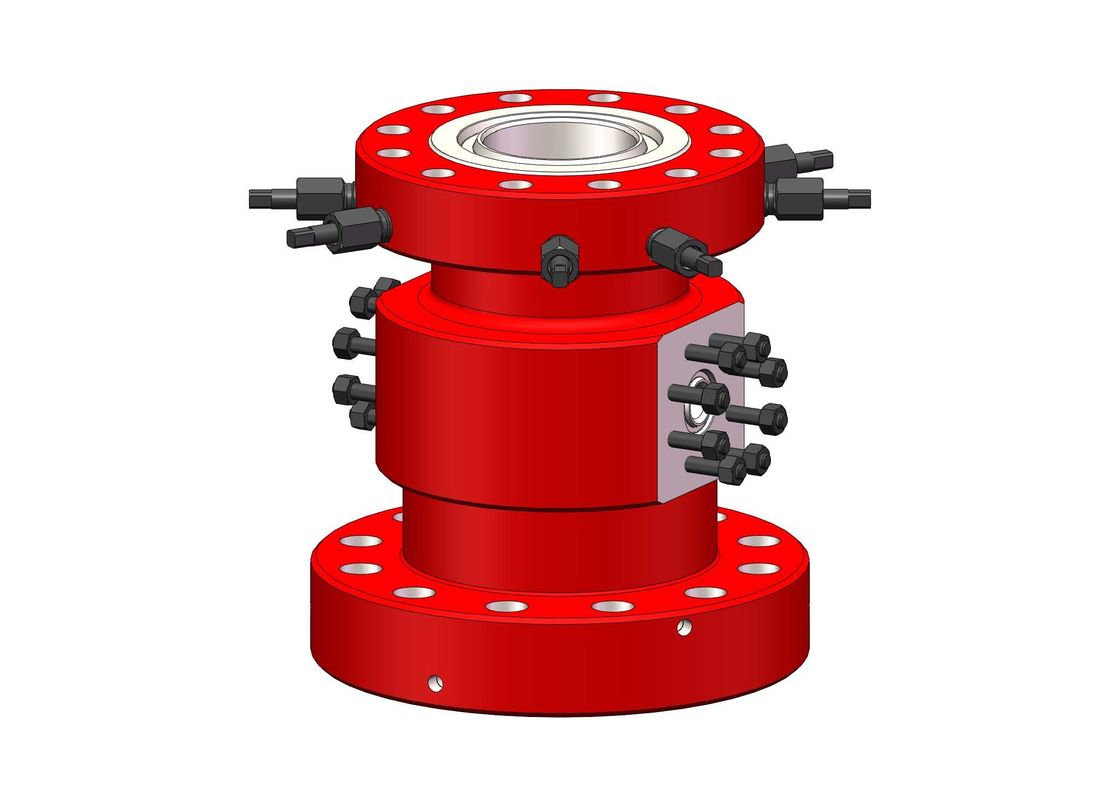

PR1 PR2 13 5/8" 5000PSI API 6A Wellhead Tubing Head

13 5/8" 5000 PSI API 6A Wellhead Equipment Tubing Head​

Product Introduction

The top spool on a wellhead assembly contains the highest pressure in the wellhead, and contains a load shoulder to hang the tubing hanger and tubing string. When the well is completed, the tree is installed on top of the head with a tubing head adapter. Providing a means to support and test the BOPs while completing the well, the tubing head is a necessary component when drilling and completing a well. The standard tubing head product line combines a straight-bore profile with a varied number of aligning pins, depending on the chosen model. FMC’s tubing heads eliminate the “wedge-locking” of the bowl protector, BOP test plugs, and tubing hangers. As additional advantages, valve removal (VR) threads are standard on all flanged or studded tubing head outlets, and if a 9” or larger top flange is required, the C-29 casing hanger can be used for casing-type completions.

Structure of Tubing Head

Tubing head is usually a spool with both flanged ends, which is set on the top flange of casing head to hang tubing hanger and seal the annular space between the tubing string and oil-layer casing and which consists of tubing head spool and tubing hanger.

Characterstics of TR Oilfield Wellhead Tubing Head

• Made from high-strengh alloy and processed specially with heating treatment.
• All stell tanks are welded with staintess stell for long-term anti-corrosion.
• Designed and manufactured with reference to API 6A technical specifications.
• Fit for Hydrogen sulfide H2S resistant service, manufactured with reference to NACEMR 0175 technical specifications.
• Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.
• Used for high-pressure drilling, in conjunction with flat valve for preventing blowout and connecting BOP.

Main Parameters of TR Wellhead Tubing Head

Xi'an TianRui Petroleum Machinery Equipment Company Limited designs, manufactures and supplies conventional wellheads and X-mas trees of all sizes, working pressures and temperatures. The sealing performance is reliable and the service life span is long.

We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
