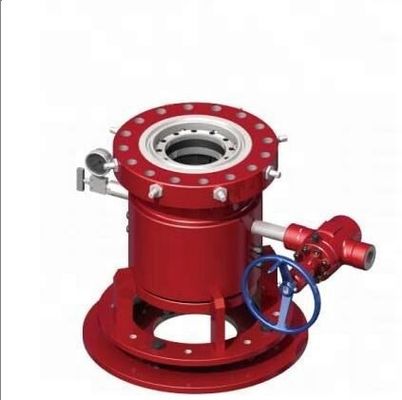

Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger

Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger
Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger

Large Image :  Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 6A
Model Number: TR-YGQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80000 Pcs Per Month
Detailed Product Description
Size: 3 3/4 "(95.3mm)~26"(660.4mm) Pressure: 2000-20000 Psi
Application: Well Drilling Color: Red, White
Medium: Water/Oil/Gas Package: Wooden Case
High Light:

Wellhead Mandrel Type Casing Hanger

,

3000psi Mandrel Type Casing Hanger

,

Well Drilling Mandrel Casing Hanger

Wellhead Equipment API 6A Mandrel Type Casing Hanger



Product Descrption



The lowest part of the wellhead that is almost always connected to the surface casing string, and provides a means of suspending and packing off the next casing string. Providing attachment to the surface casing string through the type of bottom connection (Slip-on-weld, threaded, Sliploc), the casing head is typically qualified to withstand up to 10,000 psi working pressure. It suspends the casing and packs off the next casing string while providing annular outlets, as well as supporting the BOP while drilling the remaining stages.



Our products could match the following brand:
FMC, CAMERON, CONTROL FLOW, DKG, DRILLQUIP, CE, VECTOGREY, WEATHERFORD, WEIRSEABOARD,WOOD GROUP, WOM, STREAM FLO. EXPRO, MI SWACO, T3.



Basic Parameters



  • Applicable place: applicable to various casing procedures
  • Test pressure: take 80% of the casing resistance to external extrusion or working pressure, and take the low value for the two
  • Working medium: oil, natural gas, mud, gas containing H2S and CO2
  • Operating temperature: - 46 & ordm; C ~ 121 & ordm; C (Lu level)
  • Specification level: PSL1 ~ 4
  • Energy level: PR1 ~ 2



Main Features of Our Wellhead Casing Hanger



  • Temperature range: -46°C ~121°C.
  • Method to set the seal: casing string weight.
  • Sustain 50% load of casing tensile strength.
  • Two slip components suitable for hanging casing strings in heavy-duty conditions.
  • Designed with lock-up screws to prevent accidental open.



Technical Parameters of TR Wellhead Casing Hanger



Rated operating pressure
psi(MPa)
Nominal bore diameter
in(mm)
Bypass bore diameter
in(mm)
Outer diameter of the casing for the hangerin(mm)
2000(13.8) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
3000(20.7) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
5000(34.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
10000(69.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
15000(103.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
20000(138.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)

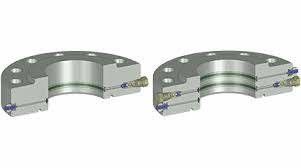

Well Drilling Wellhead 3000psi Mandrel Type Casing Hanger 0
