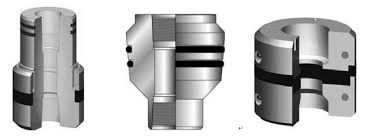

2000psi 1 13/16" Wellhead Slip Type Casing Hanger

2000psi 1 13/16" Wellhead Slip Type Casing Hanger
2000psi 1 13/16" Wellhead Slip Type Casing Hanger 2000psi 1 13/16" Wellhead Slip Type Casing Hanger 2000psi 1 13/16" Wellhead Slip Type Casing Hanger

Large Image :  2000psi 1 13/16" Wellhead Slip Type Casing Hanger

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 6A
Model Number: TR-YGQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80000 Pcs Per Month
Detailed Product Description
Size: 3 3/4 "(95.3mm)~26"(660.4mm) Well Type: Chassis Well
Pressure: 2000-20000 Psi Application: Well Drilling
Color: Red, White Warranty: 1 Year
High Light:

Wellhead Slip Type Casing Hanger

,

2000psi Slip Type Casing Hanger

,

1 13/16" Casing Slip Hanger

Surface Wellhead Slip Type 1 13/16" Casing Hanger for Oilfield



Product Descrption



The casing hanger is placed in the cone seat of the lowest part of casing head or intermediate casing head to hang the following smaller casing string and make a seal for the hanging casing and casing head cone seat. It should be able to withstand the weight of the casing hanging. Therefore, the tensile load, the weight load from the pressure in the well casing, and radial load of the conical shoulder are the main loads of the hanger.



Accepting the type casing hangers, the standard head is an API standard. It eliminates the need for lockdown screws to retain the bowl protectors, creating fewer leak paths. The bottom prep of the casing head can be machined to fit a variety of applications. The straight bowl design prevents the wedge locking of bowl protectors, casing hangers, and test plugs, simplifying the installation process.



Design Advantages of Our Wellhead Casing Hanger



  • Temperature range: -46°C ~121°C.
  • Sustain 50% load of casing tensile strength.
  • Two slip components suitable for hanging casing strings in heavy-duty conditions.
  • Method to set the seal: casing string weight.
  • Designed with lock-up screws to prevent accidental open.



Technical Parameters of TR Wellhead Casing Hanger



Rated operating pressure
psi(MPa)
Nominal bore diameter
in(mm)
Bypass bore diameter
in(mm)
Outer diameter of the casing for the hangerin(mm)
2000(13.8) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
3000(20.7) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
5000(34.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
10000(69.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
15000(103.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
20000(138.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)



2000psi 1 13/16" Wellhead Slip Type Casing Hanger 0



We Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city of China. We have specialized technicians, senior engineers and professional marketing team. We have been serving oilfield from past 10 years, and established a solid partnership and network with quality OEM factories.


Our Service


1.We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. And the products have a long warranty period.
2.Our sales team will response for your question within 24 hours (Holidays Excluded)
3.Free replacement will provide once the failure confirmed caused by our product quality.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
