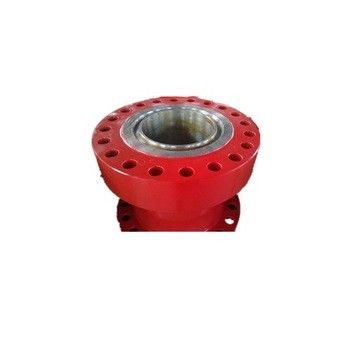

95.3mm API 6A Wellhead Mandrel Type Casing Hanger

95.3mm API 6A Wellhead Mandrel Type Casing Hanger
95.3mm API 6A Wellhead Mandrel Type Casing Hanger 95.3mm API 6A Wellhead Mandrel Type Casing Hanger 95.3mm API 6A Wellhead Mandrel Type Casing Hanger

Large Image :  95.3mm API 6A Wellhead Mandrel Type Casing Hanger

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 6A, ISO 9001
Model Number: TR-YGQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 Pcs Per Month
Detailed Product Description
Size: 3 3/4 "(95.3mm)~26"(660.4mm) Pressure: 2000-20000 Psi
Well Type: Chassis Well Warranty: 12 Months
Quality: High Level Usage: Oilfield Wellhead
High Light:

Wellhead Mandrel Type Casing Hanger

,

API 6A Mandrel Casing Hanger

,

95.3mm Mandrel Type Casing Hanger

API 6A Wellhead Slip Type and Mandrel Type Casing Hanger



Product Introduction

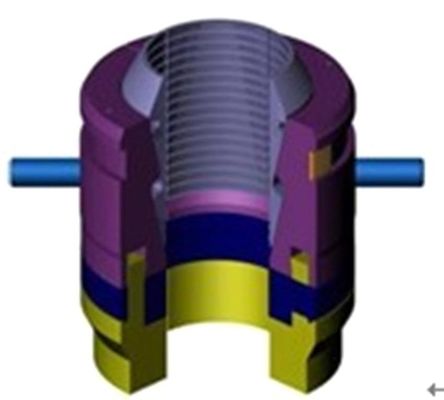

Casing hanger is an assembly to suspend casing string by means of a male or female thread and seal the annular space between tubing and casing, which is connected with casing and seated into tubing hanger spool by tubing gravity. It is convenient to operate and replace wellhead so that it is widely used for intermediate depth well and common well.



The WD type casing hangers are used to connect the casing head with the surface casing and the slip teeth of the casing hanger close tightly around the casing by the external force.


The W type casing hangers are structured to enable the dead-weight of the casing to energize the seal to function
Both the WE type and G type casing hangers operated by energizing the seal manually.



Characterstics of Our Wellhead Casing Hanger



  • Casing hanger points thread type (core shaft), slip type two kinds big.
  • W type hanger is casing self-respect strengthen sealed structure;
  • WE type and G type manual strengthen seal structure.
  • Slip type hanger type: G type, W type, WD type, WE type, etc.;
  • WD type suspension used for connecting casing head and surface casing, it through the external force that slip tooth hold casing;



Technical Parameters of TR Wellhead Casing Hanger



Rated operating pressure
psi(MPa)
Nominal bore diameter
in(mm)
Bypass bore diameter
in(mm)
Outer diameter of the casing for the hangerin(mm)
2000(13.8) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
3000(20.7) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
5000(34.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
10000(69.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
15000(103.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
20000(138.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)



95.3mm API 6A Wellhead Mandrel Type Casing Hanger 0



Xi'An TianRui Petroleum Machinery Equipment Company Limited will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.





Moreover, we have established a complete quality control system, all products & equipments are manufatured as per international standard and API standard. Besides other spares and consumables, we specialize in providing high-quality solid control equipment, drilling tools, top drive spares and TDS repair/maintenance service.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
