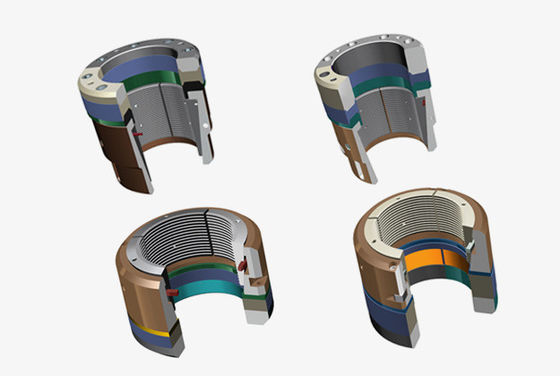

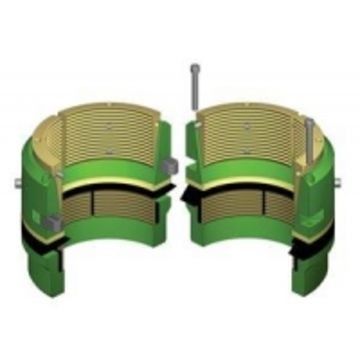

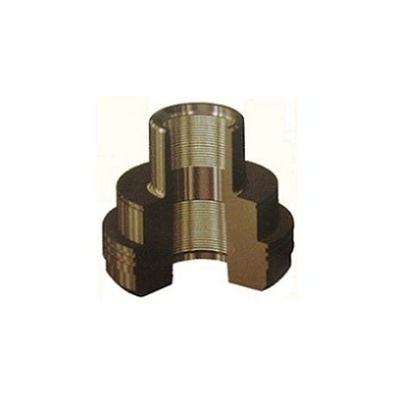

Drilling 13-3/8" 138MPa Oilfield Slip Type Casing Hanger

Drilling 13-3/8" 138MPa Oilfield Slip Type Casing Hanger
Drilling 13-3/8" 138MPa Oilfield Slip Type Casing Hanger Drilling 13-3/8" 138MPa Oilfield Slip Type Casing Hanger Drilling 13-3/8" 138MPa Oilfield Slip Type Casing Hanger

Large Image :  Drilling 13-3/8" 138MPa Oilfield Slip Type Casing Hanger

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 6A
Model Number: TR-YGQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 70000 Pcs Per Month
Detailed Product Description
Size: 3 3/4 "(95.3mm)~26"(660.4mm) Processing Type: Forging
Material: Carbon Steel Well Type: Chassis Well
Pressure: 2000-20000 Psi Application: Well Drilling
High Light:

Oilfield Slip Type Casing Hanger

,

138MPa Slip Type Casing Hanger

,

3/8" Wellhead Casing Hanger

Oilfield Equipment Slips Type Casing Hanger and Tubing Hanger



Product Descrption



The casing hanger is placed in the cone seat of the lowest part of casing head or intermediate casing head to hang the following smaller casing string and make a seal for the hanging casing and casing head cone seat. It should be able to withstand the weight of the casing hanging. Therefore, the tensile load, the weight load from the pressure in the well casing, and radial load of the conical shoulder are the main loads of the hanger.



The most common size of casing hanger is 13-3/8" with over 155,000 such units installed worldwide in 2014 alone.



The contraction of the oilfield industry throughout 2015 meant that this figure was reduced somewhat to just under 120,000 units, of which 36,822 were "Pos-Grip" casing hangers.



Main Benefits of Our Wellhead Casing Hanger



  • Sustain 50% load of casing tensile strength.
  • Two slip components suitable for hanging casing strings in heavy-duty conditions.
  • Method to set the seal: casing string weight.
  • Temperature range: -46°C ~121°C.
  • Designed with lock-up screws to prevent accidental open.



Technical Specifications of TR Wellhead Casing Hanger



Rated operating pressure
psi(MPa)
Nominal bore diameter
in(mm)
Bypass bore diameter
in(mm)
Outer diameter of the casing for the hangerin(mm)
2000(13.8) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
3000(20.7) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
5000(34.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
10000(69.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
15000(103.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
20000(138.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)



Drilling 13-3/8" 138MPa Oilfield Slip Type Casing Hanger 0
