5000KN PSL 1 API 6A 5000 Psi Wellhead Casing Hanger

5000KN PSL 1 API 6A 5000 Psi Wellhead Casing Hanger
5000KN PSL 1 API 6A 5000 Psi Wellhead Casing Hanger 5000KN PSL 1 API 6A 5000 Psi Wellhead Casing Hanger 5000KN PSL 1 API 6A 5000 Psi Wellhead Casing Hanger

Large Image :  5000KN PSL 1 API 6A 5000 Psi Wellhead Casing Hanger

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 6A, ISO 9001
Model Number: TRYGT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80000 Pcs Per Month
Detailed Product Description
Size: 9"-21 1/4" Pressure: 5000 Psi
Color: Red, White Packing: Wooden Box
Working Temperature: -60℃~390℃(-75℉-734℉) Medium: Oil, Water, Gas, Mud
High Light:

5000 Psi Wellhead Casing Hanger

,

API 6A Wellhead Casing Hanger

,

PSL 1 Wellhead Casing Spool

API-6A Wellhead Equipment Casing Ppool Casing Hanger Casing Head



Product Descrption

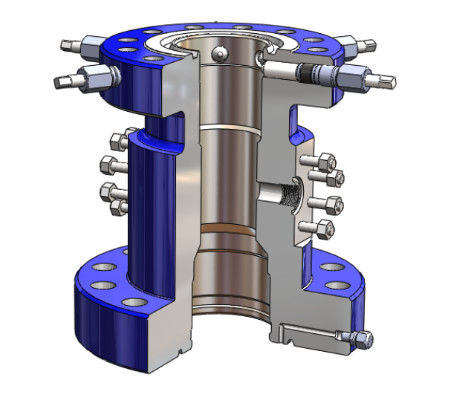

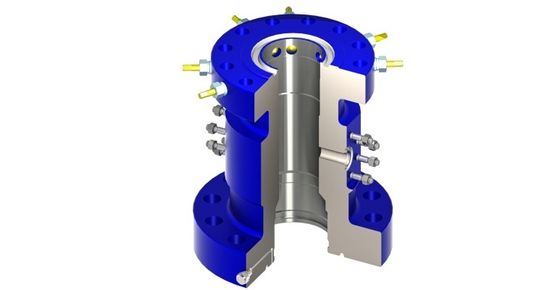

Casing head is a component connecting the casing and various wellhead devices. To support the gravity of the technical casing and reservoir casing, to seal the annular space between each casing, to provide a transition connection for the installation of upper wellhead devices such as bop, tubing head and tree, and through the two side openings in the casing head body, to perform the cementing, monitoring well sinking, and injection balancing operations.



We manufacture standard structural casing head with casing hanger installed in the body. Casing hanger can be chosen as per different casing program and well condictions.top flange of casing head can be API 6B or 6BX.



Bottom connection can be CSG,BTC,SOW or slip-lock. We can also provide landing plate as per request.side outlets can be threaded or studded.



Product Application



  • Our Casing Head can be used in onshore and offshore environments, for general and sour service and in conventional or specialty wellhead systems.
  • PSL 1 to 3G certified
  • PR-1 certified
  • Available in DD-NL, EE-NL, FF-NL and HH-NL trims
  • Available in nominal flange sizes 11″ to 13-5/8″
  • Available with or without lockscrews
  • Optional landing base plate assemble for 20″ to 30″ conductor pipe



Manufacturing Equipment



  • CNC lathe
  • Vertical CNC machining center
  • Frame type CNC machining center



Technical Specifications of TR Wellhead Casing Head



Casing Program 20"×133/8" ×95/8" ×7" or 51/2"
Flanged Outlet PFF35/80:R35
PFF70/65:BX153
Load Capacity Mixmum 5000KN
Hanger Specification 4",41/2",5",51/2",7"
Working Pressure 35MPa~70MPa
Performance Requirement Grade PR1
Product Specification Grade PSL1-3
Temperature P·U(-29~121)
Material Class AA~FF



5000KN PSL 1 API 6A 5000 Psi Wellhead Casing Hanger 0



Xi'An TianRui Petroleum Machinery Equipment Company was founded in 2010, Xi'an city of China. Oil machinery is our main products, the leading products include solid control equipment, pumping unit, subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels, drilling downhole products and cementing accessories.
