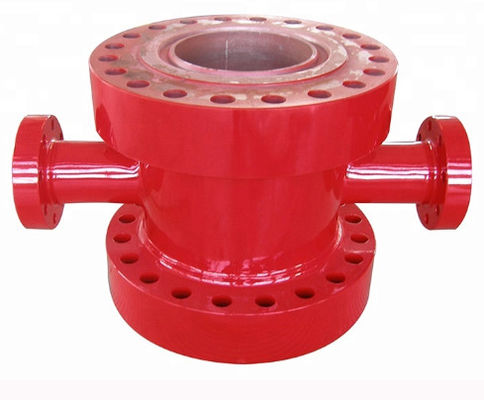

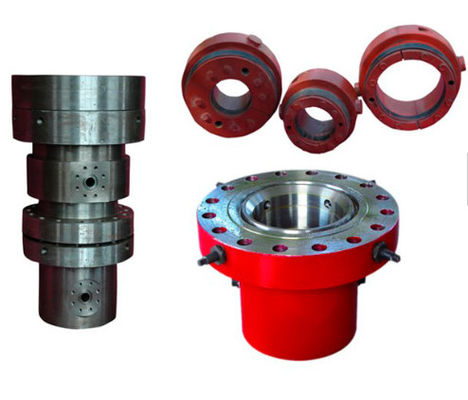

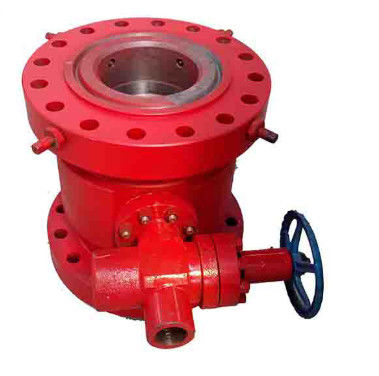

Energy 13 5/8" API 6A 5000 PSI Casing Head Assembly

Energy 13 5/8" API 6A 5000 PSI Casing Head Assembly
Energy 13 5/8" API 6A 5000 PSI Casing Head Assembly Energy 13 5/8" API 6A 5000 PSI Casing Head Assembly Energy 13 5/8" API 6A 5000 PSI Casing Head Assembly

Large Image :  Energy 13 5/8" API 6A 5000 PSI Casing Head Assembly

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 6A, ISO 9001
Model Number: TRYGT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80000 Pcs Per Month
Detailed Product Description
Size: 9"-21 1/4" Certificate: API 6A
Pressure: 5000 Psi Color: Red, White
Packing: Wooden Box Usage: Energy & Mining
High Light:

5000 PSI Casing Head Assembly

,

API 6A Casing Head Assembly

,

13 5/8" Oilfield Casing Heads

13 5/8" API 6A 5000 PSI Wellhead Equipment Casing Head Assembly



Product Descrption



Casing heads are indispensable components used for connecting casing to wellhead assembly, which can support intermediate string and production string, seal the annular space between the casings. Casing head also can be used as a crossover connection for installation of BOP, tubing head, christmas tree and other wellhead components. Two side outlets on the casing head can be used for cement feeding, well sink monitoring, balance fluid injection and other operations.



Casing Head provided by our company are normally furnished with threaded outlets and studded outlets and also can be manufactured by request. Bottom connections can be furnished threaded or slip-on for welding.



Structural Benefits of Our Wellhead Casing Head



  • Outlet connection can be thread, bolted flange.
  • Top connection are API 6A flanged, and the flanges are provided with locking bolts.
  • Structural type of the matched casing hanger: slip and mandrel.
  • Bottom connection can be threaded, welded or slip.
  • Optional integral double FS-seal, P-seal and Metal-to-Metal seal bottom preparation for HTHP applications.
  • Casing hanger has straight type seat bore 45degree cone of hanging shoulders with strong loading bolts.



Main Parameters of TR Wellhead Casing Head



Casing Program 20"×133/8" ×95/8" ×7" or 51/2"
Flanged Outlet PFF35/80:R35
PFF70/65:BX153
Load Capacity Mixmum 5000KN
Hanger Specification 4",41/2",5",51/2",7"
Working Pressure 35MPa~70MPa
Performance Requirement Grade PR1
Product Specification Grade PSL1-3
Temperature P·U(-29~121)
Material Class AA~FF



Energy 13 5/8" API 6A 5000 PSI Casing Head Assembly 0



What's the order procedure?
First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr-epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15 days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.



Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
