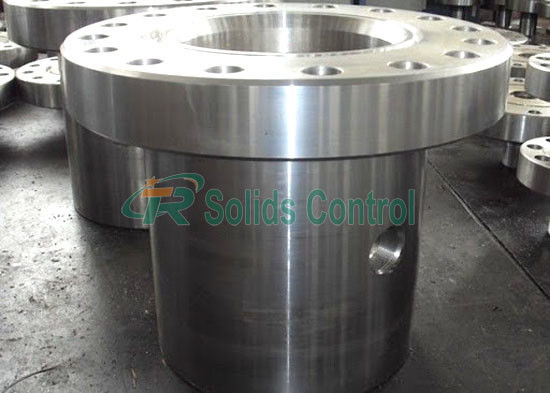

5000KN Flange Connection 5000 Psi Wellhead Casing Head

5000KN Flange Connection 5000 Psi Wellhead Casing Head
5000KN Flange Connection 5000 Psi Wellhead Casing Head 5000KN Flange Connection 5000 Psi Wellhead Casing Head 5000KN Flange Connection 5000 Psi Wellhead Casing Head

Large Image :  5000KN Flange Connection 5000 Psi Wellhead Casing Head

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 6A, ISO 9001
Model Number: TRYGT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80000 Pcs Per Month
Detailed Product Description
Size: 9"-21 1/4" Certificate: API 6A
Service: Perfect After-sale Service Packaging: Wooden Box
Pressure: 5000 Psi Color: Red, White
High Light:

5000 Psi Wellhead Casing Head

,

Flange Connection Wellhead Casing Head

,

5000KN Drill Spare Parts

High Pressure Wellhead Casing Head with Flange Connection



Product Descrption



Casing head is a simple metal flange welded or screwed onto the top of the conductor pipe (also known as drive-pipe) or the casing and forms part of the wellhead system for the well. This is the primary interface for the surface pressure control equipment, for example blowout preventers (for well drilling) or the Christmas tree (for well production).



In addition to providing various types of single-stage casing heads, two-stage casing heads, three-stage casing heads and other products, the company can also design and manufacture four-stage casing heads, as well as slip hangers and threaded (mandrel) type suspensions. Device, integral thread(mandrel) type casing head, etc. Can also design and manufacture various special casing heads according to user needs



Structural Characterstics of Our Wellhead Casing Head



  • Outlet connection can be thread, bolted flange.
  • Bottom connection can be threaded, welded or slip.
  • Optional integral double FS-seal, P-seal and Metal-to-Metal seal bottom preparation for HTHP applications.
  • Top connection are API 6A flanged, and the flanges are provided with locking bolts.
  • Casing hanger has straight type seat bore 45degree cone of hanging shoulders with strong loading bolts.
  • Structural type of the matched casing hanger: slip and mandrel.



Technical Information of TR Wellhead Casing Head



Casing Program 20"×133/8" ×95/8" ×7" or 51/2"
Flanged Outlet PFF35/80:R35
PFF70/65:BX153
Load Capacity Mixmum 5000KN
Hanger Specification 4",41/2",5",51/2",7"
Working Pressure 35MPa~70MPa
Performance Requirement Grade PR1
Product Specification Grade PSL1-3
Temperature P·U(-29~121)
Material Class AA~FF



5000KN Flange Connection 5000 Psi Wellhead Casing Head 0



Xi'an TianRui Petroleum Machinery Equipment Company follows the principle of "quality first, science and technology innovated, people oriented", it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
